Equivalent & Substitute Parts for 9902090CW

Part Overview

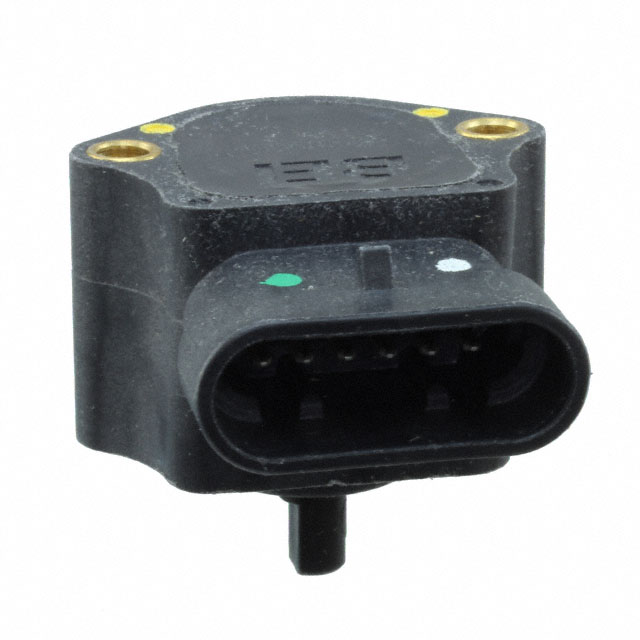

The 9902090CW is a Hall Effect rotary position sensor manufactured by Sensata-BEI Sensors, designed for measuring rotary position with a 90° electrical and mechanical rotation angle. This sensor features a flatted shaft actuator, analog voltage output, and 5V supply operation. The product is currently obsolete, making equivalent substitute parts necessary for ongoing applications and system maintenance.

Substiute Parts

9902090CW

Sensata-BEI SensorsIn Stock: 11299902090CW Datasheet

Current PartRFQ

93620901

Sensata-BEI SensorsIn Stock: 89793620901 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 93620901 qualifies as a direct substitute for the 9902090CW based on the following critical parameters:

• Measurement Function: Both sensors measure rotary position using Hall Effect technology
• Rotation Angle: Both support 90° (±45°) electrical and mechanical rotation angle
• Actuator Type: Both feature flatted shaft actuators
• Mounting Configuration: Both are chassis mount with connector termination
• Output Capability: Both provide analog voltage output (93620901 additionally supports PWM)
• Supply Voltage Compatibility: 93620901 operates at 4.75V ~ 5.25V, which encompasses the 5V requirement of the 9902090CW
• Regulatory Compliance: Both are RoHS compliant and classified under ECCN EAR99

The primary distinction is that 93620901 is an active product from the 9360 series, whereas 9902090CW is obsolete from the 9900 series.

Parameter Comparison

Engineering Selection Recommendations

The 93620901 is the direct substitute for the obsolete 9902090CW. Selection is based on:

• Active Product Status: 93620901 is currently in active production, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: 93620901 meets ROHS3 compliance, representing current regulatory standards
• Functional Equivalence: Both sensors share identical measurement capability, rotation angle specification, and mechanical interface
• Supply Voltage: The 4.75V ~ 5.25V operating range of 93620901 is compatible with 5V supply systems
• Temperature Range Consideration: 93620901 operates to 125°C maximum, compared to 150°C for the original part. Applications requiring operation above 125°C require evaluation of alternative solutions

Frequently Asked Questions (FAQ)

Q: Can 93620901 directly replace 9902090CW in existing applications?

A: Yes, for applications operating within -40°C to 125°C. The 93620901 maintains identical rotation angle specification, flatted shaft actuator, and connector termination. Supply voltage compatibility is confirmed within the 4.75V ~ 5.25V range.

Q: What is the difference in output capability between these sensors?

A: The 9902090CW provides analog voltage output only. The 93620901 provides both analog voltage and PWM output options, offering greater flexibility in signal conditioning and interface requirements.

Q: Are there temperature limitations when substituting?

A: The 93620901 maximum operating temperature is 125°C, whereas the 9902090CW operates to 150°C. Applications requiring sustained operation above 125°C must evaluate alternative sensor solutions.

Q: What packaging differences exist?

A: The 9902090CW is supplied in box packaging with connector. The 93620901 is supplied in bag packaging with connector. Both maintain identical mechanical interface and connector termination style.

Q: Are both sensors RoHS compliant?

A: Yes. The 9902090CW is RoHS Compliant. The 93620901 is ROHS3 Compliant, representing current regulatory standards for electronic components.
