TE Connectivity 969484-1 Rectangular Connector Receptacle Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 969484-1 is a 2-position rectangular connector receptacle housing with a 5.00mm pitch, designed for free-hanging in-line mounting applications. This connector housing accommodates female socket contacts with crimp termination and latch lock fastening. The part is manufactured from Polyamide (PA66) Nylon 6/6 material in natural color and is classified as Active product status with ROHS3 compliance. Substitute parts are necessary when specific color requirements, material specifications, or inventory availability necessitate alternative part selection while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Specification
Manufacturer Part Number	969484-1
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.197" (5.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Product Status	Active
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 969484-1 is determined by strict adherence to the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (2), pitch (5.00mm), number of rows (1), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All substitute parts maintain these core electrical and mechanical specifications.

Substitute parts are grouped into two categories based on material composition and color variation:

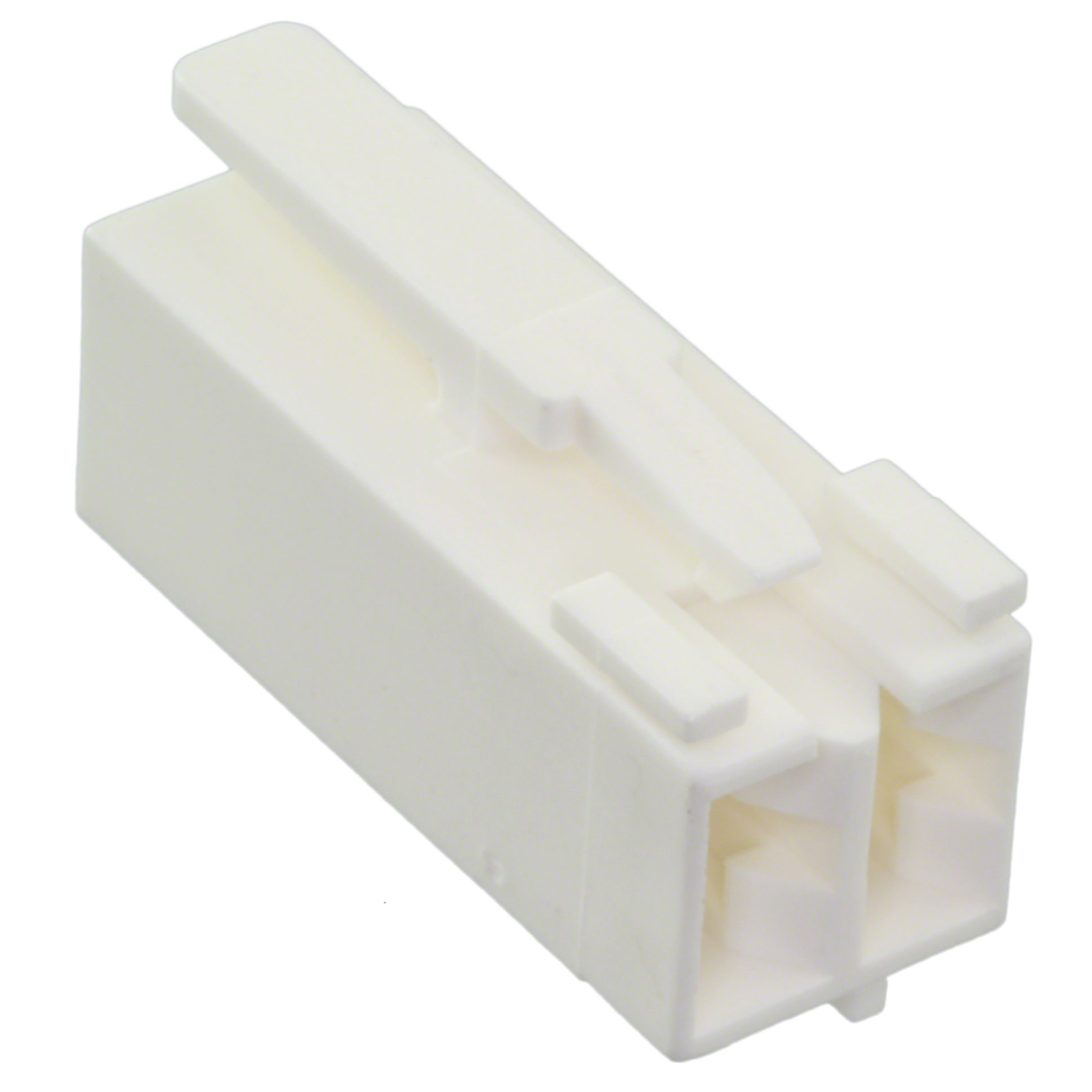

Category 1: Polyamide (PA66) Nylon 6/6 Material Parts 969484-1 and 4-1955422-3 utilize PA66 material. These parts are functionally equivalent with identical mechanical interfaces.

Category 2: Polyamide (PA6) Nylon 6 Material Parts 1241961-3, 6-1241983-2, and 8-1241983-2 utilize PA6 material. These parts are functionally equivalent with identical mechanical interfaces but differ in insulation material composition.

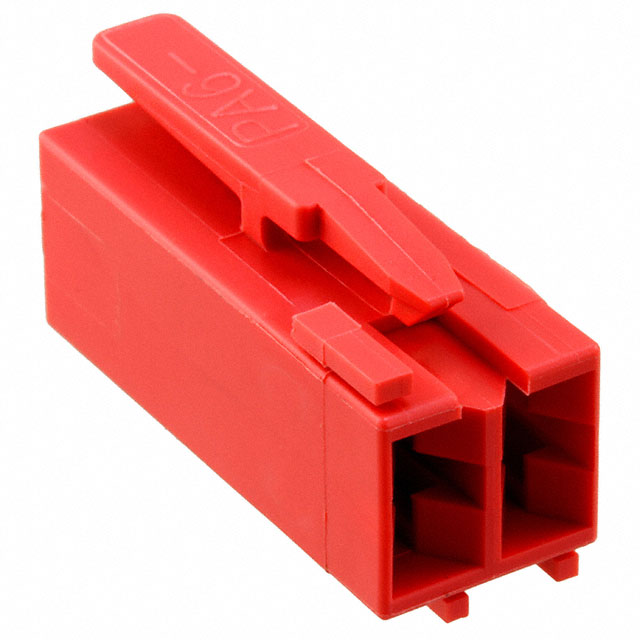

Color Variations The substitute parts are available in three color options: natural (969484-1, 1241961-3, 4-1955422-3), red (6-1241983-2), and black (8-1241983-2). Color selection does not affect electrical or mechanical compatibility.

Parameter Comparison

Parameter	969484-1	1241961-3	4-1955422-3	6-1241983-2	8-1241983-2
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Category	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	2	2	2	2	2
Pitch	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Number of Rows	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA6), Nylon 6	Polyamide (PA66), Nylon 6/6	Polyamide (PA6), Nylon 6	Polyamide (PA6), Nylon 6
Color	Natural	Natural	Natural	Red	Black
Operating Temperature	Not Specified	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Product Status	Active	Active	Active	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99	EAR99	EAR99
HTSUS	8536.69.8000	8536.69.8000	8536.69.8000	8536.69.8000	8536.69.8000

Engineering Selection Recommendations

All substitute parts listed maintain Active product status and comply with RoHS regulations, ensuring long-term availability and environmental compliance. Selection between substitute parts should be based on the following criteria:

Material Specification Requirements If PA66 (Nylon 6/6) material is specified in design documentation, select from parts 969484-1 or 4-1955422-3. If PA6 (Nylon 6) material is acceptable, parts 1241961-3, 6-1241983-2, and 8-1241983-2 are suitable alternatives.

Color Requirements Natural color applications support parts 969484-1, 1241961-3, and 4-1955422-3. Red color applications require part 6-1241983-2. Black color applications require part 8-1241983-2.

Operating Temperature Specification Part 969484-1 does not specify operating temperature range. Parts 1241961-3, 4-1955422-3, 6-1241983-2, and 8-1241983-2 specify -40°C to 105°C operating temperature range. For applications requiring documented temperature specifications, select from the latter group.

Compliance and Regulatory Status All parts maintain ROHS3 compliance or RoHS compliance status. Part 8-1241983-2 carries RoHS Compliant designation while others carry ROHS3 Compliant designation. Both designations satisfy current regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can part 1241961-3 be used as a direct replacement for 969484-1? A: Part 1241961-3 is electrically and mechanically compatible with 969484-1. Both parts share identical connector type, contact type, position count, pitch, mounting type, termination method, and fastening type. The primary difference is insulation material composition (PA6 versus PA66) and documented operating temperature range. Substitution is valid when material specifications do not restrict PA6 usage.

Q: What is the difference between the natural, red, and black color variants? A: Color variants (969484-1 natural, 6-1241983-2 red, 8-1241983-2 black) are functionally identical in electrical and mechanical performance. Color selection is determined by application requirements, assembly identification, or circuit board color coding standards. All color variants maintain identical connector specifications and compatibility.

Q: Are all substitute parts suitable for the same temperature range? A: Part 969484-1 does not specify an operating temperature range in available documentation. Parts 1241961-3, 4-1955422-3, 6-1241983-2, and 8-1241983-2 specify -40°C to 105°C operating temperature range. For applications requiring documented temperature specifications, select from the latter group.

Q: What is the significance of PA66 versus PA6 material selection? A: PA66 (Nylon 6/6) and PA6 (Nylon 6) are both polyamide materials suitable for connector housing applications. PA66 offers slightly different mechanical and thermal properties compared to PA6. Material selection should follow design specifications. Parts 969484-1 and 4-1955422-3 use PA66, while parts 1241961-3, 6-1241983-2, and 8-1241983-2 use PA6.

Q: Do all substitute parts include contacts? A: All parts listed are connector housings only. Contacts are not included with any part. Contact selection and procurement must be performed separately based on application requirements.

Q: Are all substitute parts RoHS compliant? A: All substitute parts comply with RoHS regulations. Parts 969484-1, 1241961-3, 4-1955422-3, and 6-1241983-2 carry ROHS3 Compliant designation. Part 8-1241983-2 carries RoHS Compliant designation. Both designations satisfy current regulatory requirements.

Q: What is the Moisture Sensitivity Level (MSL) for these parts? A: All parts carry MSL rating of 1 (Unlimited), indicating unlimited shelf life without moisture control requirements during storage and handling.
