3M 963222-2000-AR-TP Equivalent & Substitute Parts
Part Overview
The 3M 963222-2000-AR-TP is a 22-position rectangular receptacle connector with 0.100" (2.54mm) pitch, designed for surface mount board-to-board applications. This connector features gold-plated mating contacts, push-pull fastening, and operates across -25°C to 105°C. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 963222-2000-AR-TP |
| Manufacturer | 3M |
| Category | Rectangular Connectors |
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 22 |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Contact Type | Female Socket |
| Contact Finish - Mating | Gold |
| Fastening Type | Push-Pull |
| Operating Temperature | -25°C ~ 105°C |
| Current Rating | 2A |
| Voltage Rating | 1000VDC |
| Material Flammability Rating | UL94 V-0 |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution for the 3M 963222-2000-AR-TP is determined by the following critical parameters:
Core Compatibility Parameters:
- Connector type: Receptacle, Bottom or Top Entry
- Number of positions: 22
- Pitch - Mating: 0.100" (2.54mm)
- Number of rows: 2
- Row spacing - Mating: 0.100" (2.54mm)
- Mounting type: Surface Mount
- Contact type: Female Socket
- Fastening type: Push-Pull
- Material flammability rating: UL94 V-0
Contact Finish Variants: Substitute parts are grouped by mating contact finish (Gold or Tin), as this parameter affects electrical performance and application requirements. Gold-plated variants maintain compatibility with the original specification, while tin-plated variants provide cost-effective alternatives for applications where gold plating is not required.
Connector Type Variants: Amphenol ICC (FCI) Dubox™ series parts are classified as receptacles with active product status. Sullins Connector Solutions parts are classified as headers but maintain identical pitch, position count, and mounting characteristics, offering functional equivalence for board-to-board applications.
Parameter Comparison
| Parameter | 3M 963222-2000-AR-TP | Amphenol 89898-311ALF / 89898-311BLF / 89898-311LF | Amphenol 89898-411ALF / 89898-411LF | Amphenol 91618-311LF | Amphenol 91618-411LF | Sullins NPPC112KFMP-RC / NPPC112KFMS-RC | Sullins NPTC112KFMP-RC |
|---|---|---|---|---|---|---|---|
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Header | Header |
| Number of Positions | 22 | 22 | 22 | 22 | 22 | 22 | 22 |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Tin | Gold | Tin | Gold | Tin |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active |
| Insulation Height | 0.292" (7.41mm) | 0.275" (6.99mm) | 0.275" (6.99mm) | 0.275" (6.99mm) | 0.275" (6.99mm) | 0.299" (7.60mm) | 0.299" (7.60mm) |
| Mated Stacking Heights | Not specified | 10.81mm | 10.81mm | 10.81mm | 10.81mm | Not specified | Not specified |
Engineering Selection Recommendations
Amphenol ICC (FCI) Dubox™ Series (89898 and 91618 Base Numbers)

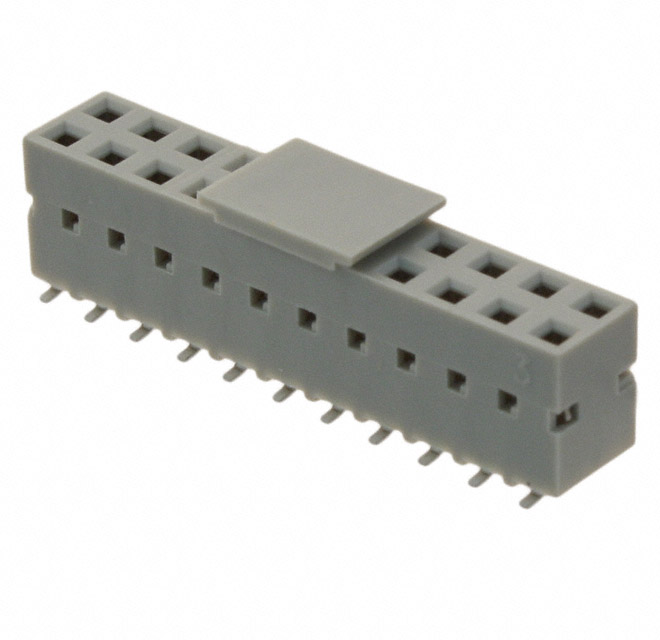

The Amphenol ICC (FCI) Dubox™ series provides direct functional equivalence to the 3M 963222-2000-AR-TP. All variants maintain identical pitch, position count, row configuration, and push-pull fastening. These parts carry active product status and are RoHS Compliant with REACH Affected designation.
Gold-plated variants (89898-311ALF, 89898-311BLF, 89898-311LF, 91618-311LF) directly match the original contact finish specification. Tin-plated variants (89898-411ALF, 89898-411LF, 91618-411LF) provide electrical equivalence with alternative contact finish for cost optimization.
The 91618 series includes Board Lock features, offering enhanced mechanical retention compared to standard push-pull fastening.
Packaging options include Tape & Reel (TR), Tube, and Box configurations to accommodate different manufacturing and inventory requirements.
Sullins Connector Solutions Header Series (NPPC112 and NPTC112 Base Numbers)
Sullins Connector Solutions parts function as headers rather than receptacles but maintain identical pitch, position count, row spacing, and surface mount characteristics. These parts carry active product status and are ROHS3 Compliant with REACH Unaffected designation.
Gold-plated variants (NPPC112KFMP-RC, NPPC112KFMS-RC) and tin-plated variant (NPTC112KFMP-RC) provide board-to-board connectivity equivalent to the original specification. Operating temperature range extends to -40°C ~ 125°C, exceeding the original -25°C ~ 105°C specification. Current rating is 3A, exceeding the original 2A specification.
Frequently Asked Questions (FAQ)
Q: Can Amphenol ICC (FCI) Dubox™ receptacles directly replace the 3M 963222-2000-AR-TP?
A: Yes. The Amphenol ICC (FCI) Dubox™ series maintains identical pitch (0.100"), position count (22), row configuration (2 rows), and push-pull fastening. Gold-plated variants (89898-311 and 91618-311 series) match the original contact finish specification. All variants are UL94 V-0 rated and carry active product status.
Q: What is the difference between gold-plated and tin-plated contact finishes?
A: Contact finish affects electrical performance and application requirements. Gold-plated variants (contact finish - mating: Gold) maintain direct compatibility with the original specification. Tin-plated variants (contact finish - mating: Tin) provide cost-effective alternatives where gold plating is not required. Both finishes are UL94 V-0 rated.
Q: Can Sullins Connector Solutions header connectors replace the 3M receptacle?
A: Sullins parts function as headers rather than receptacles but maintain identical pitch, position count, row spacing, and surface mount characteristics. These parts provide functional equivalence for board-to-board applications. Operating temperature range (-40°C ~ 125°C) and current rating (3A) exceed the original specifications.
Q: What packaging options are available?
A: Amphenol ICC (FCI) Dubox™ series offers Tape & Reel (TR), Tube, and Box packaging. Sullins Connector Solutions parts are supplied in Tube packaging. Selection depends on manufacturing process requirements and inventory management.
Q: Are substitute parts RoHS compliant?
A: Amphenol ICC (FCI) Dubox™ series parts are RoHS Compliant. Sullins Connector Solutions parts are ROHS3 Compliant. Both meet current regulatory requirements for lead-free manufacturing.
Q: What is the difference between 89898 and 91618 Amphenol series?
A: The 91618 series includes Board Lock features for enhanced mechanical retention. The 89898 series uses standard push-pull fastening. Both series maintain identical pitch, position count, and electrical specifications.
