3M 963214-2000-AR-TP Equivalent & Substitute Parts
Part Overview
The 3M 963214-2000-AR-TP is a 14-position rectangular connector receptacle with 0.100" (2.54mm) pitch, designed for surface mount applications with gold-plated contacts. This connector is classified as obsolete, making substitute parts necessary for ongoing production and maintenance applications. The part operates across a temperature range of -25°C to 105°C with a current rating of 2A per contact and 1000VDC voltage rating.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 963214-2000-AR-TP |
| Manufacturer | 3M |
| Category | Rectangular Connectors |
| Number of Positions | 14 |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Operating Temperature | -25°C ~ 105°C |
| Current Rating | 2A |
| Voltage Rating | 1000VDC |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitute parts for the 3M 963214-2000-AR-TP are selected from the Samtec Tiger Claw™ SSM series based on the following critical parameters:
Core Compatibility Parameters:
- 14-position receptacle configuration
- 0.100" (2.54mm) pitch and row spacing
- Female socket contact type
- Surface mount termination with solder
- Push-pull fastening mechanism
- Gold-plated mating contacts
- Black insulation color
- Square contact shape

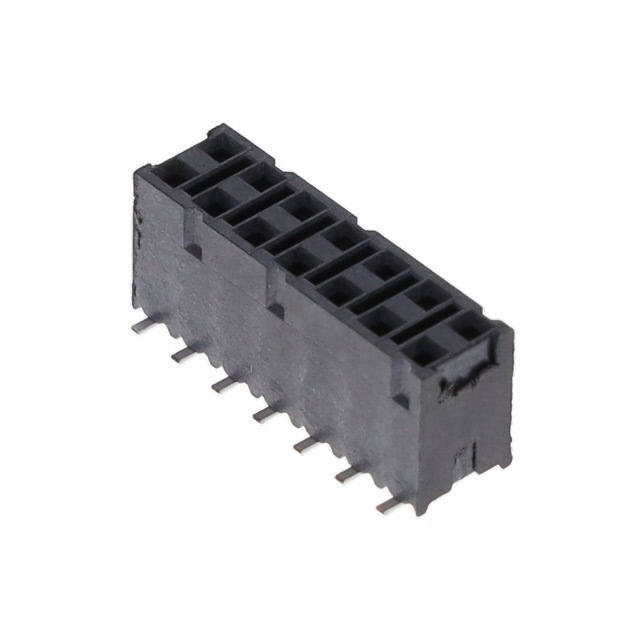

Substitution Variants: The SSM-107 series offers multiple configurations addressing different application requirements. Variants differ in connector entry type (pass-through vs. bottom entry), position loading (all 14 positions vs. 13 positions), and packaging format (tube, tape & reel, or bulk). All substitute parts maintain electrical compatibility through matching pitch, contact configuration, and termination method.
Parameter Comparison
| Parameter | 3M 963214-2000-AR-TP | Samtec SSM-107-F-DV | Samtec SSM-107-F-DV-A-K-TR | Samtec SSM-107-F-DV-BE-P |
|---|---|---|---|---|
| Number of Positions | 14 | 14 | 14 | 14 |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Insulation Color | Black | Black | Black | Black |
| Insulation Height | 0.292" (7.41mm) | 0.290" (7.37mm) | 0.290" (7.37mm) | 0.290" (7.37mm) |
| Operating Temperature | -25°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Current Rating | 2A | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact |
| Voltage Rating | 1000VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC |
| Product Status | Obsolete | Active | Active | Active |
| RoHS Status | Not specified | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
Engineering Selection Recommendations
Product Status Consideration: The 3M 963214-2000-AR-TP is obsolete, requiring transition to active production parts. All Samtec SSM-107 series substitutes maintain active product status with ongoing manufacturer support and availability.
Compliance and Certification: All Samtec SSM-107 substitute parts are ROHS3 compliant, meeting current regulatory requirements for electronic components. The original 3M part does not specify RoHS compliance status.
Electrical Performance: Samtec SSM-107 substitutes exceed the original part's electrical specifications. The substitute parts provide 5.2A per contact current rating compared to 2A for the original part, and operate across an extended temperature range of -55°C to 125°C versus -25°C to 105°C. Voltage ratings differ: substitutes are rated for 405VAC and 572VDC, while the original part is rated for 1000VDC. Applications requiring the original 1000VDC rating require evaluation of alternative substitute options.
Connector Entry Type Selection:
- Pass-Through Configuration (SSM-107-F-DV series): Suitable for board-to-board or cable applications with flexible entry orientation
- Bottom Entry Configuration (SSM-107-F-DV-BE-P): Matches the original part's bottom or top entry design for direct mechanical replacement
Position Loading:
- All Positions Loaded: SSM-107-F-DV, SSM-107-F-DV-A, SSM-107-F-DV-A-K, SSM-107-F-DV-A-K-TR, SSM-107-F-DV-A-P-TR, SSM-107-F-DV-BE-P
- 13 Positions Loaded: SSM-107-F-DV-004-K-TR, SSM-107-F-DV-006, SSM-107-F-DV-006-K-TR, SSM-107-F-DV-011
Packaging Format:
- Tube: Standard packaging for manual assembly
- Tape & Reel (TR): Optimized for automated pick-and-place assembly
- Bulk: Available for specific configurations
Frequently Asked Questions (FAQ)
Q: Can Samtec SSM-107 series parts directly replace the 3M 963214-2000-AR-TP?
A: Samtec SSM-107 series parts are electrically and mechanically compatible for applications within the substitute part's voltage and current ratings. The 14-position configuration, 0.100" pitch, female socket contacts, surface mount termination, and push-pull fastening are identical. Mechanical fit requires verification of insulation height tolerance (0.290" vs. 0.292") and connector entry type compatibility with your application.
Q: What is the difference between pass-through and bottom entry configurations?
A: Pass-through connectors (SSM-107-F-DV series) accommodate flexible mating orientations for board-to-board or cable applications. Bottom entry connectors (SSM-107-F-DV-BE-P) provide directional mating from the bottom side, matching the original part's mechanical design for direct replacement in existing PCB layouts.
Q: Why do substitute parts have lower voltage ratings than the original?
A: The original 3M part is rated for 1000VDC, while Samtec SSM-107 substitutes are rated for 405VAC and 572VDC. Applications requiring 1000VDC operation must evaluate alternative substitute options or confirm that the lower voltage rating is acceptable for the intended application.
Q: What does "positions loaded" mean?
A: Position loading refers to the number of contact positions populated in the connector. "All" indicates all 14 positions are loaded with contacts. "13" indicates one position is unpopulated. Select based on your application's contact requirements.
Q: Which packaging format should I select?
A: Tube packaging is suitable for manual assembly and lower-volume applications. Tape & Reel (TR) packaging is optimized for automated pick-and-place assembly equipment and higher-volume production. Bulk packaging is available for specific part numbers.
Q: Are all substitute parts RoHS compliant?
A: Yes, all Samtec SSM-107 series substitute parts are ROHS3 compliant. The original 3M part does not specify RoHS compliance status.
Q: What is the moisture sensitivity level for these connectors?
A: Both the original 3M part and all Samtec SSM-107 substitutes have a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life without moisture control requirements.
