3M 963206-2000-AR-TP Rectangular Connector Equivalent & Substitute Parts
Part Overview
The 3M 963206-2000-AR-TP is a 6-position receptacle connector with 0.100" (2.54mm) pitch, designed for surface mount board-to-board applications with bottom or top entry configuration. This connector features gold-plated mating contacts, push-pull fastening, and operates across -25°C to 105°C. The product is classified as obsolete, necessitating identification of active equivalent and substitute parts that maintain electrical and mechanical compatibility for new designs and production continuity.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 6 |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold or Tin |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 2A (3M); 5.2A per Contact (Samtec) |
| Voltage Rating | 1000VDC (3M); 405VAC / 572VDC (Samtec) |
| Operating Temperature | -25°C ~ 105°C (3M); -55°C ~ 125°C (Samtec) |
| Moisture Sensitivity Level | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitute parts are grouped based on strict electrical and mechanical compatibility criteria derived from the provided parameters:
Primary Substitution Criteria:
- 6-position receptacle configuration with 0.100" (2.54mm) pitch
- 2-row layout with 0.100" (2.54mm) row spacing
- Surface mount solder termination
- Push-pull fastening mechanism
- Female socket contact type
- UL94 V-0 flammability rating
- Moisture Sensitivity Level 1
Contact Finish Variants: Substitutes are available in gold-plated (89898-303ALF, 89898-303LF, SSM-103-F-DV, SSM-103-F-DV-BE, SSM-103-F-DV-BE-K-TR, SSM-103-F-DV-BE-LC-P-TR) and tin-plated (89898-403ALF, 89898-403LF, 95242-403BLF, 95242-403LF) configurations. Contact finish selection depends on application requirements and PCB design specifications.
Connector Entry Configuration:
- Bottom or Top Entry: 3M 963206-2000-AR-TP, Amphenol ICC 89898 series
- Bottom Entry: Samtec SSM-103-F-DV-BE variants
- Pass Through: Samtec SSM-103-F-DV
Packaging Options: Substitutes are available in Tape & Reel (TR), Box, and Tube packaging to accommodate different manufacturing and assembly workflows.
Parameter Comparison
| Manufacturer | Part Number | Positions | Pitch (mm) | Contact Finish | Entry Type | Packaging | Product Status | Current Rating | Voltage Rating | Operating Temp |
|---|---|---|---|---|---|---|---|---|---|---|
| 3M | 963206-2000-AR-TP | 6 | 2.54 | Gold | Bottom/Top | - | Obsolete | 2A | 1000VDC | -25°C ~ 105°C |
| Amphenol ICC (FCI) | 89898-303ALF | 6 | 2.54 | Gold | Bottom/Top | Tape & Reel | Active | - | - | - |
| Amphenol ICC (FCI) | 89898-303LF | 6 | 2.54 | Gold | Bottom/Top | Box | Active | - | - | - |
| Amphenol ICC (FCI) | 89898-403ALF | 6 | 2.54 | Tin | Bottom/Top | Tape & Reel | Active | - | - | - |
| Amphenol ICC (FCI) | 89898-403LF | 6 | 2.54 | Tin | Bottom/Top | Tube | Active | - | - | - |
| Amphenol ICC (FCI) | 95242-403BLF | 6 | 2.54 | Tin | Bottom/Top | Tube | Active | - | - | - |
| Amphenol ICC (FCI) | 95242-403LF | 6 | 2.54 | Tin | Bottom/Top | Tube | Active | - | - | - |

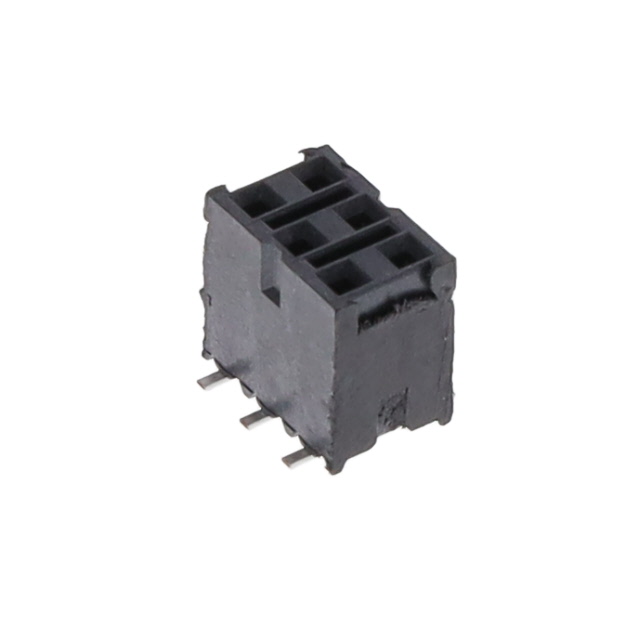

| Samtec Inc. | SSM-103-F-DV | 6 | 2.54 | Gold | Pass Through | Tube | Active | 5.2A per Contact | 405VAC / 572VDC | -55°C ~ 125°C |
| Samtec Inc. | SSM-103-F-DV-BE | 6 | 2.54 | Gold | Bottom Entry | Tube | Active | 5.2A per Contact | 405VAC / 572VDC | -55°C ~ 125°C |
| Samtec Inc. | SSM-103-F-DV-BE-K-TR | 6 | 2.54 | Gold | Bottom Entry | Tape & Reel | Active | 5.2A per Contact | 405VAC / 572VDC | -55°C ~ 125°C |
| Samtec Inc. | SSM-103-F-DV-BE-LC-P-TR | 6 | 2.54 | Gold | Bottom Entry | Tape & Reel | Active | 5.2A per Contact | 405VAC / 572VDC | -55°C ~ 125°C |
Engineering Selection Recommendations
For Direct Replacement (Gold Contact Finish): Select Amphenol ICC 89898-303ALF or 89898-303LF for direct electrical and mechanical compatibility with the 3M 963206-2000-AR-TP. Both parts maintain the 6-position, 0.100" pitch configuration with gold-plated mating contacts and push-pull fastening. The 89898-303ALF in Tape & Reel packaging is recommended for automated assembly environments, while 89898-303LF in Box packaging suits lower-volume applications. Both are active products with RoHS compliance and REACH compliance status.
For Enhanced Performance Requirements: Samtec SSM-103-F-DV-BE-K-TR or SSM-103-F-DV-BE-LC-P-TR offer higher current ratings (5.2A per contact versus 2A) and extended operating temperature range (-55°C to 125°C versus -25°C to 105°C). These parts feature Liquid Crystal Polymer (LCP) insulation material and are available in Tape & Reel packaging with Pick and Place features. SSM-103-F-DV-BE-LC-P-TR includes board lock functionality for additional mechanical retention.
For Cost-Optimized Designs: Amphenol ICC 89898-403ALF, 89898-403LF, 95242-403BLF, or 95242-403LF provide tin-plated contact finish alternatives. These parts maintain the same 6-position, 0.100" pitch configuration and are active products with RoHS compliance. Selection between these variants depends on packaging requirements (Tape & Reel versus Tube) and insulation color preference (Gray versus Black).
Compliance Considerations: All substitute parts meet UL94 V-0 flammability requirements and maintain Moisture Sensitivity Level 1 (Unlimited). Samtec parts carry ROHS3 compliance and REACH Unaffected status. Amphenol ICC parts are RoHS Compliant and REACH Affected. Verify compliance requirements for your specific application before final selection.
Frequently Asked Questions (FAQ)
Q: Can I use Samtec SSM-103 series connectors as direct replacements for the 3M 963206-2000-AR-TP?
A: Samtec SSM-103 series connectors share the same 6-position, 0.100" (2.54mm) pitch configuration and push-pull fastening mechanism. However, entry type differs: the 3M part supports bottom or top entry, while Samtec SSM-103-F-DV offers pass-through entry and SSM-103-F-DV-BE variants provide bottom entry only. Verify PCB layout compatibility before substitution. Samtec parts offer higher current ratings (5.2A per contact) and extended temperature range (-55°C to 125°C).
Q: What is the difference between gold and tin contact finishes?
A: Contact finish affects electrical performance and environmental resistance. Gold-plated contacts (3M 963206-2000-AR-TP, Amphenol 89898-303 series, Samtec SSM-103-F-DV variants) provide superior corrosion resistance and lower contact resistance. Tin-plated contacts (Amphenol 89898-403 series, 95242-403 series) are cost-effective alternatives suitable for controlled environments. Selection depends on application requirements, environmental exposure, and cost constraints.
Q: Which packaging option should I select for high-volume production?
A: Tape & Reel (TR) packaging is optimized for automated pick-and-place assembly. Amphenol ICC 89898-303ALF and 89898-403ALF, and Samtec SSM-103-F-DV-BE-K-TR and SSM-103-F-DV-BE-LC-P-TR are available in Tape & Reel format with Pick and Place features. Box and Tube packaging suit lower-volume or manual assembly workflows.
Q: Are there insulation color options available?
A: Yes. The 3M 963206-2000-AR-TP features black insulation. Amphenol ICC Dubox™ series (89898 and 95242) offer gray insulation (89898 series) or black insulation (95242 series). Samtec SSM-103 series provides black insulation. Insulation color does not affect electrical performance but may be relevant for visual identification or design aesthetics.
Q: What are the key differences between Amphenol ICC 89898 and 95242 series?
A: Both series are Dubox™ rectangular connectors with identical electrical specifications (6-position, 0.100" pitch, push-pull fastening). The primary difference is insulation color: 89898 series features gray insulation, while 95242 series features black insulation. Both are active products with RoHS compliance and equivalent performance characteristics.
Q: Do all substitute parts meet the same voltage and current ratings as the original 3M part?
A: No. The 3M 963206-2000-AR-TP is rated for 2A current and 1000VDC voltage. Amphenol ICC 89898 and 95242 series do not specify current or voltage ratings in the provided data. Samtec SSM-103 series is rated for 5.2A per contact and 405VAC / 572VDC. Verify electrical ratings for your specific application requirements before substitution.
Q: What is the operating temperature range for each substitute option?
A: The 3M 963206-2000-AR-TP operates from -25°C to 105°C. Amphenol ICC 89898 and 95242 series do not specify operating temperature in the provided data. Samtec SSM-103 series operates from -55°C to 125°C, providing extended temperature capability for demanding environments.
