3M 963110-2000-AR-TP Equivalent & Substitute Parts
Part Overview
The 3M 963110-2000-AR-TP is a 10-position rectangular connector receptacle with 0.100" (2.54mm) pitch, surface mount termination, and gold-plated mating contacts. This connector is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The part operates across -25°C to 105°C with a 2A current rating and 1000VDC voltage rating. Samtec Inc. Tiger Claw™ SSM series connectors provide direct functional equivalents with enhanced electrical performance and active product status.
Substiute Parts
Key Parameters
| Parameter | 3M 963110-2000-AR-TP |
|---|---|
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 10 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Type | Female Socket |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Finish - Mating | Gold |
| Current Rating | 2A |
| Voltage Rating | 1000VDC |
| Operating Temperature | -25°C ~ 105°C |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Samtec SSM-110 series receptacles serve as direct substitutes for the 3M 963110-2000-AR-TP based on the following matching parameters:
- 10-position configuration with 0.100" (2.54mm) mating pitch
- Female socket contact type with gold-plated mating surface
- Surface mount solder termination
- Push-pull fastening mechanism
- Black thermoplastic insulation body
- Square contact geometry with copper alloy base material
Substitution variants are differentiated by connector entry type (pass-through, bottom entry), packaging format (tube, tape & reel, bulk), and optional features (board lock, pick and place capability). All Samtec SSM-110 variants maintain electrical compatibility through equivalent contact materials and superior current ratings (5.2A per contact versus 2A).
Parameter Comparison
| Parameter | 3M 963110-2000-AR-TP | SSM-110-F-SV | SSM-110-F-SV-BE | SSM-110-F-SV-BE-K-TR | SSM-110-F-SV-K-TR | SSM-110-F-SV-LC | SSM-110-F-SV-LC-P-TR | SSM-110-F-SV-P | SSM-110-F-SV-P-TR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | 3M | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| Number of Positions | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle, Pass Through | Receptacle, Bottom Entry | Receptacle, Bottom Entry | Receptacle, Pass Through | Receptacle, Pass Through | Receptacle, Pass Through | Receptacle, Pass Through | Receptacle, Pass Through |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 3.00µin (0.076µm) |
| Current Rating | 2A | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact | 5.2A per Contact |
| Voltage Rating | 1000VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC | 405VAC, 572VDC |
| Operating Temperature | -25°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insulation Material | Thermoplastic | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active |
| RoHS Status | Not specified | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
Engineering Selection Recommendations
All Samtec SSM-110 series variants are active products with ROHS3 compliance, providing long-term supply assurance compared to the obsolete 3M 963110-2000-AR-TP. Selection among substitute options depends on application-specific requirements:
For bottom entry applications matching the original connector orientation, SSM-110-F-SV-BE or SSM-110-F-SV-BE-K-TR are appropriate selections. The tape & reel variant (K-TR suffix) includes pick and place features for automated assembly.

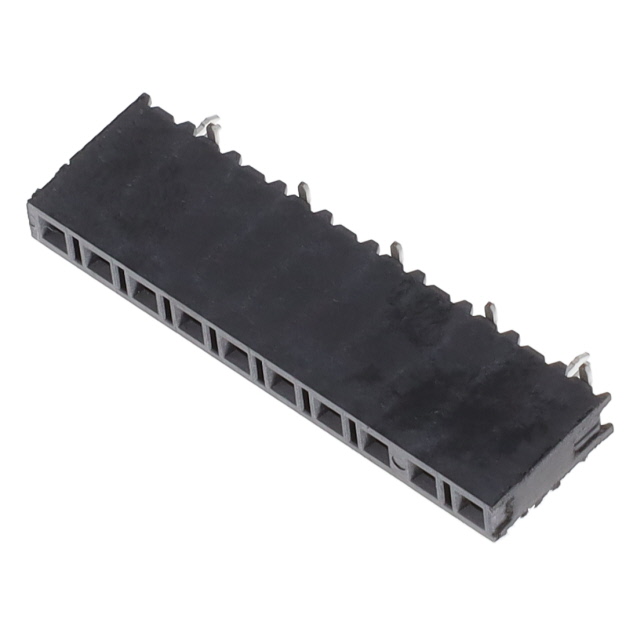

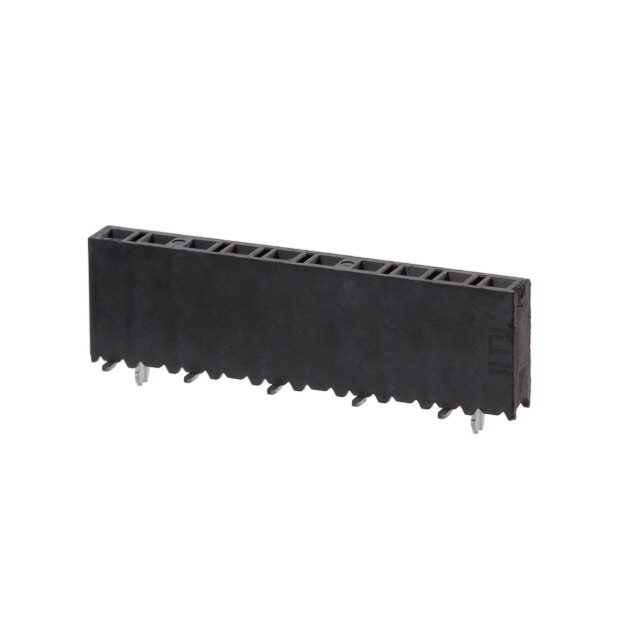

For pass-through applications, SSM-110-F-SV, SSM-110-F-SV-K-TR, SSM-110-F-SV-P, and SSM-110-F-SV-P-TR provide standard configurations. Variants with board lock features (LC suffix) offer mechanical retention enhancement. Tape & reel packaging (TR suffix) supports automated production workflows.
All Samtec substitutes exceed the original part's electrical specifications with 5.2A per contact current rating and extended operating temperature range (-55°C to 125°C). Voltage rating differences (572VDC maximum versus 1000VDC) require application verification for high-voltage circuits.
Frequently Asked Questions (FAQ)
Q: Can SSM-110 series connectors directly replace the 3M 963110-2000-AR-TP in existing designs?
A: Yes, for applications operating within 572VDC and -55°C to 125°C limits. The 10-position, 0.100" pitch, female socket configuration, surface mount termination, and gold-plated contacts are functionally equivalent. PCB footprint compatibility requires verification against original design documentation.
Q: What is the difference between pass-through and bottom entry connector types?
A: Pass-through connectors allow signal routing through the connector body to the opposite side of the PCB. Bottom entry connectors restrict mating to the bottom surface only. Selection depends on PCB layout and signal routing requirements.
Q: How do packaging options (Tube, Tape & Reel, Bulk) affect part selection?
A: Tube packaging suits manual assembly and low-volume applications. Tape & Reel (TR) packaging is required for automated pick-and-place assembly. Bulk packaging is used for high-volume manual operations. Electrical and mechanical specifications remain identical across packaging formats.
Q: What does the board lock feature (LC suffix) provide?
A: Board lock features mechanically secure the connector to the PCB, preventing accidental disconnection during handling or vibration. This is optional and not present in the original 3M part.
Q: Are all SSM-110 variants ROHS3 compliant?
A: Yes, all listed Samtec SSM-110 variants are ROHS3 compliant, meeting current environmental and regulatory requirements for electronics manufacturing.
Q: What is the significance of the contact finish thickness difference?
A: The original 3M part specifies flash gold plating, while Samtec variants specify 3.00µin (0.076µm) thickness. Both provide adequate corrosion protection and electrical conductivity for the specified current and voltage ratings.
