TE Connectivity AMP Connectors 962191-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 962191-2 is an 8-position rectangular connector receptacle housing with a 6.00mm pitch, designed for free-hanging in-line mounting applications. This component belongs to the Junior Power Timer series and features a brown polyamide (PA66) nylon 6/6 insulation material with crimp contact termination and latch lock fastening. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating (MSL 1). Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design alternatives where color, insulation material, or series variations are acceptable within application requirements.

Key Parameters

Parameter	Value
Manufacturer Part Number	962191-2
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.236" (6.00mm)
Number of Rows	2
Row Spacing	0.197" (5.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Brown
Insulation Material	Polyamide (PA66), Nylon 6/6
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 962191-2 are determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (8), pitch (6.00mm), number of rows (2), row spacing (5.00mm), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All substitute parts maintain these core electrical and mechanical specifications.

Variations among substitute parts are limited to the following non-critical parameters:

Color: Brown, Gray, or Natural Insulation Material: Polyamide (PA66) Nylon 6/6, Polyamide (PA) Nylon, or Polybutylene Terephthalate (PBT) Series Designation: Junior Power Timer or Junior Timer RoHS Status: RoHS Compliant or ROHS3 Compliant Operating Temperature: Specified (-40°C ~ 85°C) or unspecified Packaging: Bulk or not specified

All substitute parts are manufactured by TE Connectivity AMP Connectors, maintain MSL 1 rating, REACH Unaffected status, and EAR99 ECCN classification. Contacts are not included with any housing variant.

Parameter Comparison

Manufacturer Part Number	Series	Color	Insulation Material	Number of Positions	Pitch (mm)	Number of Rows	Row Spacing (mm)	Mounting Type	Contact Termination	Fastening Type	RoHS Status	Operating Temperature	Inventory (Pcs)
962191-2	Junior Power Timer	Brown	Polyamide (PA66), Nylon 6/6	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	RoHS Compliant	Not Specified	944
144172-4	Junior Power Timer	Natural	Polyamide (PA), Nylon, Glass Filled	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	-40°C ~ 85°C	4226

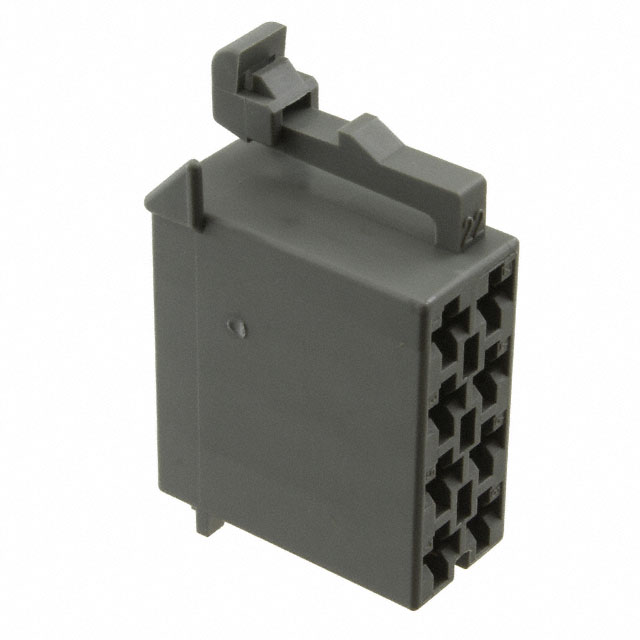

962189-1	Junior Power Timer	Gray	Polyamide (PA66), Nylon 6/6	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	Not Specified	2096
963120-1	Junior Timer	Gray	Polybutylene Terephthalate (PBT)	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	Not Specified	1263
963121-1	Junior Timer	Brown	Polyamide (PA66), Nylon 6/6	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	Not Specified	1495
964408-1	Junior Timer	Gray	Polyamide (PA), Nylon	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	Not Specified	1968
964409-1	Junior Timer	Brown	Polyamide (PA66), Nylon 6/6	8	6.00	2	5.00	Free Hanging (In-Line)	Crimp	Latch Lock	ROHS3 Compliant	Not Specified	2016

Engineering Selection Recommendations

All substitute parts listed maintain full electrical and mechanical compatibility with the 962191-2 across the critical connector interface parameters. Selection among substitute parts should be based on the following engineering criteria:

RoHS Compliance Requirements: The main part 962191-2 carries RoHS Compliant status. All substitute parts carry ROHS3 Compliant status, which represents an enhanced compliance standard. ROHS3 Compliant parts are suitable for applications requiring RoHS Compliant components.

Operating Temperature Specification: The main part 962191-2 does not specify an operating temperature range. Part 144172-4 specifies -40°C ~ 85°C operating temperature. When thermal performance documentation is required, 144172-4 provides explicit temperature rating. All other substitute parts do not specify operating temperature.

Series Designation: The main part belongs to the Junior Power Timer series. Parts 144172-4 and 962189-1 also belong to the Junior Power Timer series, maintaining exact series alignment. Parts 963120-1, 963121-1, 964408-1, and 964409-1 belong to the Junior Timer series, which represents a related but distinct product line within the same connector family.

Insulation Material Variants: The main part uses Polyamide (PA66) Nylon 6/6. Substitute parts offer three insulation material options: Polyamide (PA66) Nylon 6/6 (963121-1, 964409-1), Polyamide (PA) Nylon variants (144172-4 with glass fill, 964408-1 without), and Polybutylene Terephthalate (963120-1). Material selection should align with application environmental and mechanical requirements.

Color Selection: Brown (main part, 963121-1, 964409-1), Gray (962189-1, 963120-1, 964408-1), or Natural (144172-4) options are available. Color selection is typically driven by application identification or assembly documentation requirements.

Inventory Availability: Part 144172-4 offers the highest inventory level (4226 pcs), followed by 962189-1 (2096 pcs) and 964409-1 (2016 pcs). The main part 962191-2 maintains 944 pcs in stock.

Frequently Asked Questions (FAQ)

Q: Can I substitute 962191-2 with any of the listed parts without affecting connector mating?

A: Yes. All substitute parts maintain identical connector interface specifications: 8 positions, 6.00mm pitch, 2 rows with 5.00mm row spacing, female socket contacts, crimp termination, and latch lock fastening. Physical mating with corresponding plug connectors is not affected by color, insulation material, or series designation variations.

Q: What is the difference between Junior Power Timer and Junior Timer series parts?

A: Both series share identical electrical and mechanical connector specifications for the 8-position 6.00mm pitch housing. The series designation reflects product line organization within TE Connectivity's portfolio. Selection between series should follow application documentation or design specifications. No functional difference exists in connector interface performance.

Q: Does the insulation material affect connector performance?

A: Insulation material variations (Polyamide PA66, Polyamide PA, Polybutylene Terephthalate) do not affect the electrical connector interface. Material selection impacts mechanical durability, chemical resistance, and thermal properties of the housing. Application environmental conditions should guide material selection.

Q: Is 144172-4 with specified operating temperature -40°C ~ 85°C suitable for all applications?

A: Part 144172-4 provides explicit operating temperature specification. Other parts do not specify operating temperature. When thermal performance documentation is required for design validation or compliance purposes, 144172-4 offers defined temperature rating. For applications without explicit thermal requirements, all parts are functionally equivalent.

Q: Can I mix brown and gray colored housings in the same assembly?

A: Color variations do not affect electrical or mechanical connector function. Assembly mixing is determined by application design requirements, visual identification standards, or assembly documentation. Connector interface compatibility is maintained across all color options.

Q: What does MSL 1 (Unlimited) mean for these parts?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. All listed parts carry MSL 1 rating, meaning they have unlimited shelf life and do not require special moisture-controlled storage or handling procedures prior to assembly.

Q: Are contacts included with these housing parts?

A: No. All housing parts listed, including the main part 962191-2 and all substitutes, are supplied without contacts. Contacts must be procured separately and crimped into the housing according to TE Connectivity assembly specifications.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant represents an updated compliance standard that supersedes the original RoHS Compliant designation. ROHS3 Compliant parts meet current regulatory requirements and are suitable for applications requiring RoHS Compliant components. The main part carries RoHS Compliant status; all substitutes carry ROHS3 Compliant status.

Q: Can I use 962191-2 and its substitutes interchangeably in production?

A: Yes, for connector interface purposes. All parts maintain identical electrical and mechanical specifications for the housing interface. Production interchangeability should be verified against application design documentation, color coding requirements, and material specifications. Inventory management and supply chain considerations may also influence part selection.
