3M 956220-2000-AR-PR Equivalent & Substitute Parts

Part Overview

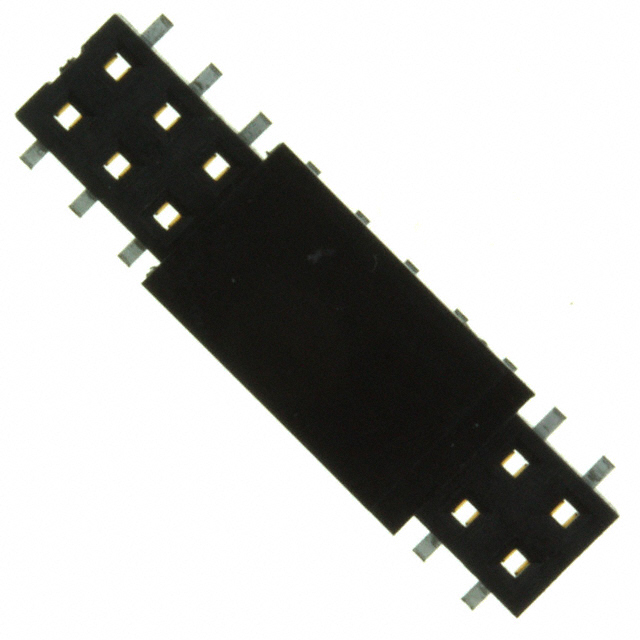

The 3M 956220-2000-AR-PR is a 20-position rectangular receptacle connector with 0.079" (2.00mm) pitch, designed for surface mount board-to-board applications. This connector features gold-plated mating contacts, push-pull fastening, and operates across -40°C to 105°C. The part is classified as obsolete, making identification of compatible substitute components essential for ongoing production and maintenance applications.

Key Parameters

Parameter	Value
Connector Type	Receptacle, Bottom or Top Entry
Number of Positions	20
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Contact Type	Female Socket
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Current Rating	1A
Voltage Rating	1000VDC
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

The 3M 153220-2020-RB-WC qualifies as a substitute for the 956220-2000-AR-PR based on the following critical parameters:

Matching Parameters:

Connector type: Receptacle, Bottom or Top Entry
Number of positions: 20
Pitch - Mating: 0.079" (2.00mm)
Number of rows: 2
Row spacing - Mating: 0.079" (2.00mm)
Mounting type: Surface Mount
Contact type: Female Socket
Fastening type: Push-Pull
Contact finish - Mating: Gold
Current rating: 1A
Material flammability rating: UL94 V-0
Termination: Solder

These parameters define the core mechanical and electrical compatibility for board-to-board connector substitution.

Parameter Comparison

Parameter	956220-2000-AR-PR	153220-2020-RB-WC
Manufacturer	3M	3M
Series	956	1532
Product Status	Obsolete	Active
Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Number of Positions	20	20
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Surface Mount	Surface Mount
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	Flash	30.0µin (0.76µm)
Insulation Color	Black	Black
Insulation Height	0.110" (2.79mm)	0.129" (3.28mm)
Operating Temperature Range	-40°C ~ 105°C	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Current Rating	1A	1A
Voltage Rating	1000VDC	500VDC
Insulation Material	Thermoplastic	Liquid Crystal Polymer (LCP), Glass Filled
Features	Pick and Place	Board Guide, Pick and Place
Packaging	-	Tape & Reel (TR)
RoHS Status	-	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

The 3M 153220-2020-RB-WC is the designated substitute for the obsolete 956220-2000-AR-PR. Selection of the substitute is supported by the following factors:

Product Status: The 153220-2020-RB-WC maintains active production status, ensuring availability and supply chain continuity compared to the obsolete 956220-2000-AR-PR.

Compliance & Certifications: Both connectors meet UL94 V-0 flammability requirements. The 153220-2020-RB-WC carries ROHS3 compliance certification, meeting current regulatory standards.

Mechanical Compatibility: Identical pitch (0.079"), row configuration (2 rows), and surface mount termination ensure direct mechanical substitution without PCB redesign.

Electrical Performance: Both connectors support 1A current rating and UL94 V-0 material flammability. The 956220-2000-AR-PR operates at 1000VDC while the 153220-2020-RB-WC operates at 500VDC. Application voltage requirements must be evaluated against this difference.

Temperature Range: The 153220-2020-RB-WC extends the lower operating temperature to -55°C compared to -40°C for the 956220-2000-AR-PR, providing broader thermal coverage.

Insulation Material: The 153220-2020-RB-WC uses Liquid Crystal Polymer (LCP) glass-filled material versus thermoplastic in the original part, offering improved thermal and mechanical properties.

Frequently Asked Questions (FAQ)

Q: Can the 3M 153220-2020-RB-WC directly replace the 956220-2000-AR-PR without PCB modification?

A: Yes. Both connectors share identical pitch (0.079"), row count (2), row spacing (0.079"), and surface mount termination. No PCB layout changes are required for mechanical substitution.

Q: What is the voltage rating difference between these connectors?

A: The 956220-2000-AR-PR is rated for 1000VDC, while the 153220-2020-RB-WC is rated for 500VDC. Applications requiring voltages above 500VDC must retain the original part or identify alternative substitutes rated for higher voltages.

Q: Does the insulation height difference affect compatibility?

A: The 153220-2020-RB-WC has an insulation height of 0.129" (3.28mm) compared to 0.110" (2.79mm) for the 956220-2000-AR-PR. PCB clearance and mating connector geometry must be evaluated to confirm physical fit in the application.

Q: What packaging is available for the substitute part?

A: The 153220-2020-RB-WC is supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes.

Q: Are both connectors RoHS compliant?

A: The 153220-2020-RB-WC carries ROHS3 compliance certification. RoHS status for the 956220-2000-AR-PR was not specified in the provided data.

Q: What is the operating temperature range for each connector?

A: The 956220-2000-AR-PR operates from -40°C to 105°C. The 153220-2020-RB-WC operates from -55°C to 105°C, providing extended low-temperature capability.
