TE Connectivity AMP Connectors 9-51863-1 Ring Terminal Equivalent & Substitute Parts

Part Overview

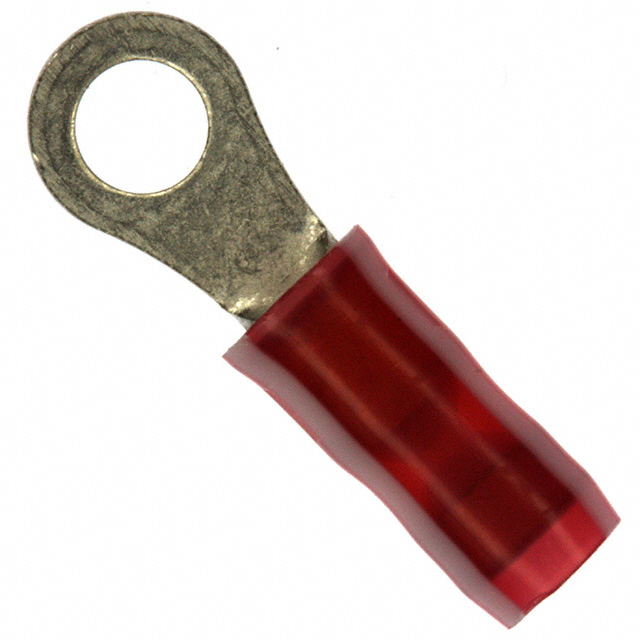

The TE Connectivity AMP Connectors 9-51863-1 is an insulated ring terminal connector designed for 18 AWG wire applications with a 6 stud circular configuration. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure procurement availability. The part features crimp termination, copper construction with tin finish, and polyamide nylon insulation with insulation restriction capability.

Substiute Parts

9-51863-1

TE Connectivity AMP ConnectorsIn Stock: 11889-51863-1 Datasheet

Current PartRFQ

51863-4

TE Connectivity AMP ConnectorsIn Stock: 85151863-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 9-51863-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 51863-4 maintains identical specifications for wire gauge (18 AWG), terminal type (circular), stud configuration (6 stud), termination method (crimp), contact material and finish (copper with tin), insulation material (polyamide nylon), and all dimensional characteristics including thickness, width, length, and insulation diameter range.

The substitution is valid based on the following key parameters:

• Wire Gauge: 18 AWG (identical)
• Terminal Type: Circular (identical)
• Stud/Tab Size: 6 Stud (identical)
• Termination: Crimp (identical)
• Contact Material: Copper (identical)
• Contact Finish: Tin (identical)
• Insulation Material: Polyamide (PA), Nylon (identical)
• All dimensional specifications (identical)
• Insulation Restriction Feature (identical)
• Moisture Sensitivity Level: 1 (Unlimited) (identical)

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 51863-4 is the direct functional equivalent for the obsolete 9-51863-1. All electrical and mechanical parameters are identical, ensuring complete interchangeability in circuit applications requiring 18 AWG insulated ring terminals with 6 stud circular configuration and crimp termination.

The 51863-4 is classified as an active product with current manufacturing status, providing assured long-term availability compared to the obsolete 9-51863-1. Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, maintaining consistent regulatory and trade compliance.

The substitute part is available in bulk packaging, supporting production requirements across various order quantities. The Moisture Sensitivity Level of 1 (Unlimited) for both parts indicates no special moisture handling requirements during storage or assembly.

Frequently Asked Questions (FAQ)

Q: Can 51863-4 be used as a direct replacement for 9-51863-1?

A: Yes. The 51863-4 is a direct functional equivalent with identical electrical and mechanical specifications. All parameters including wire gauge (18 AWG), terminal type (circular), stud size (6 stud), termination method (crimp), contact material (copper with tin finish), insulation material (polyamide nylon), and all dimensional characteristics are identical.

Q: What is the primary difference between these two parts?

A: The primary difference is product status. The 9-51863-1 is obsolete, while the 51863-4 is active. Both parts are manufactured by TE Connectivity AMP Connectors and share the same base product number (51863). The 51863-4 is available in bulk packaging.

Q: Are there any compatibility concerns when substituting 51863-4 for 9-51863-1?

A: No compatibility concerns exist. The parts are electrically and mechanically identical. Both feature insulation restriction, identical insulation diameter range (0.056" ~ 0.110"), and identical mounting configuration (free hanging in-line).

Q: What wire gauges are compatible with these ring terminals?

A: Both parts are specified for 18 AWG wire applications. The insulation diameter range of 0.056" ~ 0.110" (1.42mm ~ 2.79mm) accommodates standard 18 AWG wire insulation specifications.

Q: What is the stud size for these ring terminals?

A: Both parts feature a 6 stud circular configuration, suitable for connection to #6 studs or fasteners.

Q: Are these parts RoHS compliant?

A: The 9-51863-1 is marked as RoHS Compliant. The 51863-4 has RoHS Status listed as Not applicable. Both parts maintain identical material composition (copper contact with tin finish, polyamide nylon insulation).

Q: What is the Moisture Sensitivity Level for these parts?

A: Both parts have Moisture Sensitivity Level 1 (Unlimited), indicating no special moisture control requirements during storage, handling, or assembly.

Q: What packaging options are available?

A: The 51863-4 is available in bulk packaging. The 9-51863-1 packaging specification is not provided in the technical data.

Q: Are these parts suitable for high-temperature applications?

A: Material specifications provided include polyamide (PA) nylon insulation. Specific temperature ratings are not included in the provided technical parameters.

Q: What is the contact finish specification?

A: Both parts feature copper contact material with tin finish, providing corrosion resistance and reliable electrical conductivity for crimp termination applications.
