3M 951106-4620-AR-TP Rectangular Connector Header - Equivalent & Substitute Parts
Part Overview
The 3M 951106-4620-AR-TP is a surface mount, right-angle rectangular connector header with 6 positions at 0.079" (2.00mm) pitch. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The connector features male pins, unshrouded design, and solder termination with push-pull fastening. Identifying compatible alternatives ensures design continuity and supply chain flexibility.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 951106-4620-AR-TP |
| Manufacturer | 3M |
| Category | Rectangular Connectors |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Insulation Material | Thermoplastic |
| Operating Temperature | -25°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | 1A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitute parts for the 3M 951106-4620-AR-TP are selected based on strict electrical and mechanical compatibility criteria. The following parameters must align for functional equivalence:
Critical Matching Parameters:
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Mounting Type: Surface Mount, Right Angle
- Connector Type: Header
- Contact Type: Male Pin
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Shape: Square
- Insulation Color: Black
- Material Flammability Rating: UL94 V-0
- Moisture Sensitivity Level: 1 (Unlimited)
All identified substitute parts meet these core requirements. Variations in contact material, insulation material composition, contact finish thickness, and operating temperature ranges represent acceptable engineering alternatives that maintain functional compatibility within the specified parameter set.
Parameter Comparison
| Parameter | 3M 951106-4620-AR-TP | Amphenol ICC 10112684-G03-06ULF | Harwin M22-5330605 | Samtec MMT-106-01-F-SH | Samtec MMT-106-01-F-SH-A | Samtec MMT-106-01-F-SH-A-TR | Samtec MMT-106-01-F-SH-K-TR | Samtec MMT-106-01-F-SH-P-TR | Samtec MMT-106-01-F-SH-TR | Samtec MMT-106-01-FM-SH | Samtec MMT-106-01-H-SH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | 3M | Amphenol ICC (FCI) | Harwin Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector Type | Header | Header | Header, Cuttable | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold or Gold, GXT™ | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Insulation Material | Thermoplastic | Thermoplastic, Glass Filled | Polyamide (PA6T), Nylon 6T | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -25°C ~ 105°C | -55°C ~ 125°C | -40°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Current Rating | 1A | 2A (AC/DC) | 2A per Contact | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| RoHS Status | Not specified | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
Engineering Selection Recommendations
All substitute parts listed maintain functional compatibility with the 3M 951106-4620-AR-TP based on core electrical and mechanical parameters. Selection among alternatives should prioritize product status and compliance certifications:
Active Product Status: All substitute parts carry active product status, ensuring ongoing availability and manufacturer support. The original 3M part is obsolete, making substitution necessary for new designs and ongoing production.
Compliance Certifications: Samtec MMT series parts (MMT-106-01-F-SH, MMT-106-01-F-SH-A, MMT-106-01-F-SH-A-TR, MMT-106-01-F-SH-K-TR, MMT-106-01-F-SH-P-TR, MMT-106-01-F-SH-TR, MMT-106-01-FM-SH, MMT-106-01-H-SH) carry ROHS3 compliance. Amphenol ICC 10112684-G03-06ULF carries RoHS compliance. Harwin M22-5330605 carries ROHS3 compliance. All parts meet UL94 V-0 flammability requirements and MSL 1 moisture sensitivity specifications.
Packaging Considerations: Samtec parts are available in multiple packaging formats (Tube, Bulk, Tape & Reel). Amphenol ICC part is supplied in Tube packaging. Harwin part is supplied in Bulk packaging. Selection should align with assembly process requirements and inventory management practices.
Current Rating Enhancement: Substitute parts offer current ratings of 2A to 3A, exceeding the original 1A specification. This provides design margin for applications requiring higher current capacity.
Frequently Asked Questions (FAQ)

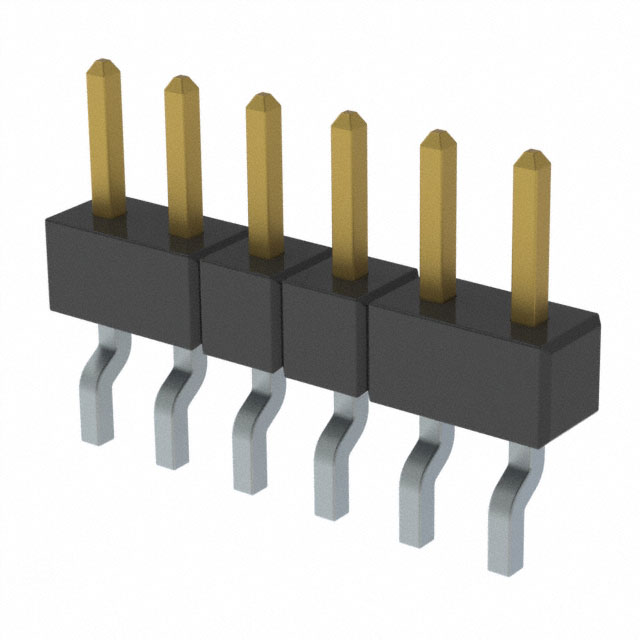

Q: Can the Samtec MMT-106-01-F-SH directly replace the 3M 951106-4620-AR-TP?
A: Yes. Both parts share identical pitch (0.079" / 2.00mm), position count (6), row configuration (1), mounting type (surface mount right angle), connector type (header), contact type (male pin), termination (solder), and fastening type (push-pull). The Samtec part is active and RoHS3 compliant, addressing the obsolescence of the 3M part.
Q: What is the difference between Samtec MMT-106-01-F-SH and MMT-106-01-F-SH-A?
A: Both parts are electrically and mechanically identical. The primary difference is packaging: MMT-106-01-F-SH is supplied in Tube packaging, while MMT-106-01-F-SH-A is supplied in Bulk packaging. The "-A" designation indicates the addition of a board guide feature. Selection depends on assembly process requirements and handling preferences.
Q: Are the Samtec Tape & Reel variants (MMT-106-01-F-SH-K-TR, MMT-106-01-F-SH-P-TR, MMT-106-01-F-SH-TR) suitable for automated pick-and-place assembly?
A: Yes. All three Tape & Reel variants are compatible with automated assembly equipment. MMT-106-01-F-SH-K-TR and MMT-106-01-F-SH-P-TR include pick-and-place features. Selection among these variants should align with specific assembly equipment specifications and feeder compatibility.
Q: How do the operating temperature ranges compare?
A: The original 3M part operates from -25°C to 105°C. Samtec MMT series parts operate from -55°C to 125°C, providing extended low-temperature and high-temperature capability. Amphenol ICC part operates from -55°C to 125°C. Harwin part operates from -40°C to 105°C. All alternatives meet or exceed the original specification.
Q: What is the significance of the contact finish differences?

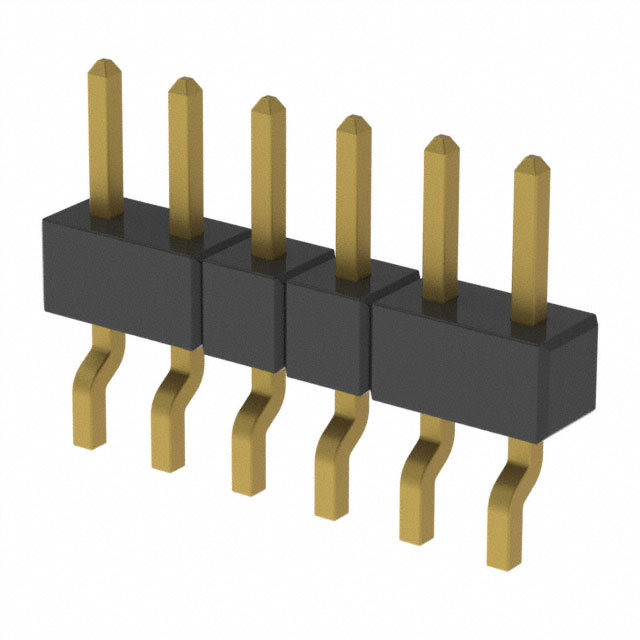

A: The 3M part features gold flash finish on mating contacts. Samtec parts feature 3.00µin (0.076µm) gold finish on mating contacts, except MMT-106-01-H-SH which features 30.0µin (0.76µm) gold finish. Amphenol ICC part features 30.0µin (0.76µm) gold or GXT™ finish. All finishes provide equivalent corrosion resistance and electrical performance for the specified application.
Q: Is the Harwin M22-5330605 cuttable feature relevant for this application?
A: The Harwin part includes a cuttable header feature, allowing position reduction if required. This feature is optional and does not affect compatibility with the standard 6-position configuration. Selection of the Harwin part should be based on whether this feature provides value for the specific application.
Q: What compliance certifications apply to all substitute parts?
A: All substitute parts meet UL94 V-0 material flammability requirements and MSL 1 (unlimited) moisture sensitivity specifications. Samtec, Amphenol ICC, and Harwin parts carry RoHS or ROHS3 compliance. ECCN classification is EAR99 for all parts. HTSUS code is 8536.69.4040 for all parts.
