3M 950412-5002-AR Rectangular Connector Equivalent & Substitute Parts

Part Overview

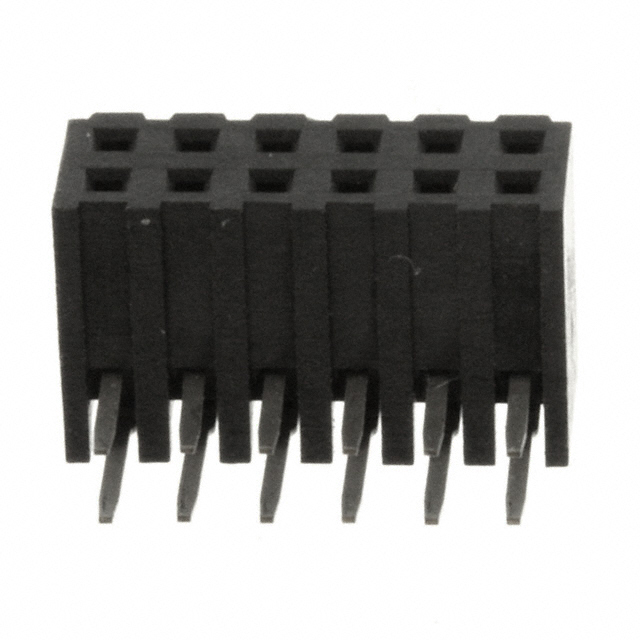

The 3M 950412-5002-AR is a 12-position receptacle connector with 0.079" (2.00mm) pitch, designed for board-to-board applications with through-hole, right-angle mounting. This connector features gold-plated mating contacts and tin-plated posts, rated for 1A at 1000VDC operation across -40°C to 105°C. The product is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system support and component procurement.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	12
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole, Right Angle
Contact Finish - Mating	Gold
Insulation Height	0.191" (4.85mm)
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating	1A
Voltage Rating	1000VDC

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 950412-5002-AR is determined by the following critical parameters:

12-position configuration with 0.079" (2.00mm) pitch
2-row layout with 0.079" (2.00mm) row spacing
Through-hole, right-angle mounting orientation
Gold-plated mating contacts
0.191" (4.85mm) insulation height
Operating temperature range of -40°C to 105°C
UL94 V-0 flammability rating
Female socket contact type
Board-to-board style
Push-pull fastening mechanism

The identified substitute parts maintain these core electrical and mechanical parameters, ensuring functional compatibility in applications originally designed for the 3M 950412-5002-AR.

Parameter Comparison

Parameter	3M 950412-5002-AR	TE Connectivity 1-1734531-2	Sullins NPPN062FJFN-RC
Manufacturer	3M	TE Connectivity AMP Connectors	Sullins Connector Solutions
Connector Type	Receptacle	Receptacle	Header
Number of Positions	12	12	12
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold
Insulation Color	Black	Black	Black
Insulation Height	0.191" (4.85mm)	0.191" (4.85mm)	0.191" (4.85mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Contact Shape	Square	Square	Square
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS	8536.69.4040	8536.69.4040	8536.69.4040
Product Status	Obsolete	Active	Active

Engineering Selection Recommendations

The TE Connectivity 1-1734531-2 and Sullins NPPN062FJFN-RC are both active-status alternatives to the obsolete 3M 950412-5002-AR. Both substitute parts maintain identical mechanical dimensions, pitch specifications, and thermal operating ranges. Both are UL94 V-0 rated and carry MSL 1 classification.

The TE Connectivity 1-1734531-2 is classified as the manufacturer-recommended substitute, maintaining receptacle connector type configuration. This part is RoHS3 compliant and carries ROHS3 certification status.

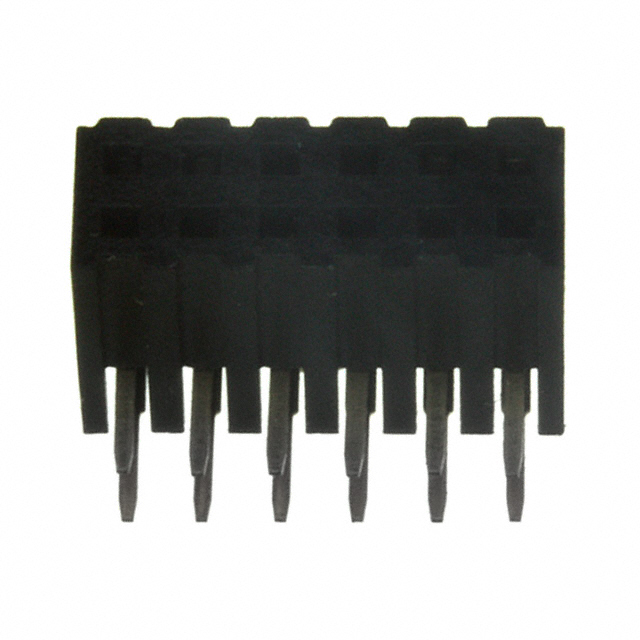

The Sullins NPPN062FJFN-RC is a header connector variant with identical mating pitch and row spacing. This part is RoHS3 compliant and carries REACH Unaffected status.

Selection between these alternatives depends on application requirements regarding connector type (receptacle versus header) and compliance documentation needs.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1-1734531-2 directly replace the 3M 950412-5002-AR?

A: Yes. Both connectors share identical 12-position, 0.079" (2.00mm) pitch configuration, through-hole right-angle mounting, and operating temperature range. Mechanical and electrical parameters are equivalent.

Q: What is the primary difference between the TE Connectivity and Sullins substitute options?

A: The TE Connectivity 1-1734531-2 is a receptacle connector, matching the original 3M part type. The Sullins NPPN062FJFN-RC is a header connector. Both maintain identical pitch, row spacing, and mounting orientation.

Q: Are there voltage or current rating differences between the main part and substitutes?

A: The 3M 950412-5002-AR is rated for 1A at 1000VDC. The TE Connectivity 1-1734531-2 specifies 250VAC voltage rating with current rating not provided. The Sullins NPPN062FJFN-RC specifies 1A current rating with voltage rating not provided. Application voltage and current requirements must be verified against substitute specifications.

Q: What is the packaging format for these substitute parts?

A: Both the TE Connectivity 1-1734531-2 and Sullins NPPN062FJFN-RC are supplied in tube packaging.

Q: Are these substitute parts RoHS compliant?

A: Both the TE Connectivity 1-1734531-2 and Sullins NPPN062FJFN-RC are RoHS3 compliant.

Q: What contact material differences exist between the main part and substitutes?

A: The 3M 950412-5002-AR uses copper alloy contacts. The TE Connectivity 1-1734531-2 uses phosphor bronze contacts. The Sullins NPPN062FJFN-RC uses phosphor bronze contacts.
