3M 94854 Ring Terminal Connector - Equivalent & Substitute Parts

Part Overview

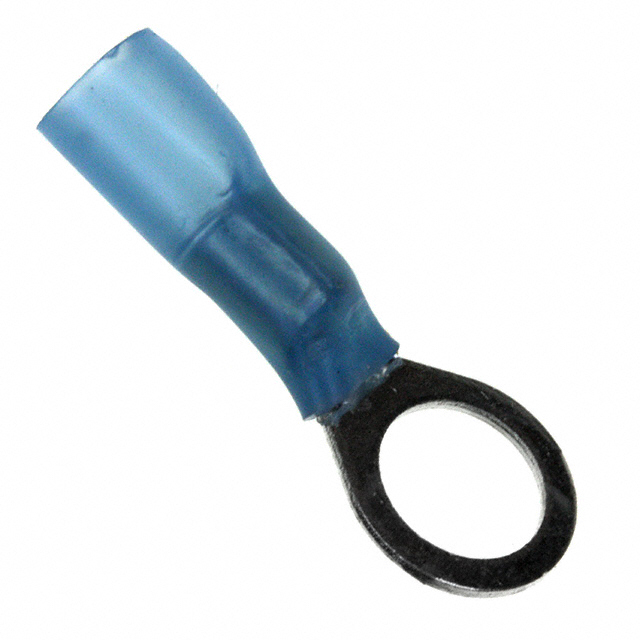

The 3M 94854 is a ring terminal connector designed for 14-16 AWG wire gauges with a 5/16 stud configuration. This circular terminal features insulated heat shrink construction with a brazed seam and is classified as obsolete. Due to its obsolete status, identifying functionally equivalent active alternatives is essential for ongoing procurement and system maintenance.

Substiute Parts

94854

3MIn Stock: 83594854 Datasheet

Current PartRFQ

MH14-516R/SK

3MIn Stock: 976MH14-516R/SK Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The 3M MH14-516R/SK serves as the direct substitute for the 94854. Substitution validity is determined by strict equivalence across the following critical parameters:

• Terminal Type: Circular (identical)
• Stud/Tab Size: 5/16 Stud (identical)
• Wire Gauge: 14-16 AWG (identical)
• Termination Method: Crimp (identical)
• Insulation Type: Insulated with Heat Shrink (identical)
• Mechanical Dimensions: Length 1.100", Width 0.470", Thickness 0.030" (all identical)
• Features: Brazed Seam (identical)
• Color: Blue (identical)
• Moisture Sensitivity Level: 1 (Unlimited) (identical)
• REACH Status: REACH Unaffected (identical)

The MH14-516R/SK is an active product from the Scotchlok™ series, providing continuity of supply where the Highland™ series 94854 is no longer available.

Parameter Comparison

Engineering Selection Recommendations

The 3M MH14-516R/SK is the appropriate selection for applications currently using the 94854. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The MH14-516R/SK offers the advantage of active product status, ensuring ongoing availability and supply chain continuity. The substitute part carries RoHS Compliance certification, providing additional regulatory alignment for modern manufacturing environments. Both parts maintain REACH Unaffected status and MSL 1 classification, confirming compatibility with standard storage and handling protocols.

Frequently Asked Questions (FAQ)

Q: Can the MH14-516R/SK directly replace the 3M 94854 in existing applications?

A: Yes. The MH14-516R/SK is dimensionally and functionally equivalent to the 94854 across all specified parameters, including terminal type, stud size, wire gauge, insulation configuration, and mechanical dimensions.

Q: What is the primary reason for substitution?

A: The 3M 94854 is classified as obsolete. The MH14-516R/SK is an active product that provides equivalent functionality with assured supply availability.

Q: Are there packaging differences between these parts?

A: The 94854 packaging is not specified in available data. The MH14-516R/SK is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both parts meet the same compliance standards?

A: Both parts are REACH Unaffected and carry MSL 1 (Unlimited) classification. The MH14-516R/SK additionally carries RoHS Compliance certification.

Q: Are the contact materials and finishes identical?

A: The 94854 contact material and finish specifications are not provided. The MH14-516R/SK uses Copper ETP with Tin finish. Verify contact material requirements for your specific application.

Q: What is the insulation material composition?

A: The 94854 insulation material is not specified. The MH14-516R/SK uses Polyolefin insulation. Both parts feature heat shrink insulation construction.
