3M 94826 Quick Connect Terminal - Equivalent & Substitute Parts

Part Overview

The 3M 94826 is a 0.250" (6.35mm) Quick Connect Male crimp connector designed for 14-16 AWG wire applications. This terminal features non-mating end insulation and is part of the Highland™ series. The component is currently Active in product status and maintains full RoHS and REACH compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Substiute Parts

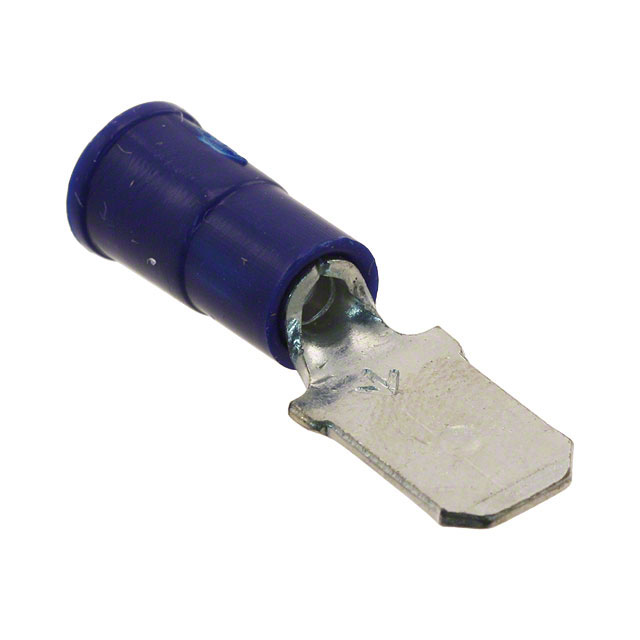

94826

3MIn Stock: 102294826 Datasheet

Current PartRFQ

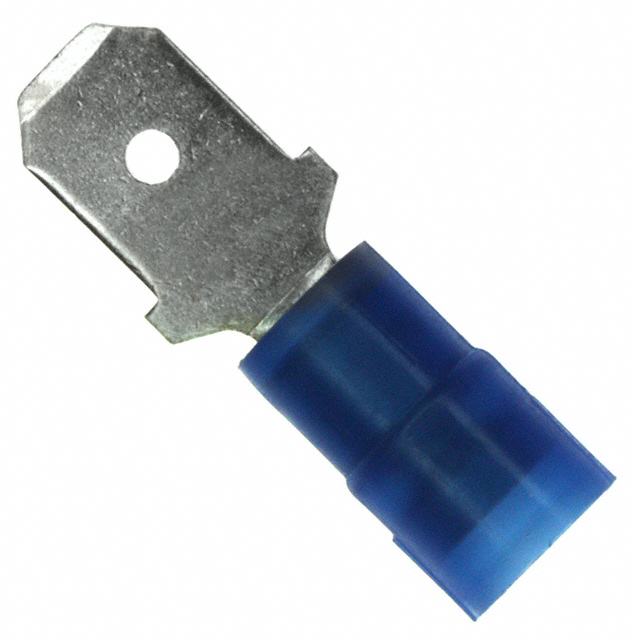

DNF14-250M-C

Panduit CorpIn Stock: 1092DNF14-250M-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Panduit Corp DNF14-250M-C qualifies as a substitute based on the following critical parameters:

• Tab Width: 0.250" (6.35mm) — identical specification
• Tab Thickness: 0.032" (0.81mm) — identical specification
• Wire Gauge: 14-16 AWG — identical specification
• Gender: Male — identical specification
• Termination: Crimp — identical specification
• Insulation: Non-Mating End Insulated — identical specification
• Contact Material: Copper — identical specification
• Mounting Type: Free Hanging (In-Line) — identical specification

Both components are designed for the same quick connect interface and wire termination requirements. Substitution is valid where these core electrical and mechanical parameters are maintained.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 94826 and Panduit DNF14-250M-C maintain Active product status and full regulatory compliance. The 3M component carries RoHS Compliance certification, while the Panduit substitute meets ROHS3 Compliance. Both are REACH Unaffected. The primary differences are overall length (0.940" versus 0.900") and contact finish (Tin versus Nickel). Selection between these components should be based on specific application requirements regarding contact finish performance and available mounting space.

Frequently Asked Questions (FAQ)

Q: Can the Panduit DNF14-250M-C replace the 3M 94826 in all applications?

A: Substitution is valid where the critical parameters match: 0.250" tab width, 0.032" tab thickness, 14-16 AWG wire gauge, male gender, crimp termination, and non-mating end insulation. The 0.040" difference in overall length and the contact finish variation (Nickel versus Tin) must be evaluated for specific application constraints.

Q: What is the significance of the contact finish difference?

A: The 3M 94826 uses Tin contact finish, while the Panduit DNF14-250M-C uses Nickel finish. Contact finish affects corrosion resistance, electrical conductivity, and long-term reliability in specific environmental conditions. Application requirements determine which finish is appropriate.

Q: Are both components RoHS compliant?

A: Yes. The 3M 94826 is RoHS Compliant, and the Panduit DNF14-250M-C is ROHS3 Compliant. Both meet current regulatory requirements.

Q: What does "Non-Mating End Insulated" mean?

A: This indicates that the insulation covers the terminal at the end that does not connect to a mating connector, providing electrical safety and preventing accidental contact.

Q: Can these terminals be used interchangeably in quick connect applications?

A: Yes, provided the mating connector interface accepts the 0.250" tab width specification. Both terminals are designed for quick connect male interfaces with identical tab dimensions and wire gauge ratings.
