3M 94813 Equivalent & Substitute Parts

Part Overview

The 3M 94813 is a terminal butt splice connector designed for crimp termination of 16-22 AWG copper wire. This component features a closed-end design with individual openings and full insulation. The part is currently discontinued at DiGi Electronics, necessitating identification of functionally equivalent alternatives that maintain the same electrical and mechanical specifications for wire splicing applications.

Substiute Parts

94813

3MIn Stock: 108294813 Datasheet

Current PartRFQ

722-N-A

3MIn Stock: 3584722-N-A Datasheet

MFR RecommendedRFQ

JN218-216-C

Panduit CorpIn Stock: 3492JN218-216-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 94813 is determined by the following critical parameters:

• Wire Gauge Compatibility: Substitute parts must accommodate 16-22 AWG wire or a range that fully encompasses this specification
• Terminal Type: Butt splice, closed-end configuration with crimp termination
• Insulation: Fully insulated construction
• Wire Material: Copper wire compatibility
• Number of Wire Entries: Single wire entry (1)

The identified substitute parts meet these core electrical and mechanical requirements while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

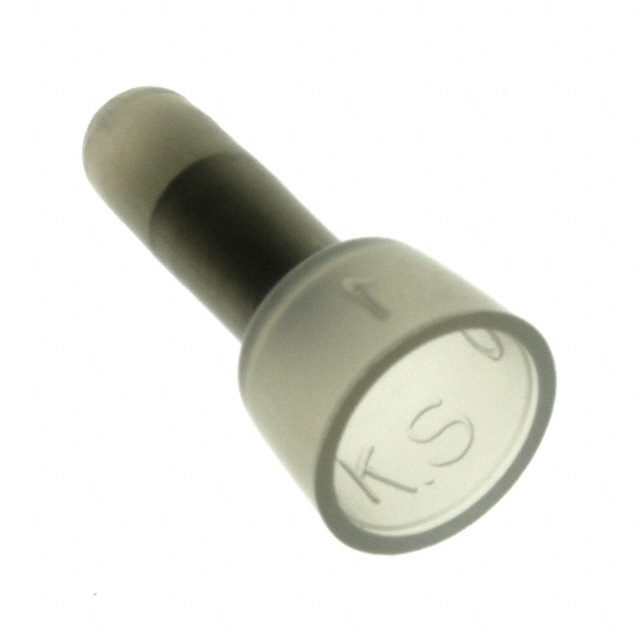

3M 722-N-A: This substitute maintains identical wire gauge specification (16-22 AWG) and all core electrical parameters of the original part. It is manufactured by 3M under the Scotchlok™ series, carries active product status, and is RoHS Compliant. Inventory availability is significantly higher at 3500 pieces. This part is the primary equivalent for direct replacement.

Panduit JN218-216-C: This substitute accommodates a broader wire gauge range (14-22 AWG) that includes the original specification. It is manufactured by Panduit Corp under the Pan-Term® series and maintains active product status with ROHS3 Compliance. The extended wire gauge range provides additional flexibility for applications within the 16-22 AWG window. Inventory availability is 3450 pieces.

Both substitutes are available in bulk packaging and maintain the required fully insulated, crimp-terminated butt splice configuration.

Frequently Asked Questions (FAQ)

Q: Can the 3M 722-N-A directly replace the 3M 94813?

A: Yes. Both parts share identical wire gauge specification (16-22 AWG), terminal type (butt splice, closed end), termination method (crimp), insulation (fully insulated), and wire entry configuration (1). The primary difference is the opening design (individual openings versus single opening), which does not affect electrical or mechanical compatibility for the specified wire gauge range.

Q: What is the difference between "Individual Openings" and "Single Opening" in the terminal design?

A: Individual openings refer to separate wire entry points within the connector body, while single opening indicates a unified entry point. Both configurations accommodate the same wire gauge range and provide equivalent electrical performance for butt splice applications.

Q: Why does the Panduit JN218-216-C have a broader wire gauge range (14-22 AWG)?

A: The Panduit part is designed to accommodate a wider range of wire gauges. For applications requiring 16-22 AWG wire, this part remains fully compatible and provides additional flexibility for future applications using 14-15 AWG wire.

Q: Are there compliance differences between the substitutes?

A: The 3M 722-N-A is RoHS Compliant. The Panduit JN218-216-C is ROHS3 Compliant, which represents a more recent regulatory standard. Both meet current environmental compliance requirements. The Panduit part lists REACH as Unaffected, while the 3M part does not specify REACH status.

Q: What packaging options are available for the substitute parts?

A: Both substitute parts are supplied in bulk packaging, which differs from the original part specification. Bulk packaging is standard for terminal components and does not affect functional performance.

Q: How does inventory availability compare?

A: The original 3M 94813 has 1071 pieces in stock. The 3M 722-N-A substitute has 3500 pieces available, and the Panduit JN218-216-C has 3450 pieces available, providing significantly improved supply availability.
