3M 94796 Terminal Butt Splice Equivalent & Substitute Parts

Part Overview

The 3M 94796 is a terminal butt splice connector designed for crimp termination of 10-18 AWG copper wire. This component features closed-end, individual openings construction with full insulation. The part is discontinued at DiGi Electronics, making identification of equivalent alternatives necessary for ongoing procurement and system maintenance.

Substiute Parts

94796

3MIn Stock: 71194796 Datasheet

Current PartRFQ

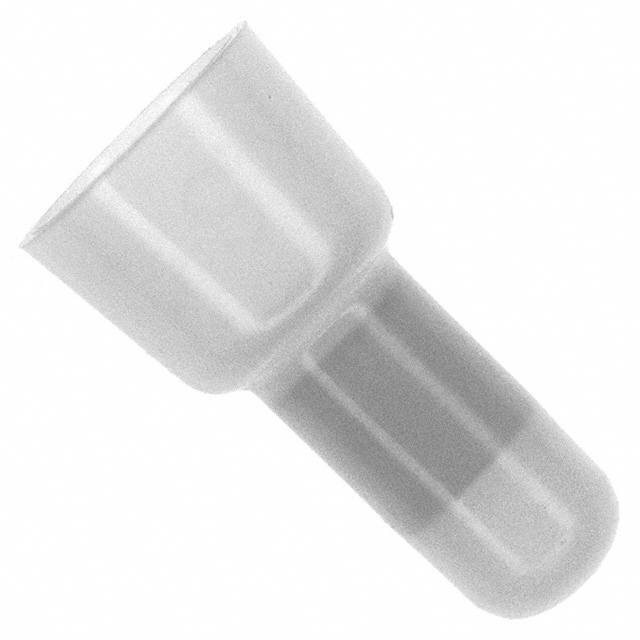

718-N-A

3MIn Stock: 5433718-N-A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 3M 718-N-A qualifies as a direct substitute based on the following critical parameters:

• Wire gauge range: 10-18 AWG (identical)
• Termination method: Crimp (identical)
• Insulation type: Fully Insulated (identical)
• Wire material: Copper Wire Only (identical)
• Number of wire entries: 1 (identical)
• Moisture sensitivity level: 1 (Unlimited) (identical)
• Manufacturer: 3M (same source)

The primary structural difference is the connector opening configuration: the 94796 features individual openings while the 718-N-A features a single opening. Both configurations maintain the same electrical and mechanical compatibility for the specified wire gauge and termination requirements.

Parameter Comparison

Engineering Selection Recommendations

The 3M 718-N-A is the direct substitute for the discontinued 3M 94796. Selection is based on:

• Identical electrical specifications for wire gauge and termination method
• Identical mechanical compatibility for crimp termination
• Active product status with confirmed availability
• ROHS3 compliance and REACH unaffected status provide regulatory alignment
• Same manufacturer ensures consistency in manufacturing standards and quality control

The 718-N-A is suitable for direct replacement in applications requiring 10-18 AWG butt splice crimp terminals with full insulation.

Frequently Asked Questions (FAQ)

Q: Can the 3M 718-N-A replace the 3M 94796 in existing designs?

A: Yes. Both parts meet identical electrical and mechanical specifications for wire gauge (10-18 AWG), termination method (crimp), insulation type (fully insulated), and wire material (copper only). The structural difference in opening configuration does not affect compatibility for the specified wire gauge range.

Q: What is the difference between individual openings and single opening configurations?

A: Individual openings provide separate entry points for each wire connection, while single opening uses a unified entry point. Both configurations accommodate the same wire gauge range and crimp termination process.

Q: Is the 3M 718-N-A available in different packaging options?

A: The 718-N-A is supplied in bulk packaging. Verify packaging requirements for your procurement process.

Q: Does the 718-N-A meet regulatory compliance requirements?

A: The 718-N-A is ROHS3 compliant and REACH unaffected, meeting current regulatory standards for electronic components.

Q: Why is the 94796 discontinued?

A: Product discontinuation information is not provided in the technical specifications. Contact 3M directly for historical product status details.
