3M 94772 Equivalent & Substitute Parts

Part Overview

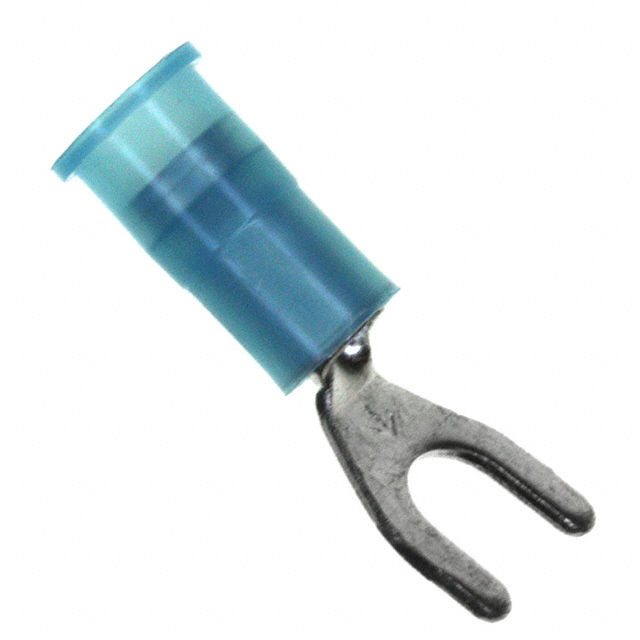

The 3M 94772 is an insulated spade terminal connector designed for crimp termination on 14-16 AWG wire. This component features a 10 stud configuration with tin-plated copper contact material and blue polyamide insulation. The part is Active in product status and RoHS Compliant, making it suitable for applications requiring reliable electrical connections in standard industrial and commercial environments. Equivalent parts are identified to provide supply flexibility and ensure continuity in component sourcing.

Substiute Parts

94772

3MIn Stock: 109794772 Datasheet

Current PartRFQ

PNF14-10F-C

Panduit CorpIn Stock: 1341PNF14-10F-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 94772 is determined by strict alignment of critical electrical and mechanical parameters. The substitute part PNF14-10F-C from Panduit Corp meets the following substitution criteria:

• Wire gauge compatibility: 14-16 AWG (identical)
• Stud size: 10 Stud (identical)
• Termination method: Crimp (identical)
• Insulation material: Polyamide (PA), Nylon (identical)
• Contact material: Copper (identical)
• Contact finish: Tin (identical)
• Color: Blue (identical)
• Insulation classification: Insulated (identical)
• Mounting configuration: Free Hanging (In-Line) (identical)

Both parts are Active in product status and comply with RoHS and REACH regulations, confirming functional and regulatory equivalence.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 94772 and Panduit PNF14-10F-C are Active products with full regulatory compliance. The 3M 94772 carries RoHS Compliant certification, while the Panduit substitute meets ROHS3 Compliant standards, representing an equivalent or enhanced compliance level. Both parts are REACH Unaffected and classified under identical ECCN and HTSUS codes, confirming regulatory equivalence for international sourcing and procurement.

Selection between these parts should be based on availability, lead time, and procurement requirements, as both meet identical electrical and mechanical specifications for 14-16 AWG crimp termination applications.

Frequently Asked Questions (FAQ)

Q: Can Panduit PNF14-10F-C replace 3M 94772 in existing designs?

A: Yes. Both parts share identical wire gauge (14-16 AWG), stud size (10), termination method (crimp), insulation material (polyamide nylon), contact material (copper), contact finish (tin), color (blue), and mounting configuration (free hanging in-line). Electrical and mechanical compatibility is confirmed.

Q: Are there dimensional differences between these parts?

A: The outer edge width is identical at 0.340" (8.64mm). Overall length differs slightly: 3M 94772 measures 0.910" (23.11mm) while Panduit PNF14-10F-C measures 0.870" (22.10mm). This minor variation does not affect functional compatibility in standard mounting applications.

Q: Do both parts meet the same regulatory requirements?

A: Both parts are RoHS compliant and REACH unaffected. The 3M 94772 is RoHS Compliant; the Panduit substitute is ROHS3 Compliant. Both carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Q: What is the difference between butted seam and brazed seam construction?

A: The 3M 94772 features butted seam construction, while the Panduit PNF14-10F-C features brazed seam with serrated termination. Both construction methods provide reliable electrical connection for crimp termination applications. Seam type does not affect wire gauge or stud compatibility.

Q: Are inventory levels a factor in substitution decisions?

A: Inventory availability may influence procurement timing. The 3M 94772 has 1002 pcs in stock; the Panduit PNF14-10F-C has 1273 pcs in stock. Both are available for immediate sourcing.
