Ohmite 93J330 Equivalent & Substitute Parts

Part Overview

The Ohmite 93J330 is a 330 Ohm, ±5% tolerance, 3.25W axial wirewound resistor with flame retardant coating and safety features. This component is designed for through-hole applications requiring reliable power dissipation in industrial and general-purpose electronic circuits. The part is currently active in production with 800 pieces available in inventory. Alternative equivalent parts may be required due to supply chain considerations, inventory availability, or specific compliance requirements for end-use applications.

Substiute Parts

93J330

OhmiteIn Stock: 90493J330 Datasheet

Current PartRFQ

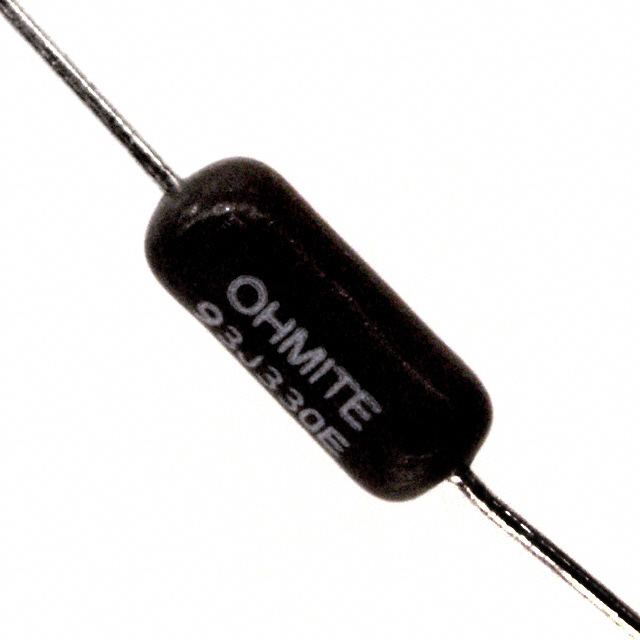

93J330E

OhmiteIn Stock: 108493J330E Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The Ohmite 93J330E qualifies as a parametric equivalent to the 93J330 based on the following critical substitution criteria:

Electrical Parameters Match:

• Resistance value: 330 Ohms (identical)
• Tolerance: ±5% (identical)
• Power rating: 3.25W (identical)
• Temperature coefficient: ±30ppm/°C (identical)

Mechanical Parameters Match:

• Composition: Wirewound (identical)
• Package type: Axial (identical)
• Physical dimensions: 0.233" Dia x 0.579" L (5.90mm x 14.70mm) (identical)
• Number of terminations: 2 (identical)

Functional Equivalence: Both parts belong to the Ohmite 90 series and feature identical flame retardant coating and safety characteristics. The 93J330E maintains full electrical and mechanical compatibility with the 93J330 for direct substitution in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 93J330 and 93J330E are active production parts from Ohmite with identical electrical and mechanical specifications. Selection between these parts should be based on compliance requirements and supply availability:

93J330: Select this part for applications where RoHS non-compliant components are acceptable or required by specification. Current inventory: 800 pieces.

93J330E: Select this part for applications requiring ROHS3 compliance. This variant offers improved regulatory alignment for markets with strict environmental compliance mandates. Current inventory: 1015 pieces, providing greater availability.

Both parts are suitable for direct substitution in through-hole axial resistor applications requiring 330 Ohm, 3.25W power dissipation with ±5% tolerance and flame retardant safety features.

Frequently Asked Questions (FAQ)

Q: Can the 93J330E replace the 93J330 in existing designs? A: Yes. The 93J330E is a direct parametric equivalent with identical electrical characteristics (330 Ohms, ±5%, 3.25W), composition (wirewound), and physical dimensions (0.233" Dia x 0.579" L). Pin-to-pin and footprint compatibility is maintained for axial through-hole mounting.

Q: What is the primary difference between these two parts? A: The primary difference is RoHS compliance status. The 93J330E is ROHS3 compliant with MSL rating of 1 (Unlimited), while the 93J330 is RoHS non-compliant. Electrical and mechanical specifications are identical.

Q: Are there any package or dimensional differences? A: No. Both parts share identical axial package specifications with dimensions of 0.233" Dia x 0.579" L (5.90mm x 14.70mm). They are mechanically interchangeable in PCB layouts designed for axial resistors.

Q: Which part should be selected for new designs? A: For new designs, the 93J330E is recommended due to ROHS3 compliance, which aligns with current environmental regulations and provides broader market acceptance. Both parts maintain identical performance characteristics.

Q: Is there a difference in temperature performance? A: No. Both parts have identical temperature coefficient specifications of ±30ppm/°C, ensuring equivalent thermal stability across operating conditions.
