Ohmite 92J10RE Equivalent & Substitute Parts

Part Overview

The Ohmite 92J10RE is a 10 Ohms ±5% 2.25W through-hole wirewound resistor with axial leads, featuring flame retardant coating and safety construction. This component is classified as Active product status and is RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained within the allowable specifications for this resistor category, ensuring functional interchangeability in circuit applications.

Substiute Parts

92J10RE

OhmiteIn Stock: 120992J10RE Datasheet

Current PartRFQ

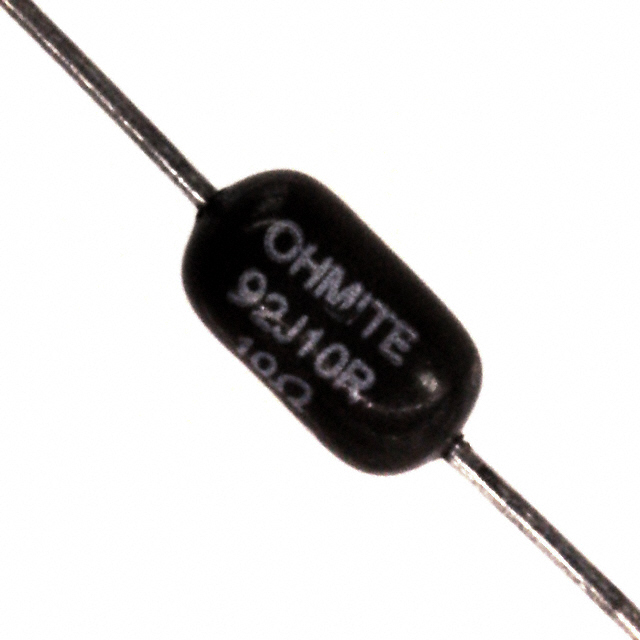

92J10R

OhmiteIn Stock: 80692J10R Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Ohmite 92J10RE are identified based on strict equivalence of the following parameters:

• Resistance value: 10 Ohms
• Tolerance: ±5%
• Power rating: 2.25W
• Composition: Wirewound
• Package configuration: Axial
• Temperature coefficient: ±30ppm/°C
• Physical dimensions: 0.220" Dia x 0.406" L (5.60mm x 10.30mm)
• Features: Flame retardant coating and safety construction

The Ohmite 92J10R meets all electrical and mechanical equivalence criteria and is classified as a parametric equivalent. Packaging differs (Bulk versus Box), which affects inventory and procurement logistics but does not impact functional performance in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

The Ohmite 92J10RE is the primary specification for applications requiring RoHS compliance. The 92J10R substitute part is electrically and mechanically equivalent but carries RoHS non-compliant status. Selection between these parts depends on regulatory requirements:

• For applications subject to RoHS directives or equivalent environmental regulations, the 92J10RE is the required selection.
• For applications without RoHS compliance mandates, the 92J10R provides functional equivalence with identical electrical performance and physical form factor.
• Both parts are Active status products from the same manufacturer, ensuring consistent quality and reliability characteristics.
• Packaging differences (Box versus Bulk) affect procurement and handling but do not influence circuit performance.

Frequently Asked Questions (FAQ)

Q: Can the 92J10R be used as a direct replacement for the 92J10RE in all applications?

A: The 92J10R is electrically and mechanically equivalent to the 92J10RE. However, RoHS compliance status differs. Use the 92J10R only in applications where RoHS compliance is not a regulatory requirement.

Q: What is the difference between Box and Bulk packaging?

A: Box packaging (92J10RE) provides individual component packaging suitable for controlled inventory and traceability. Bulk packaging (92J10R) contains loose components and is typically used for high-volume manufacturing environments. Both contain identical components with identical electrical specifications.

Q: Are the physical dimensions identical between these parts?

A: Yes. Both the 92J10RE and 92J10R share identical dimensions of 0.220" Dia x 0.406" L (5.60mm x 10.30mm), ensuring compatibility with the same PCB layouts and mechanical assemblies.

Q: What does the temperature coefficient ±30ppm/°C indicate?

A: The temperature coefficient specifies the maximum change in resistance value per degree Celsius across the operating temperature range. A ±30ppm/°C rating indicates stable resistance performance across temperature variations typical in industrial and commercial applications.

Q: Are both parts suitable for high-reliability applications?

A: Both parts feature flame retardant coating and safety construction. Selection for high-reliability applications should be based on RoHS compliance requirements and specific regulatory standards applicable to the end application.
