TE Connectivity 929948-2 Quick Connect Crimp Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity 929948-2 is a 0.110" (2.79mm) Quick Connect Male crimp terminal designed for 17-20 AWG wire applications. This component is part of the Fastin-Faston series and features a non-insulated, tin-plated copper contact suitable for free-hanging in-line mounting configurations. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

929948-2

TE Connectivity AMP ConnectorsIn Stock: 1113929948-2 Datasheet

Current PartRFQ

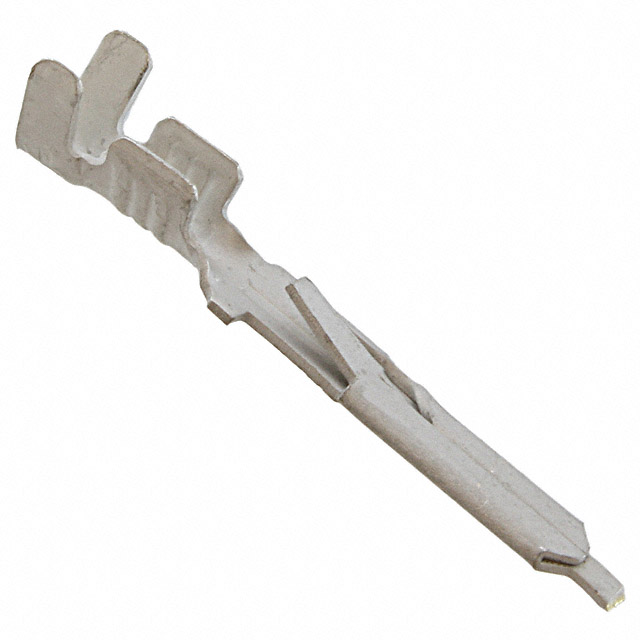

160887-4

TE Connectivity AMP ConnectorsIn Stock: 53387160887-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 160887-4 qualifies as a direct equivalent based on the following critical parameters that determine functional interchangeability:

Matching Parameters:

• Tab width: 0.110" (2.79mm) — ensures mechanical fit with mating connectors
• Tab thickness: 0.032" (0.81mm) — maintains contact pressure and electrical performance
• Wire gauge range: 17-20 AWG — supports identical conductor sizes
• Termination method: Crimp — uses the same tooling and assembly process
• Gender: Male — maintains connector polarity and mating orientation
• Insulation status: Non-Insulated — identical electrical exposure characteristics
• Mounting type: Free Hanging (In-Line) — supports same circuit board and harness configurations
• Contact finish: Tin — provides equivalent corrosion resistance and solderability
• Series: Fastin-Faston — confirms compatibility within the same connector family

The 160887-4 is an active product with significantly higher inventory availability (53,340 pcs vs. 1,024 pcs) and represents the current production equivalent for the obsolete 929948-2.

Parameter Comparison

Engineering Selection Recommendations

The 160887-4 is the direct substitute for the obsolete 929948-2 based on functional equivalence across all critical electrical and mechanical parameters. Selection of the 160887-4 is supported by the following factors:

Product Status: The 160887-4 is an active product with established production and supply chain support, whereas the 929948-2 is obsolete and subject to inventory depletion.

Regulatory Compliance: Both parts maintain RoHS compliance. The 160887-4 carries ROHS3 certification, representing current regulatory standards. Both parts are classified under identical ECCN and HTSUS codes, confirming equivalent trade and export status.

Moisture Sensitivity: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage or handling.

Contact Material Difference: The 929948-2 uses copper contacts while the 160887-4 uses brass contacts. Both materials are tin-plated and provide equivalent electrical conductivity and corrosion resistance for this application class. Brass offers superior wear resistance in repeated mating cycles.

Insulation Diameter Specification: The 160887-4 specifies a narrower insulation diameter range (0.055" ~ 0.091") compared to the 929948-2 (0.134"). This difference reflects tighter manufacturing tolerances in the current production part and does not affect compatibility with standard 17-20 AWG wire sizes.

Packaging: The 160887-4 is supplied in Cut Tape (CT) packaging, which is standard for high-volume procurement and automated assembly operations.

Frequently Asked Questions (FAQ)

Q: Can the 160887-4 be used as a direct replacement for the 929948-2 in existing designs?

A: Yes. The 160887-4 is functionally equivalent across all critical parameters: tab width, tab thickness, wire gauge range, crimp termination, gender, insulation status, and mounting type. Both parts are Fastin-Faston series terminals with identical electrical and mechanical specifications.

Q: What is the difference between the copper contact in the 929948-2 and the brass contact in the 160887-4?

A: Both materials are tin-plated and provide equivalent electrical performance for this application. Brass offers superior wear resistance during repeated mating and unmating cycles, making it the preferred material in current production designs.

Q: Why does the 160887-4 specify a narrower insulation diameter range than the 929948-2?

A: The 160887-4 reflects tighter manufacturing tolerances in current production processes. The specified range (0.055" ~ 0.091") is appropriate for standard 17-20 AWG wire sizes and does not restrict compatibility with typical conductor dimensions.

Q: Are there any compliance or regulatory differences between these parts?

A: Both parts are RoHS compliant and carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications. The 160887-4 carries ROHS3 certification, representing current regulatory standards. Both parts have MSL 1 (Unlimited) ratings with no moisture sensitivity constraints.

Q: What packaging options are available for the 160887-4?

A: The 160887-4 is supplied in Cut Tape (CT) packaging, which is standard for high-volume procurement and automated assembly operations.

Q: Is the 160887-4 currently in stock?

A: Yes. The 160887-4 has significantly higher inventory availability (53,340 pcs) compared to the obsolete 929948-2 (1,024 pcs), ensuring reliable supply for new procurement cycles.

Q: Can the same crimp tooling be used for both the 929948-2 and 160887-4?

A: Yes. Both parts use identical crimp termination specifications with matching tab width (0.110") and tab thickness (0.032"), confirming compatibility with the same crimping equipment and processes.
