3M 929852-01-05-30 Equivalent & Substitute Parts

Part Overview

The 3M 929852-01-05-30 is a 10-position receptacle connector with 0.100" (2.54mm) pitch, designed for board-to-board applications with through-hole solder termination. This connector features gold-plated mating contacts and push-pull fastening, rated for 2A at 1500V. The part is designated as Last Time Buy, indicating discontinued production. Identifying equivalent substitute parts is essential for ongoing design support, inventory management, and long-term product availability.

Key Parameters

Parameter	Value
Manufacturer Part Number	929852-01-05-30
Manufacturer	3M
Connector Type	Receptacle
Number of Positions	10
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Current Rating	2A
Voltage Rating	1500V
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 929852-01-05-30 is determined by the following critical parameters:

Connector type (Receptacle)
Number of positions (10)
Pitch - mating (0.100" / 2.54mm)
Number of rows (2)
Row spacing - mating (0.100" / 2.54mm)
Mounting type (Through Hole)
Termination (Solder)
Fastening type (Push-Pull)
Contact finish - mating (Gold)
Board-to-board style

Substitute parts must maintain these core electrical and mechanical parameters to ensure functional compatibility. Variations in contact material, insulation material, contact shape, insulation height, and contact finish thickness are permitted within the scope of equivalent substitution, provided the mating interface and electrical ratings remain compatible.

Parameter Comparison

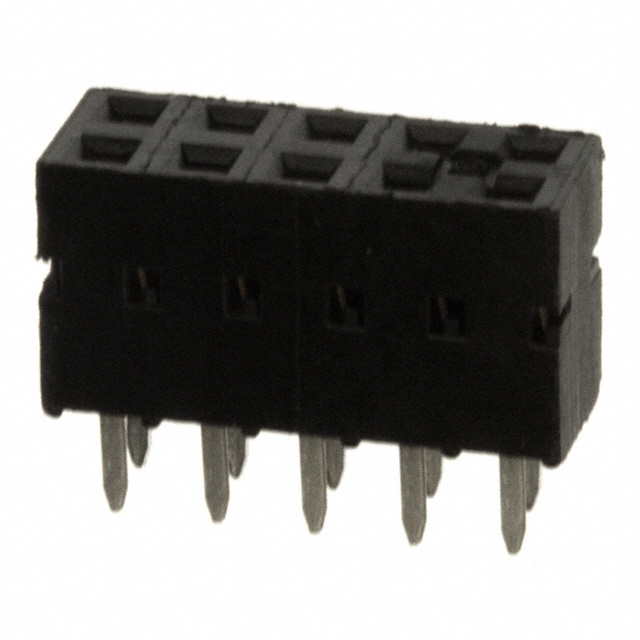

Parameter	3M 929852-01-05-30	TE 215307-5	TE 215311-5	Preci-Dip 416-83-210-41-003101	Preci-Dip 416-83-210-41-018101	Preci-Dip 416-87-210-41-003101	Preci-Dip 416-87-210-41-018101	Amphenol 68683-205LF	Amphenol 68683-305LF	Amphenol 68683-605
Connector Type	Receptacle	Receptacle	Receptacle	Socket	Socket	Socket	Socket	Receptacle	Receptacle	Receptacle
Number of Positions	10	10	10	10	10	10	10	10	10	10
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Kinked Pin, Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	31.5µin (0.80µm)	31.5µin (0.80µm)	29.5µin (0.75µm)	29.5µin (0.75µm)	Flash	Flash	15.0µin (0.38µm)	30.0µin (0.76µm)	30.0µin (0.76µm)
Insulation Height	0.325" (8.25mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.315" (8.00mm)	0.276" (7.00mm)	0.315" (8.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)
Contact Length - Post	0.125" (3.18mm)	0.122" (3.10mm)	0.122" (3.10mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.126" (3.20mm)	0.115" (2.92mm)	0.115" (2.92mm)	0.115" (2.92mm)
Operating Temperature	-40°C ~ 105°C	Not specified	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	Not specified	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Voltage Rating	1500V	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified	1000V	1000V	1000V
Current Rating	2A	Not specified	Not specified	3A	3A	3A	3A	Not specified	Not specified	Not specified
RoHS Status	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS non-compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

All listed substitute parts maintain the core mechanical and electrical interface parameters required for functional compatibility with the 3M 929852-01-05-30. Selection should prioritize product status and compliance requirements:

Active Status Parts (Recommended for New Designs): TE Connectivity 215307-5 and 215311-5 are active products with RoHS compliance. Preci-Dip 416-83-210-41-003101, 416-83-210-41-018101, 416-87-210-41-003101, and 416-87-210-41-018101 are active with ROHS3 compliance. Amphenol ICC 68683-205LF and 68683-305LF are active with RoHS compliance.

Compliance Considerations: For applications requiring RoHS compliance, avoid Amphenol ICC 68683-605, which is RoHS non-compliant. TE Connectivity 215307-5 and Amphenol ICC 68683-205LF and 68683-305LF maintain RoHS compliance status matching the original part.

Obsolete Status: Amphenol ICC 68683-305 is designated obsolete and should not be selected for new designs or long-term inventory planning.

Electrical Rating Differences: Amphenol ICC Dubox series parts (68683-205LF, 68683-305LF, 68683-605) are rated for 1000V, which is lower than the original 1500V rating. Applications requiring the full 1500V rating should select TE Connectivity or Preci-Dip alternatives where voltage specifications are not explicitly reduced.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 215307-5 and 215311-5 be used as direct replacements for the 3M 929852-01-05-30?

A: Yes. Both parts maintain the same 10-position, 0.100" pitch, board-to-board, through-hole solder configuration with push-pull fastening and gold-plated mating contacts. TE Connectivity parts are active products with RoHS compliance.

Q: What is the difference between Preci-Dip 416-83 and 416-87 series?

A: Both series are 10-position, 0.100" pitch socket connectors with identical mechanical and electrical interfaces. The primary difference is contact finish thickness on the mating surface: 416-83 series specifies 29.5µin (0.75µm), while 416-87 series specifies Flash thickness. Both are suitable substitutes.

Q: Why do Preci-Dip parts list "Socket" as connector type while the original is "Receptacle"?

A: Preci-Dip 416 series parts are socket connectors designed to mate with pin headers. The 3M 929852-01-05-30 is a receptacle connector designed to accept pins. Both connector types serve equivalent functional roles in board-to-board applications and maintain compatible mating interfaces at the 0.100" pitch standard.

Q: Are there voltage rating differences between substitute parts?

A: Yes. The original 3M part is rated for 1500V. Amphenol ICC Dubox series (68683-205LF, 68683-305LF, 68683-605) are rated for 1000V. TE Connectivity and Preci-Dip parts do not specify voltage ratings in the provided data. For applications requiring 1500V operation, verify substitute part voltage specifications with manufacturer datasheets.

Q: What is the significance of the "Last Time Buy" status on the original part?

A: Last Time Buy indicates the manufacturer has discontinued production. Existing inventory may be available, but no future production is planned. Identifying and qualifying substitute parts is necessary for long-term product support and design continuity.

Q: Do all substitute parts have the same current rating as the original 2A specification?

A: No. Preci-Dip 416 series parts are rated for 3A. TE Connectivity and Amphenol ICC parts do not specify current ratings in the provided data. For applications with specific current requirements, consult manufacturer datasheets to confirm suitability.

Q: What packaging options are available for these substitute parts?

A: TE Connectivity 215307-5 is supplied in Tray packaging. Preci-Dip 416 series and Amphenol ICC 68683-205LF, 68683-305LF, and 68683-605 are supplied in Bulk or Tube packaging. Original 3M 929852-01-05-30 is supplied in Bulk. Packaging differences do not affect electrical or mechanical compatibility.

Q: Are all substitute parts RoHS compliant?

A: Most substitute parts are RoHS or ROHS3 compliant. Amphenol ICC 68683-605 is RoHS non-compliant and should not be used in applications requiring RoHS compliance. Verify compliance requirements for your specific application before part selection.
