TE Connectivity 929504-5 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

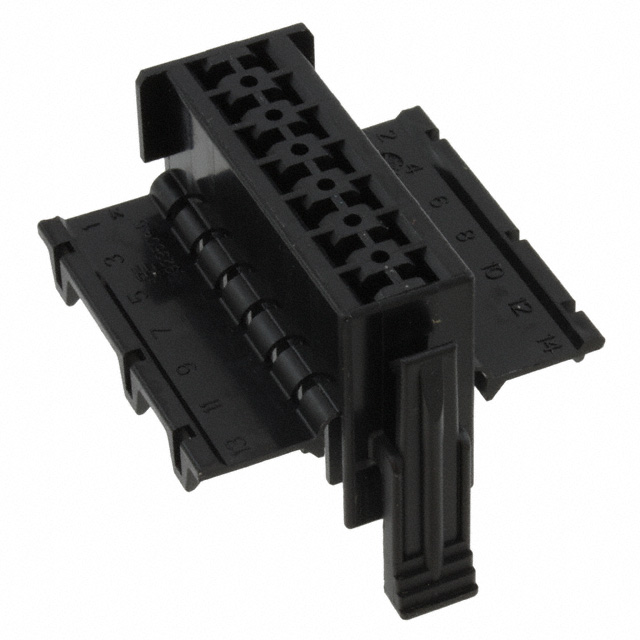

The TE Connectivity 929504-5 is a 14-position receptacle housing for rectangular connectors in the Junior Power Timer series. This component serves as the female socket housing for applications requiring a 5.00mm pitch connector interface. The part is classified as Active product status with 3200 units in current inventory stock.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector housing specifications, allowing for interchangeability in applications where the core functional requirements remain constant.

Substiute Parts

929504-5

TE Connectivity AMP ConnectorsIn Stock: 3289929504-5 Datasheet

Current PartRFQ

1-929504-5

TE Connectivity AMP ConnectorsIn Stock: 16271-929504-5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 929504-5 housing is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (14)
• Pitch specification (0.197" / 5.00mm)
• Row configuration (2 rows at 0.220" / 5.60mm spacing)
• Contact termination method (Crimp)

Mechanical Parameters:

• Mounting configuration (Free Hanging In-Line)
• Insulation material (Polybutylene Terephthalate)
• Series classification (Junior Power Timer)

Compliance Parameters:

• RoHS compliance status
• Moisture Sensitivity Level (MSL 1)

Substitute parts maintain identical electrical and mechanical specifications while potentially differing in color designation and specific RoHS certification revision level. All substitute parts are sourced from the same manufacturer (TE Connectivity AMP Connectors) and share the same base product number (929504).

Parameter Comparison

Engineering Selection Recommendations

Both the 929504-5 and 1-929504-5 are Active product status components manufactured by TE Connectivity AMP Connectors. Selection between these parts is based on the following criteria:

929504-5 (Black Housing):

• Primary selection for applications requiring black insulation material
• RoHS Compliant certification
• Higher inventory availability (3200 units)
• HTSUS classification: 8536.69.8000

1-929504-5 (Natural Housing):

• Primary selection for applications requiring natural color insulation material
• ROHS3 Compliant certification (updated RoHS revision)
• Secondary inventory availability (1544 units)
• HTSUS classification: 8538.90.6000

Both parts maintain identical electrical and mechanical specifications within the Junior Power Timer series. Selection should be driven by application-specific color requirements and compliance certification requirements. Both parts carry MSL 1 rating and are suitable for unlimited moisture exposure conditions.

Frequently Asked Questions (FAQ)

Q: Can 1-929504-5 be used as a direct replacement for 929504-5?

A: Yes, the 1-929504-5 is a parametric equivalent substitute. All electrical and mechanical specifications are identical, including connector type, position count, pitch, row configuration, mounting type, and termination method. The primary difference is the housing color (Natural versus Black).

Q: What is the significance of the color difference between these parts?

A: The color difference (Black for 929504-5 versus Natural for 1-929504-5) is a cosmetic and material designation only. Both use identical Polybutylene Terephthalate insulation material. Color selection should be based on application requirements or assembly documentation specifications.

Q: Are there differences in RoHS compliance between these parts?

A: Both parts are RoHS compliant. The 929504-5 carries RoHS Compliant certification, while the 1-929504-5 carries ROHS3 Compliant certification. ROHS3 represents an updated revision of the RoHS directive. Both certifications satisfy RoHS requirements.

Q: Do these housings include contacts?

A: No. Both the 929504-5 and 1-929504-5 are housings only. Contacts are not included and must be sourced separately. The housing accommodates 14 crimp-terminated contacts in a 2-row configuration.

Q: What is the pitch specification and why is it important?

A: The pitch is 0.197 inches (5.00mm), representing the center-to-center distance between adjacent contact positions. This specification must match the mating connector and contact specifications for proper assembly and electrical performance.

Q: Can these housings be used in applications with temperature extremes?

A: Operating temperature specifications are not provided in the product documentation. Consult TE Connectivity technical documentation or contact the manufacturer for thermal operating range information specific to your application requirements.

Q: What does MSL 1 (Unlimited) mean for moisture sensitivity?

A: MSL 1 indicates the lowest moisture sensitivity level. These components can be stored and handled without special moisture control measures and have unlimited shelf life under standard conditions.

Q: Are these parts suitable for export?

A: Both parts carry ECCN classification EAR99, which generally indicates items not subject to export licensing requirements. Verify current export regulations for your specific destination and application.
