TE Connectivity 928781-3 Quick Connect Crimp Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity 928781-3 is a 0.110" (2.79mm) Quick Connect Male crimp connector terminal designed for 13-17 AWG wire applications. This component belongs to the Fastin-Faston series and is classified as a non-insulated, free-hanging terminal for inline mounting. The 928781-3 is currently listed as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and repair applications.

Key Parameters

Parameter	Specification
Tab Width	0.110" (2.79mm)
Tab Thickness	0.032" (0.81mm)
Wire Gauge	13-17 AWG
Termination Method	Crimp
Gender	Male
Insulation Type	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Copper
Insulation Diameter	0.071" ~ 0.114" (1.80mm ~ 2.90mm)
Series	Fastin-Faston

Substitute Part Grouping Explanation

Substitution of the 928781-3 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Tab Width: 0.110" (2.79mm)
Tab Thickness: 0.032" (0.81mm)
Wire Gauge: 13-17 AWG
Gender: Male
Termination Method: Crimp
Contact Material: Copper
Insulation Type: Non-Insulated
Mounting Type: Free Hanging (In-Line)
Insulation Diameter Range: 0.071" ~ 0.114" (1.80mm ~ 2.90mm)

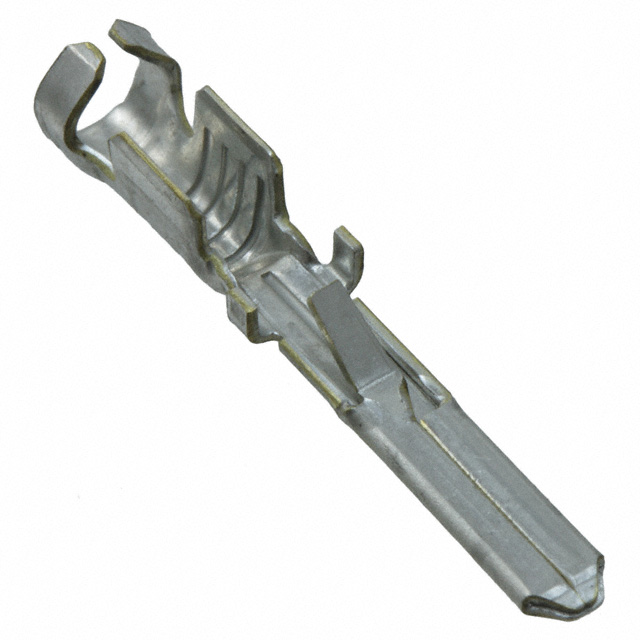

The substitute part 928781-2 maintains full electrical and mechanical compatibility with the 928781-3 across all critical parameters. The primary distinction is product status: 928781-2 is active and available in higher inventory quantities, whereas 928781-3 is obsolete. Secondary differences include packaging format and contact finish specifications, which do not affect functional interchangeability in the application.

Parameter Comparison

Parameter	928781-3 (Main Part)	928781-2 (Substitute)	Compatibility
Tab Width	0.110" (2.79mm)	0.110" (2.79mm)	Identical
Tab Thickness	0.032" (0.81mm)	0.032" (0.81mm)	Identical
Wire Gauge	13-17 AWG	13-17 AWG	Identical
Gender	Male	Male	Identical
Termination	Crimp	Crimp	Identical
Contact Material	Copper	Copper	Identical
Insulation Type	Non-Insulated	Non-Insulated	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
Insulation Diameter	0.071" ~ 0.114" (1.80mm ~ 2.90mm)	0.071" ~ 0.114" (1.80mm ~ 2.90mm)	Identical
Contact Finish	Not Specified	Tin	928781-2 includes tin finish
Product Status	Obsolete	Active	928781-2 is current production
Packaging	Not Specified	Cut Tape (CT)	928781-2 supplied in CT format

Engineering Selection Recommendations

The 928781-2 is the direct functional equivalent for the obsolete 928781-3. Selection of 928781-2 is supported by the following engineering factors:

Product Status: The 928781-2 maintains active production status with TE Connectivity, ensuring long-term supply chain stability and availability. The 928781-3 is obsolete and subject to discontinuation without notice.

Compliance Certifications: Both parts maintain RoHS compliance. The 928781-2 carries ROHS3 Compliant designation, representing current regulatory alignment. Both parts are classified as EAR99 under ECCN and carry identical HTSUS codes (8536.90.4000).

Electrical and Mechanical Equivalence: All critical parameters determining connector function and interchangeability are identical between the two parts. The tab width, thickness, wire gauge accommodation, and contact material specifications ensure direct substitution without design modification.

Inventory Availability: The 928781-2 is available in significantly higher quantities (2400 pcs) compared to remaining 928781-3 stock (835 pcs), supporting both immediate and sustained production requirements.

Frequently Asked Questions (FAQ)

Q: Can 928781-2 be used as a direct replacement for 928781-3 in existing designs?

A: Yes. The 928781-2 is electrically and mechanically equivalent to the 928781-3 across all functional parameters. No design modification is required for substitution.

Q: What is the difference between the 928781-3 and 928781-2?

A: The primary difference is product status: 928781-3 is obsolete while 928781-2 is active production. The 928781-2 includes a tin contact finish and is supplied in Cut Tape packaging. Both parts share identical tab dimensions, wire gauge ratings, and mounting specifications.

Q: Are there any compatibility concerns when switching from 928781-3 to 928781-2?

A: No compatibility concerns exist. Both terminals accommodate 13-17 AWG wire, feature identical 0.110" tab width and 0.032" thickness, and are designed for the same Fastin-Faston connector system.

Q: What packaging format is the 928781-2 supplied in?

A: The 928781-2 is supplied in Cut Tape (CT) packaging format, which is standard for high-volume production applications.

Q: Do both parts meet current regulatory requirements?

A: Yes. Both the 928781-3 and 928781-2 are RoHS compliant and carry EAR99 ECCN classification. The 928781-2 carries the current ROHS3 Compliant designation.

Q: What wire gauge range do these terminals support?

A: Both terminals are rated for 13-17 AWG wire with an insulation diameter range of 0.071" to 0.114" (1.80mm to 2.90mm).
