TE Connectivity AMP Connectors 928247-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 928247-6 is a 6-position rectangular connector receptacle housing designed for inline applications with a 5.00mm pitch. This component serves as the housing element in rectangular connector assemblies and operates across an industrial temperature range of -40°C to 110°C. The part is actively manufactured and RoHS compliant, making it suitable for modern electronic equipment requiring environmental and regulatory compliance. Substitute parts are identified when equivalent electrical and mechanical specifications are maintained while offering alternative configurations or availability options.

Substiute Parts

928247-6

TE Connectivity AMP ConnectorsIn Stock: 1181928247-6 Datasheet

Current PartRFQ

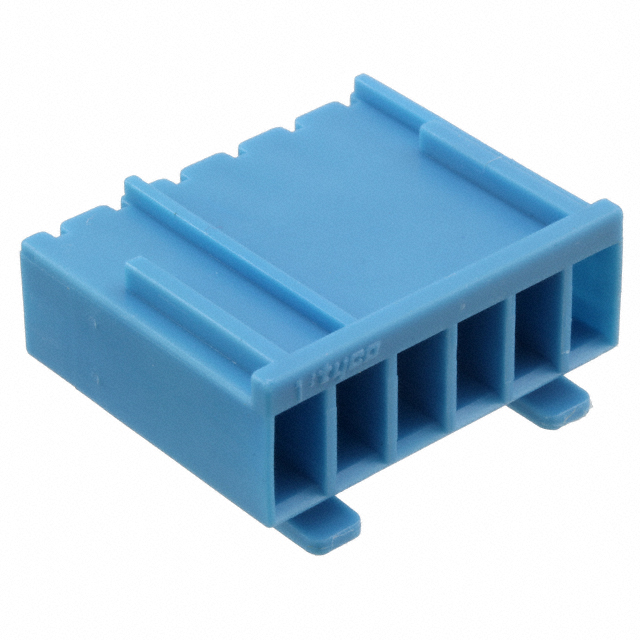

2-928247-6

TE Connectivity AMP ConnectorsIn Stock: 9872-928247-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 928247-6 are identified based on strict equivalence of the following critical parameters:

• Connector Type: Receptacle housing
• Contact Type: Female Socket
• Number of Positions: 6
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Operating Temperature Range: -40°C to 110°C
• Base Product Number: 928247

The substitute part 2-928247-6 maintains all critical electrical and mechanical parameters required for functional interchangeability. The primary difference is the housing color (Blue versus Gray), which does not affect electrical performance or mechanical compatibility. Both parts share the same base product number, confirming their equivalence within the TE Connectivity AMP Connectors product line.

Parameter Comparison

Engineering Selection Recommendations

Both the 928247-6 and 2-928247-6 are active products from TE Connectivity AMP Connectors with full regulatory compliance. The 928247-6 carries RoHS Compliant certification, while the 2-928247-6 carries ROHS3 Compliant certification, indicating enhanced compliance standards for the substitute part. Both parts maintain MSL Level 1 (Unlimited) moisture sensitivity, eliminating moisture-related handling constraints.

Selection between these parts should be based on:

1. Availability: Current inventory levels and supply chain requirements
2. Color Coding Requirements: Gray (928247-6) or Blue (2-928247-6) for circuit board or assembly identification
3. Regulatory Requirements: ROHS3 compliance (2-928247-6) for applications requiring enhanced environmental standards
4. Insulation Material Specification: PA66/Nylon 6/6 (928247-6) versus PA/Nylon (2-928247-6)

Both parts are functionally equivalent for applications requiring 6-position, 5.00mm pitch rectangular connector receptacles with crimp termination and latch lock fastening.

Frequently Asked Questions (FAQ)

Q: Are the 928247-6 and 2-928247-6 electrically interchangeable?

A: Yes. Both parts maintain identical electrical specifications including connector type (receptacle), contact type (female socket), number of positions (6), pitch (5.00mm), contact termination (crimp), and fastening type (latch lock). They operate across the same temperature range (-40°C to 110°C).

Q: What is the difference between these two parts?

A: The primary differences are housing color (Gray versus Blue) and insulation material specification (PA66/Nylon 6/6 versus PA/Nylon). The 2-928247-6 also carries ROHS3 compliance versus RoHS compliance for the 928247-6. These differences do not affect mechanical or electrical compatibility.

Q: Can I use 2-928247-6 as a direct replacement for 928247-6?

A: Yes, the 2-928247-6 is a direct substitute for the 928247-6 in applications where the housing color and enhanced RoHS3 compliance are acceptable or beneficial.

Q: Do these parts include contacts?

A: No. Both the 928247-6 and 2-928247-6 are connector housings only. Contacts must be sourced separately and crimped into the housing.

Q: What mounting configuration do these parts support?

A: Both parts are configured for Free Hanging (In-Line) mounting, suitable for cable assemblies and inline connector applications.

Q: Are there any temperature limitations for these parts?

A: Both parts operate across the industrial temperature range of -40°C to 110°C. No additional thermal derating is required within this range.

Q: What is the moisture sensitivity level for these parts?

A: Both parts carry MSL Level 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.
