TE Connectivity 928206-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 928206-5 is a 5-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line mounting applications. This component features crimp-type female socket contacts and is manufactured in green polybutylene terephthalate material. The part maintains Active product status and carries ROHS3 compliance certification.

Substitute parts become necessary when the original part number experiences extended lead times, inventory constraints, or when design requirements permit alternative housing materials, colors, or operating temperature ranges while maintaining core electrical and mechanical compatibility.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	5
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Packaging	Bulk
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 928206-5 is determined by strict equivalence across the following critical parameters:

Core Compatibility Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 5
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Variable Parameters (Permit Substitution):

Housing Color (Green, Black, Blue)
Insulation Material (PBT Glass Filled, Polyester Glass Filled, Thermoplastic, Polyamide PA66, Polyphenylene Modified)
Operating Temperature Range
Manufacturer (TE Connectivity AMP Connectors, Amphenol ICC)
Series Designation
RoHS Compliance Status (ROHS3 or RoHS Compliant)

All identified substitute parts maintain identical electrical and mechanical interface specifications, ensuring direct functional interchangeability within the connector housing category.

Parameter Comparison

Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
928206-5	TE Connectivity AMP Connectors	—	Green	—	—	ROHS3 Compliant	1133
1-1418775-1	TE Connectivity AMP Connectors	Micro Quadlok	Black	PBT, Glass Filled	-40°C ~ 80°C	RoHS Compliant	11238
1-87175-2	TE Connectivity AMP Connectors	AMPMODU	Black	Polyester, Glass Filled	-65°C ~ 105°C	RoHS Compliant	9734

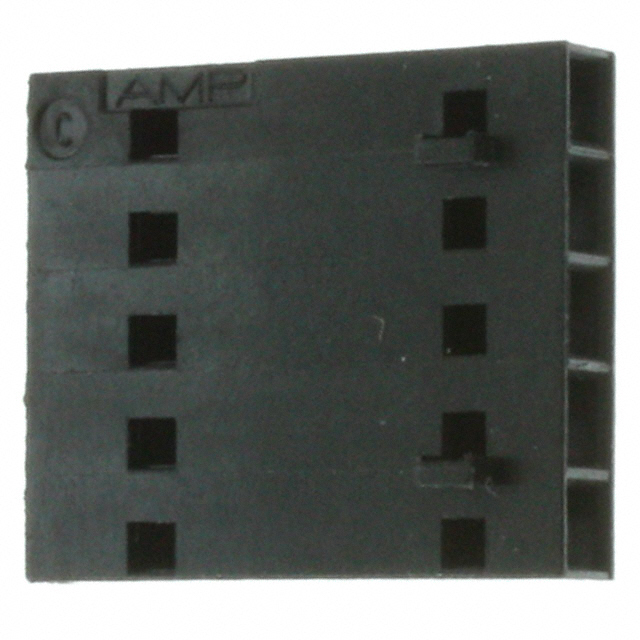

103648-4	TE Connectivity AMP Connectors	AMPMODU MTE	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	1110

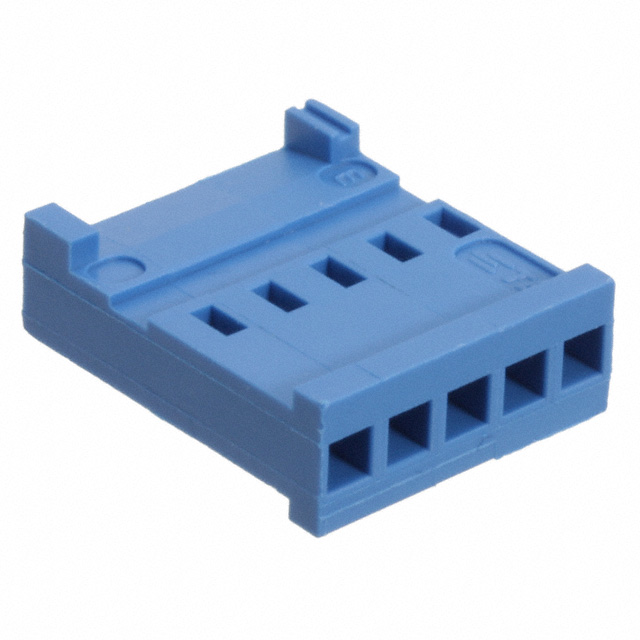

281838-5	TE Connectivity AMP Connectors	HE13/HE14	Blue	PBT, Glass Filled	-55°C ~ 125°C	RoHS Compliant	4649
925369-5	TE Connectivity AMP Connectors	AMPMODU Mod IV	Green	Polyamide (PA66), Nylon 6/6	-65°C ~ 105°C	ROHS3 Compliant	11606

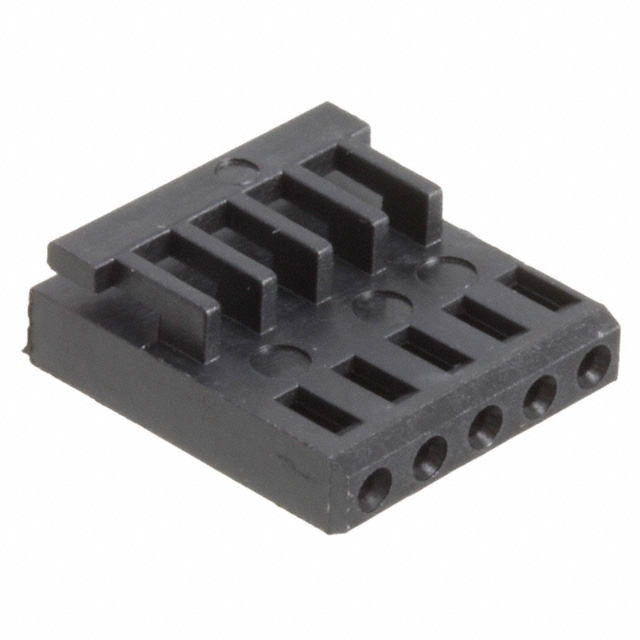

926475-5	TE Connectivity AMP Connectors	AMPMODU Mod IV	Black	PBT, Glass Filled	-65°C ~ 105°C	ROHS3 Compliant	16869
65039-032LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	3315
65240-005LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	3073

Engineering Selection Recommendations

Primary Substitutes (Highest Compatibility):

The parts 925369-5 and 926475-5 represent the closest functional equivalents to the 928206-5. Both maintain ROHS3 compliance status matching the original part and belong to the AMPMODU Mod IV series. Part 925369-5 preserves the green housing color of the original specification, while 926475-5 offers superior inventory availability (16,869 units) with extended operating temperature range (-65°C ~ 105°C) and identical mechanical interface specifications.

Secondary Substitutes (Alternative Compliance Profiles):

Parts 1-87175-2, 103648-4, 281838-5, and 926475-5 carry RoHS Compliant certification and maintain Active product status. These options accommodate applications where ROHS3 designation is not mandatory. Part 281838-5 provides the widest operating temperature range (-55°C ~ 125°C) and is suitable for thermal-demanding environments. Part 1-87175-2 offers the AMPMODU series designation with established market presence and 9,734 units in inventory.

Cross-Manufacturer Options:

Amphenol ICC parts 65039-032LF and 65240-005LF provide alternative sourcing from an established connector manufacturer. Both maintain RoHS Compliant status and unlimited moisture sensitivity rating. Part 65240-005LF extends the operating temperature to -65°C ~ 125°C, matching the highest thermal specification available in the substitute group.

Inventory Considerations:

Part 926475-5 demonstrates the highest inventory level (16,869 units), followed by 925369-5 (11,606 units) and 1-1418775-1 (11,238 units). The original part 928206-5 maintains 1,133 units in stock.

Frequently Asked Questions (FAQ)

Q: Can I substitute 928206-5 with any of the listed parts without design modification?

A: Yes. All listed substitute parts maintain identical electrical and mechanical interface specifications: 5-position receptacle housing, 0.100" (2.54mm) pitch, female socket contacts, crimp termination, and free-hanging in-line mounting. Direct substitution is supported at the connector housing level. Verify that your application does not impose specific color or material requirements beyond these core parameters.

Q: What is the difference between ROHS3 Compliant and RoHS Compliant designations?

A: ROHS3 Compliant indicates compliance with the third iteration of the Restriction of Hazardous Substances directive, incorporating the most current regulatory requirements. RoHS Compliant indicates compliance with earlier RoHS standards. Both certifications restrict hazardous substances in electrical and electronic equipment. Selection between these designations depends on your regulatory jurisdiction and procurement requirements.

Q: Does housing color affect electrical performance?

A: Housing color is a visual identification feature only and does not affect electrical performance or mechanical compatibility. Color selection is driven by application requirements, assembly documentation, or internal color-coding standards. All substitute parts with different colors maintain identical electrical specifications.

Q: Which substitute part offers the widest operating temperature range?

A: Parts 281838-5 and 65240-005LF both support -55°C ~ 125°C and -65°C ~ 125°C operating ranges respectively, representing the highest thermal specifications in the substitute group. The original 928206-5 does not specify an operating temperature range. Select based on your application's thermal environment requirements.

Q: Are contacts included with these connector housings?

A: No. All parts in this group, including the original 928206-5, are connector housings only. Contacts are not included and must be sourced separately. Ensure that replacement contacts are compatible with the 0.100" (2.54mm) pitch and crimp termination specification.

Q: Can I use Amphenol ICC parts as direct replacements for TE Connectivity parts?

A: Yes. Parts 65039-032LF and 65240-005LF from Amphenol ICC (FCI) maintain identical core specifications and are functionally interchangeable. Both carry RoHS Compliant certification and unlimited moisture sensitivity rating. Cross-manufacturer substitution is supported provided your application does not impose manufacturer-specific requirements.

Q: What does Moisture Sensitivity Level 1 (Unlimited) mean?

A: MSL 1 (Unlimited) indicates that the component has no moisture sensitivity restrictions and does not require special handling, storage, or baking procedures prior to assembly. This classification applies to all parts in this group and simplifies supply chain management.

Q: Which substitute offers the best inventory availability?

A: Part 926475-5 maintains the highest inventory level at 16,869 units, followed by 925369-5 at 11,606 units and 1-1418775-1 at 11,238 units. Inventory levels support rapid procurement and reduce lead time risk for high-volume applications.
