TE Connectivity 928205-6 Equivalent & Substitute Parts
Part Overview
The TE Connectivity 928205-6 is a 6-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line mounting applications. This component features crimp-style female socket contacts and is manufactured from Polybutylene Terephthalate (PBTP) insulation material in natural color. The part is RoHS Compliant and carries an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage and handling.
The 928205-6 is an active product with 983 pieces currently in stock. Equivalent and substitute parts are identified based on matching electrical and mechanical parameters including connector type, contact configuration, pitch specification, mounting style, and termination method. Alternative models may be required due to inventory availability, color specification requirements, material composition preferences, or operating temperature range considerations.
Substiute Parts
Key Parameters
| Parameter | Specification |
|---|---|
| Manufacturer Part Number | 928205-6 |
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Rectangular Connectors |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 6 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Insulation Material | Polybutylene Terephthalate (PBTP) |
| Color | Natural |
| Product Status | Active |
| RoHS Status | RoHS Compliant |
| MSL Rating | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitute parts for the 928205-6 are qualified based on the following critical parameters that determine functional and mechanical compatibility:
Electrical Parameters:
- Connector Type: Receptacle
- Contact Type: Female Socket
- Number of Positions: 6
- Pitch: 0.100" (2.54mm)
- Contact Termination: Crimp
Mechanical Parameters:
- Number of Rows: 1
- Mounting Type: Free Hanging (In-Line)
Material and Environmental Parameters:
- Insulation Material: Thermoplastic or glass-filled polymer variants
- Moisture Sensitivity Level: 1 (Unlimited)
- Product Status: Active
Substitute parts are grouped into two categories: TE Connectivity AMP Connectors variants and cross-manufacturer alternatives. TE Connectivity variants differ primarily in insulation material composition, color specification, and operating temperature range. The Molex 0050579306 represents a cross-manufacturer alternative that maintains all critical electrical and mechanical parameters while offering different material properties and temperature operating range.
Parameter Comparison
| Part Number | Manufacturer | Connector Type | Positions | Pitch | Contact Type | Mounting Type | Insulation Material | Color | Operating Temperature | RoHS Status |
|---|---|---|---|---|---|---|---|---|---|---|
| 928205-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PBTP | Natural | Not Specified | RoHS Compliant |
| 1-87175-3 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PA, Nylon, Glass Filled | Black | -65°C ~ 105°C | ROHS3 Compliant |
| 1-87175-4 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | Polyester, Glass Filled | Black | -65°C ~ 105°C | ROHS3 Compliant |
| 103648-5 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | Thermoplastic | Black | -65°C ~ 105°C | RoHS Compliant |
| 281838-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PBT, Glass Filled | Black | -55°C ~ 125°C | ROHS3 Compliant |
| 925366-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PA, Nylon | Green | -65°C ~ 105°C | RoHS Compliant |
| 925369-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PA66, Nylon 6/6 | Green | -65°C ~ 105°C | ROHS3 Compliant |
| 926475-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PBT, Glass Filled | Black | -65°C ~ 105°C | RoHS Compliant |
| 926657-6 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | PBT | Black | -65°C ~ 105°C | RoHS Compliant |
| 0050579306 | Molex | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | Polyester, Glass Filled | Black | -40°C ~ 105°C | ROHS3 Compliant |
| 103688-5 | TE Connectivity | Receptacle | 6 | 0.100" | Female Socket | Free Hanging | Thermoplastic | Black | -65°C ~ 105°C | ROHS3 Compliant |
Engineering Selection Recommendations
All substitute parts listed maintain the core electrical and mechanical specifications required for direct functional replacement of the 928205-6. Selection among alternatives is determined by specific application requirements and environmental constraints.
TE Connectivity AMPMODU Series (1-87175-3, 1-87175-4, 926657-6): These parts offer black color variants with operating temperature range of -65°C to 105°C. The 1-87175-3 and 1-87175-4 feature glass-filled insulation materials (Polyamide and Polyester respectively) and carry ROHS3 Compliant certification. The 926657-6 uses unfilled Polybutylene Terephthalate and is RoHS Compliant. These options provide higher inventory availability compared to the main part.

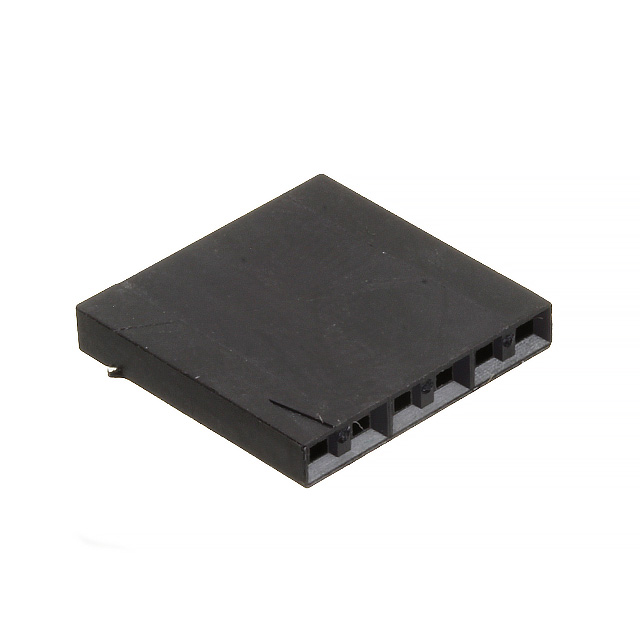

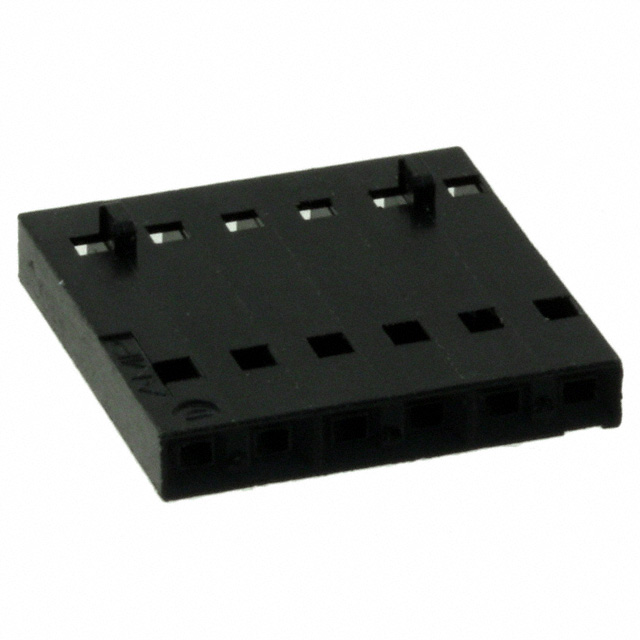

TE Connectivity AMPMODU MTE Series (103648-5, 103688-5): Both parts utilize thermoplastic insulation material with operating temperature range of -65°C to 105°C. The 103648-5 is RoHS Compliant while 103688-5 is ROHS3 Compliant. These variants offer alternative material composition for specific application requirements.
TE Connectivity HE13/HE14 Series (281838-6): This part features glass-filled Polybutylene Terephthalate insulation and operates across an extended temperature range of -55°C to 125°C. It carries ROHS3 Compliant certification and maintains the highest inventory level (63,430 pieces) among all substitutes.
TE Connectivity AMPMODU Mod IV Series (925366-6, 925369-6, 926475-6): These parts offer color variants (green for 925366-6 and 925369-6; black for 926475-6) with operating temperature range of -65°C to 105°C. The 926475-6 features glass-filled Polybutylene Terephthalate and is RoHS Compliant with substantial inventory (28,876 pieces). The 925366-6 and 925369-6 use Polyamide-based materials with RoHS and ROHS3 compliance respectively.
Molex SL 70066 Series (0050579306): This cross-manufacturer alternative maintains all critical electrical and mechanical parameters with glass-filled polyester insulation. Operating temperature range is -40°C to 105°C, which covers standard industrial applications. ROHS3 Compliant certification and REACH Unaffected status are provided.
Selection criteria based on provided specifications:
- Color requirement: Natural (928205-6 main part); Black (multiple alternatives); Green (925366-6, 925369-6)
- Temperature range: Extended range available with 281838-6 (-55°C to 125°C)
- Compliance level: ROHS3 Compliant options available for updated regulatory requirements
- Inventory availability: 281838-6 and 926475-6 offer highest stock levels
- Material composition: Glass-filled variants for enhanced mechanical properties; thermoplastic options for alternative material requirements
Frequently Asked Questions (FAQ)
Q: Can the 928205-6 be directly replaced with any of the listed substitute parts?
A: All listed substitute parts maintain identical electrical and mechanical specifications: 6-position receptacle housing, 0.100" (2.54mm) pitch, female socket contacts, crimp termination, and free-hanging in-line mounting. Direct functional replacement is supported for all alternatives. Color and material composition differences do not affect electrical compatibility.
Q: What is the primary difference between the 928205-6 and its substitutes?
A: The main part features natural-colored Polybutylene Terephthalate (PBTP) insulation without glass filling. Substitute parts offer variations in color (black or green), insulation material composition (glass-filled variants, thermoplastic, polyamide, or polyester), and operating temperature ranges. All alternatives maintain the same connector configuration and contact specifications.
Q: Which substitute part offers the widest operating temperature range?
A: The TE Connectivity 281838-6 (HE13/HE14 Series) operates across -55°C to 125°C, providing the extended temperature capability compared to the main part and most alternatives. This part is suitable for applications requiring enhanced thermal performance.
Q: Are there any compliance differences between the main part and substitutes?
A: The main part 928205-6 is RoHS Compliant. Several substitutes carry ROHS3 Compliant certification, which represents updated regulatory compliance. The Molex 0050579306 is ROHS3 Compliant with REACH Unaffected status. All parts maintain MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions.
Q: What inventory levels are available for each substitute?
A: Inventory varies significantly among alternatives. The 281838-6 offers the highest availability with 63,430 pieces in stock. The 926475-6 provides 28,876 pieces. The 1-87175-4 offers 3,116 pieces. Smaller quantities are available for specialized variants such as 925369-6 (1,737 pieces) and 103688-5 (2,026 pieces).
Q: Can I use the Molex 0050579306 as a substitute for the TE Connectivity 928205-6?
A: The Molex 0050579306 maintains all critical electrical and mechanical parameters required for functional replacement. It features 6-position receptacle configuration, 0.100" (2.54mm) pitch, female socket contacts, and crimp termination. The operating temperature range is -40°C to 105°C, which covers standard industrial applications. ROHS3 Compliant certification is provided. Cross-manufacturer substitution is supported based on matching specifications.
Q: What material options are available among the substitute parts?
A: Substitute parts offer multiple insulation material options: Polybutylene Terephthalate (PBT) with and without glass filling, Polyamide (PA) with and without glass filling, Polyester with glass filling, and generic thermoplastic compositions. Material selection depends on specific mechanical property requirements and environmental exposure conditions.
Q: Are contacts included with the 928205-6 and substitute parts?
A: Contacts are not included with any of the listed parts. All connector housings are supplied without pre-installed contacts. Contacts must be sourced separately and crimped into the housing according to application requirements and connector specifications.
Q: Which substitute offers the best balance of availability and compliance?
A: The TE Connectivity 926475-6 (AMPMODU Mod IV Series) provides substantial inventory (28,876 pieces), RoHS Compliant certification, glass-filled Polybutylene Terephthalate insulation for enhanced mechanical properties, and operating temperature range of -65°C to 105°C. The 281838-6 offers even higher availability (63,430 pieces) with ROHS3 Compliant certification and extended temperature range (-55°C to 125°C).
