Amphenol ICC 92652-005LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 92652-005LF is a 10-position rectangular connector housing with 0.100" (2.54mm) pitch, designed for crimp termination in free-hanging in-line applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement continuity. The housing accommodates female socket contacts and is available in black thermoplastic construction with a 2-row configuration.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 92652-005LF are qualified based on strict electrical and mechanical parameter matching:

Primary Substitution Criteria:

Connector type: Receptacle
Contact type: Female socket
Position count: 10
Pitch: 0.100" (2.54mm)
Row configuration: 2 rows at 0.100" spacing
Mounting: Free hanging in-line
Termination: Crimp
Moisture sensitivity: MSL 1

All substitute parts listed maintain these core parameters, ensuring mechanical and electrical compatibility with the original 92652-005LF housing. Variations in color, insulation material, operating temperature range, and fastening type do not affect the fundamental substitution relationship for this connector housing category.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Connector Type	Positions	Pitch	Rows	Row Spacing	Contact Type	Mounting	Termination	Color	Product Status	MSL
92652-005LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Obsolete	1
65239-005LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Blue	Active	1
0022552101	Molex	SL 70450	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1
102387-1	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1
87631-6	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1

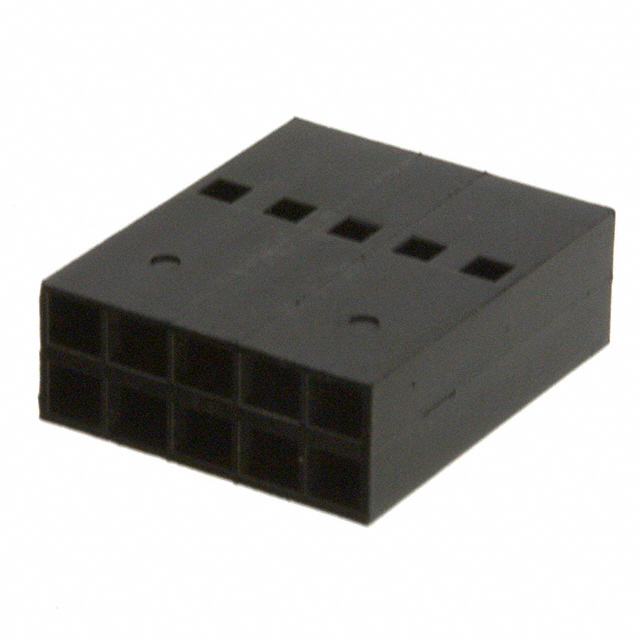

0901430010	Molex	C-Grid III 90143	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1
87456-6	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1
87977-3	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1
926476-5	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	10	0.100" (2.54mm)	2	0.100" (2.54mm)	Female Socket	Free Hanging (In-Line)	Crimp	Black	Active	1

Engineering Selection Recommendations

All listed substitute parts maintain full electrical and mechanical compatibility with the 92652-005LF based on matching core parameters. Selection among active alternatives should prioritize product status and compliance certifications:

Active Status Parts: 65239-005LF, 0022552101, 102387-1, 87631-6, 0901430010, 87456-6, 87977-3, and 926476-5 are all in active production status, providing long-term availability and supply chain stability compared to the obsolete 92652-005LF.

Compliance Considerations: Parts with RoHS3 compliance (0022552101, 0901430010) or RoHS compliance (65239-005LF, 102387-1, 87631-6, 87456-6, 87977-3, 926476-5) meet current environmental regulations. The 92652-005LF does not specify RoHS status.

Manufacturer Diversity: Amphenol ICC (65239-005LF), Molex (0022552101, 0901430010), and TE Connectivity (102387-1, 87631-6, 87456-6, 87977-3, 926476-5) options provide multiple sourcing paths for procurement flexibility.

Frequently Asked Questions (FAQ)

Q: Can the 92652-005LF be directly replaced with any of these substitute parts?

A: Yes. All listed parts share identical core parameters: 10-position receptacle housing, 0.100" pitch, 2-row configuration, female socket contacts, crimp termination, and free-hanging in-line mounting. These parameters define mechanical and electrical compatibility for this connector housing category.

Q: Does color difference affect substitution?

A: Color is a visual identifier only and does not affect electrical or mechanical function. The 92652-005LF is black; 65239-005LF is blue. Both are functionally equivalent for housing applications.

Q: What is the significance of the MSL 1 rating?

A: MSL 1 (Unlimited) indicates unlimited shelf life with no moisture sensitivity precautions required. All substitute parts carry the same MSL 1 rating, ensuring equivalent handling and storage requirements.

Q: Are there differences in operating temperature ranges among substitutes?

A: Yes. The 92652-005LF does not specify an operating temperature range. Substitutes range from -40°C to 125°C (0022552101) to -65°C to 105°C (102387-1, 87631-6, 87456-6, 87977-3, 926476-5). Operating temperature does not affect housing substitution compatibility; verify your application requirements independently.

Q: What is the difference between parts with and without fastening type specifications?

A: Most substitutes list no fastening type; 87631-6 specifies detent lock fastening. Fastening type relates to connector retention mechanism and does not affect housing substitution eligibility. Verify mating connector compatibility for your specific application.

Q: Why are there multiple TE Connectivity AMPMODU Mod IV options?

A: TE Connectivity offers multiple part numbers within the AMPMODU Mod IV series with identical core parameters but different insulation materials and internal configurations. All maintain the same external housing dimensions and contact interface, making them interchangeable for this housing category.

Q: Should I prioritize manufacturer-recommended parts?

A: Manufacturer-recommended designations (0022552101 by Molex, 102387-1 and 87631-6 by TE Connectivity) indicate OEM validation. However, all listed parts meet the substitution criteria. Selection should be based on availability, compliance requirements, and supply chain strategy.
