Amphenol ICC 92652-003LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 92652-003LF is a 6-position rectangular connector housing with 0.100" (2.54mm) pitch, designed for crimp termination in free-hanging in-line applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement. The housing accommodates female socket contacts in a 2-row configuration with black insulation material. Substitute parts maintain the core electrical and mechanical specifications while offering active product status and improved availability.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts are grouped into three categories based on substitution criteria:

Amphenol ICC Direct Equivalents maintain identical pitch (0.100"), position count (6), row configuration (2 rows), contact type (female socket), and termination method (crimp). These parts differ in product status (active vs. obsolete), color options, insulation material composition, and operating temperature ranges. Parts 65043-034LF, 65239-003LF, and 68105-002LF are parametrically equivalent with matching core mechanical interfaces.

Molex SL 70450 Series Equivalents (0022552061, 0022566067) provide identical electrical and mechanical specifications including pitch, position count, row spacing, and crimp termination. These parts are from a different manufacturer but maintain full compatibility through standardized 0.100" pitch rectangular connector architecture.

TE Connectivity AMPMODU and Micro Quadlok Series Equivalents (87631-2, 1-968291-2, 104482-2, 2-87977-8, 87456-1) meet all core substitution criteria: 6 positions, 0.100" pitch, 2-row configuration, female socket contacts, and crimp termination. These parts introduce variations in fastening mechanisms, insulation materials, and operating temperature ranges while maintaining mechanical and electrical compatibility.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Product Status	Positions	Pitch	Rows	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
92652-003LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Obsolete	6	0.100"	2	Black	Not Specified	Not Specified	Not Specified	1145
65043-034LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Active	6	0.100"	2	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	827
65239-003LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Active	6	0.100"	2	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	3618
68105-002LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Active	6	0.100"	2	Black	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	RoHS Compliant	2057
0022552061	Molex	SL 70450	Active	6	0.100"	2	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	24678
0022566067	Molex	SL 70450	Active	6	0.100"	2	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	10867
87631-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	Active	6	0.100"	2	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	9424

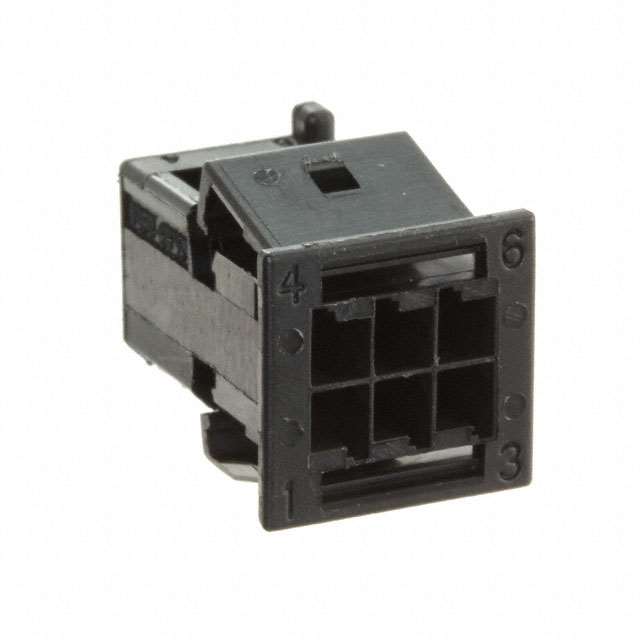

1-968291-2	TE Connectivity AMP Connectors	Micro Quadlok	Active	6	0.100"	2	Black	Polybutylene Terephthalate (PBT), Glass Filled	-40°C ~ 120°C	ROHS3 Compliant	1469
104482-2	TE Connectivity AMP Connectors	AMPMODU	Active	6	0.100"	2	Black	Thermoplastic	-65°C ~ 125°C	ROHS3 Compliant	4789
2-87977-8	TE Connectivity AMP Connectors	AMPMODU Mod IV	Active	6	0.100"	2	Black	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	RoHS Compliant	1101
87456-1	TE Connectivity AMP Connectors	AMPMODU Mod IV	Active	6	0.100"	2	Black	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	RoHS Compliant	7720

Engineering Selection Recommendations

Primary Recommendation: Amphenol ICC 65043-034LF

This part maintains the same manufacturer and series lineage as the obsolete 92652-003LF while achieving active product status. It provides RoHS compliance and documented operating temperature range (-40°C ~ 105°C). The polyphenylene modified insulation material ensures thermal and mechanical stability. This selection minimizes design validation effort and maintains supply chain consistency.

Secondary Recommendation: Amphenol ICC 68105-002LF

An alternative within the Amphenol ICC portfolio offering active status and RoHS compliance. The polyamide (PA66) nylon 6/6 insulation provides robust mechanical properties. Inventory availability (2057 units) supports production requirements.

Alternative for Extended Temperature Applications: Amphenol ICC 65239-003LF

When operating temperature range must extend to -65°C ~ 125°C, this part provides the required thermal envelope. The thermoplastic glass-filled insulation supports the extended range. Note the blue color differs from the original black specification; verify color compatibility in the application.

Cross-Manufacturer Options: Molex SL 70450 Series

Parts 0022552061 and 0022566067 provide equivalent electrical and mechanical specifications with ROHS3 compliance. These parts offer high inventory availability (24678 and 10867 units respectively) and are suitable when manufacturer flexibility is acceptable. Polyester glass-filled insulation meets the thermal requirements (-40°C ~ 105°C).

Cross-Manufacturer Options: TE Connectivity AMPMODU Series

Parts 87631-2, 104482-2, 2-87977-8, and 87456-1 provide full parametric equivalence with extended temperature ranges in certain variants (up to -65°C ~ 125°C for 104482-2). These selections are appropriate when TE Connectivity connector ecosystems are already established in the design.

Frequently Asked Questions (FAQ)

Q: Can I directly substitute the obsolete 92652-003LF with any of these parts?

A: Yes. All listed parts maintain the critical substitution parameters: 6 positions, 0.100" (2.54mm) pitch, 2-row configuration, female socket contacts, and crimp termination. These parameters define mechanical and electrical compatibility. Verify operating temperature requirements and any color-coding specifications in your application before final selection.

Q: What is the difference between "Parametric Equivalent" and "MFR Recommended" designations?

A: Parametric Equivalent parts meet all core electrical and mechanical specifications but may be from different manufacturers or series. MFR Recommended parts are suggested by the original manufacturer as direct replacements. Both categories are suitable for substitution when the specified parameters match your application requirements.

Q: Does insulation material affect compatibility?

A: Insulation material affects operating temperature range, mechanical durability, and environmental resistance but does not affect the core electrical or mechanical interface. Select insulation material based on your application's thermal and environmental requirements. All listed materials are suitable for standard industrial applications within their specified temperature ranges.

Q: Why do some parts have higher operating temperature ranges?

A: Operating temperature range depends on the insulation material composition. Thermoplastic and glass-filled variants typically support wider ranges (-65°C ~ 125°C) compared to standard polyamide or polyphenylene materials (-40°C ~ 105°C). Select based on your application's thermal environment.

Q: Are all these parts RoHS compliant?

A: The original 92652-003LF does not specify RoHS status. All active substitute parts listed are either RoHS Compliant or ROHS3 Compliant, meeting current regulatory requirements. Verify RoHS compliance requirements for your specific application and region.

Q: What is Moisture Sensitivity Level (MSL) 1?

A: MSL 1 indicates unlimited shelf life with no special moisture control requirements during storage or handling. All listed parts carry MSL 1 rating, eliminating moisture-related procurement or storage constraints.

Q: Can I mix contacts from different manufacturers with these housings?

A: All listed housings use standardized 0.100" (2.54mm) pitch crimp contacts. Contacts must match the specific housing series and contact type (female socket). Verify contact part numbers are compatible with your selected housing before assembly.

Q: Which substitute offers the best inventory availability?

A: Molex 0022552061 provides the highest inventory (24678 units), followed by Amphenol ICC 65239-003LF (3618 units) and TE Connectivity 87456-1 (7720 units). Inventory levels support different production volume requirements.
