TE Connectivity 926476-7 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 926476-7 is a 14-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This connector operates across the temperature range of -65°C to 105°C and features crimp-style female socket contacts with thermoplastic insulation. The part is currently active in production with 1576 units in stock. Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support applications requiring alternative connector series or material compositions while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	14
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 926476-7 is determined by strict adherence to the following core parameters: 14-position count, 0.100" (2.54mm) pitch, 2-row configuration with 0.100" row spacing, receptacle connector type with female socket contacts, crimp termination, free hanging in-line mounting, black color, and MSL rating of 1. All substitute parts listed maintain these critical electrical and mechanical parameters. Variations in insulation material composition, operating temperature range extensions, and connector series designation do not preclude substitution when the core parameters remain constant. Parts that deviate from the specified color (such as blue variants) or discontinue product status are identified separately to support legacy system requirements or alternative design considerations.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Color	Operating Temperature	Insulation Material	Product Status	Inventory (Pcs)
926476-7	TE Connectivity AMP Connectors	AMPMODU Mod IV	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-65°C ~ 105°C	Thermoplastic	Active	1576
104482-6	TE Connectivity AMP Connectors	AMPMODU	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-65°C ~ 125°C	Thermoplastic	Active	1218

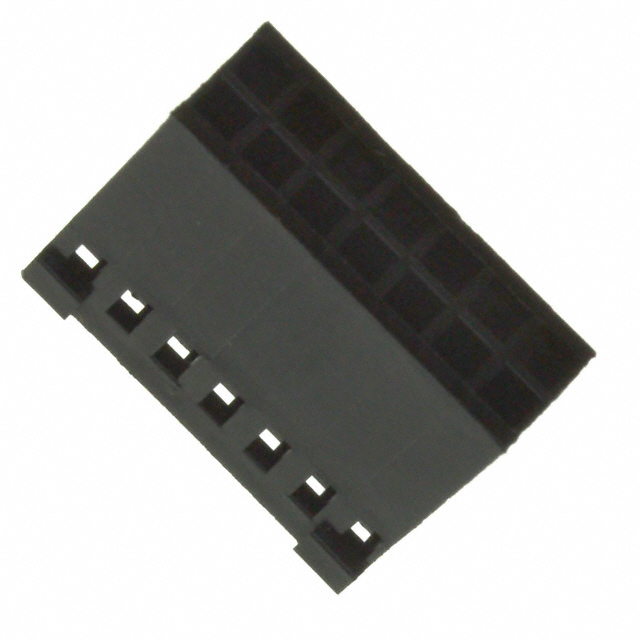

3-87977-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-65°C ~ 105°C	Polyamide (PA), Nylon, Glass Filled	Active	6447
87977-5	TE Connectivity AMP Connectors	AMPMODU Mod IV	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-65°C ~ 105°C	Polyamide (PA), Nylon, Glass Filled	Active	2347
0022552143	Molex	SL 70450	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-40°C ~ 105°C	Polyester, Glass Filled	Active	4979
0901430014	Molex	C-Grid III 90143	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-55°C ~ 105°C	Polyphenylene Oxide (PPO)	Active	6114
65043-030LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-40°C ~ 105°C	Polyphenylene, Modified	Active	1262
926209-7	TE Connectivity AMP Connectors	Not Specified	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	Not Specified	Not Specified	Discontinued at DiGi Electronics	819

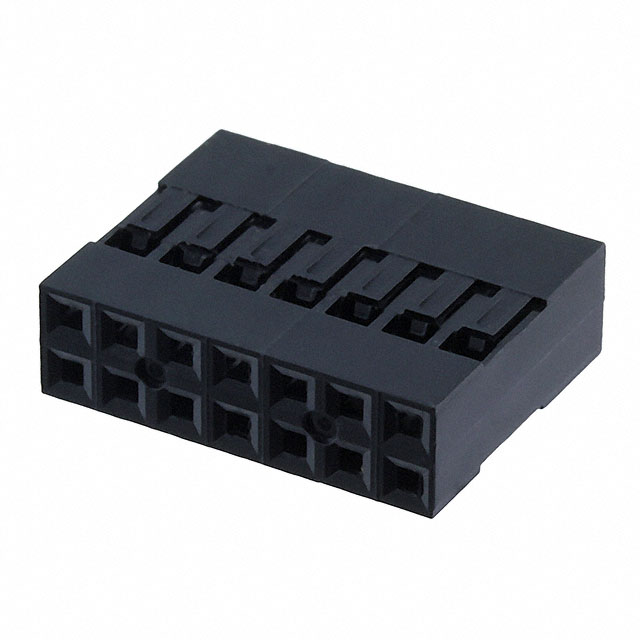

M20-1070700	Harwin Inc.	M20	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Black	-25°C ~ 85°C	Polyphenylene Ether (PPE), Polystyrene (PS)	Active	2271
65239-007LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	14	0.100" (2.54mm)	2	0.100" (2.54mm)	Blue	-65°C ~ 125°C	Thermoplastic, Glass Filled	Active	1027

Engineering Selection Recommendations

Primary Substitutes (Recommended for Direct Replacement)

The TE Connectivity parts 3-87977-2 and 87977-5 are direct substitutes within the AMPMODU Mod IV series. Both maintain identical electrical and mechanical specifications to the 926476-7, with the primary difference being insulation material composition (polyamide glass-filled versus thermoplastic). These parts are active in production with substantial inventory availability (6447 and 2347 units respectively) and carry RoHS compliance certification.

The TE Connectivity 104482-6 operates within the AMPMODU series and extends the upper operating temperature limit to 125°C while maintaining all core connector parameters. This part is active and RoHS compliant, suitable for applications requiring enhanced thermal performance.

Cross-Manufacturer Substitutes (Electrical and Mechanical Equivalence)

The Molex 0022552143 (SL 70450 series) and 0901430014 (C-Grid III 90143 series) maintain full parametric equivalence with the 926476-7 across all critical dimensions and electrical characteristics. Both are active products with ROHS3 compliance and REACH unaffected status. The 0022552143 operates from -40°C to 105°C, while the 0901430014 extends the lower temperature limit to -55°C.

The Amphenol ICC (FCI) 65043-030LF (Mini-PV™, Basics+ series) provides parametric equivalence with operating temperature range of -40°C to 105°C. This part is RoHS compliant and REACH affected.

Alternative Consideration (Color Variant)

The Amphenol ICC (FCI) 65239-007LF is a blue-colored variant within the DUBOX™, MezzSelect™, Basics+ series. This part maintains all electrical and mechanical parameters with extended operating temperature range (-65°C to 125°C) but differs in color specification. Selection of this part requires confirmation that color variation is acceptable for the application.

Discontinued Part (Legacy Support)

The TE Connectivity 926209-7 is discontinued at DiGi Electronics but remains available in inventory (819 units). This part is suitable only for legacy system maintenance or replacement applications where the original part number must be maintained.

Limited Temperature Range Consideration

The Harwin Inc. M20-1070700 maintains parametric equivalence but operates within a reduced temperature range (-25°C to 85°C). Selection of this part is appropriate only for applications where the operating environment remains within these thermal limits.

Frequently Asked Questions (FAQ)

Q: What determines whether a part can substitute for the 926476-7?

A: Substitution is determined by strict equivalence across core parameters: 14-position count, 0.100" (2.54mm) pitch, 2-row configuration with 0.100" row spacing, receptacle connector type with female socket contacts, crimp termination, free hanging in-line mounting, and black color. All listed substitute parts maintain these specifications. Variations in insulation material, operating temperature range, and connector series do not preclude substitution when core parameters remain constant.

Q: Can I use a substitute part with a different operating temperature range?

A: Operating temperature range variations do not prevent substitution provided the application environment remains within the substitute part's specified limits. The 104482-6 extends the upper limit to 125°C, the 0901430014 extends the lower limit to -55°C, and the M20-1070700 operates within -25°C to 85°C. Selection must confirm that the substitute part's temperature range encompasses the actual application requirements.

Q: Are all substitute parts RoHS compliant?

A: All active substitute parts listed carry RoHS compliance certification (either RoHS or ROHS3 status). The discontinued 926209-7 is RoHS compliant. Compliance status is provided in the detailed specifications for each part.

Q: What is the difference between the TE Connectivity AMPMODU and AMPMODU Mod IV series?

A: Both series maintain identical electrical and mechanical parameters for the 14-position 2.54mm pitch receptacle housing. The AMPMODU Mod IV designation (926476-7, 3-87977-2, 87977-5) and AMPMODU designation (104482-6) represent different product generations within the TE Connectivity connector portfolio. Substitution between these series is supported by parametric equivalence.

Q: Can I substitute the blue-colored 65239-007LF for the black 926476-7?

A: The 65239-007LF maintains full electrical and mechanical equivalence with extended operating temperature range (-65°C to 125°C). However, the color difference (blue versus black) requires confirmation that color variation is acceptable for the application. Visual identification, connector mating, and system integration considerations may be affected by this change.

Q: What inventory levels are available for each substitute part?

A: Current inventory levels are: 926476-7 (1576 units), 104482-6 (1218 units), 3-87977-2 (6447 units), 87977-5 (2347 units), 0022552143 (4979 units), 0901430014 (6114 units), 65043-030LF (1262 units), 926209-7 (819 units), M20-1070700 (2271 units), and 65239-007LF (1027 units). Inventory availability should be confirmed at the time of procurement.

Q: Is the discontinued 926209-7 suitable for new designs?

A: The 926209-7 is discontinued at DiGi Electronics and should not be selected for new designs. This part is appropriate only for legacy system maintenance, repair, or replacement applications where the original part number must be maintained. Active substitute parts should be specified for all new product development.

Q: What is the significance of MSL rating 1 (Unlimited)?

A: MSL 1 (Unlimited) indicates that the connector housing has unlimited shelf life and does not require special moisture control during storage or handling. This specification applies to all listed parts and simplifies inventory management and procurement logistics.

Q: Can I mix different substitute parts in the same assembly?

A: All substitute parts maintain parametric equivalence and can be used interchangeably within the same assembly provided the application environment remains within the operating temperature range of the most restrictive part selected. However, design documentation should specify the approved part numbers to ensure consistency and traceability.
