TE Connectivity AMP Connectors 926476-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 926476-4 is an 8-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line mounting applications. This component belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts with thermoplastic insulation. The part is currently active in production and RoHS Compliant, making it suitable for modern electronic assembly applications where space-efficient, standardized connector solutions are required. Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support component obsolescence management.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 926476-4 is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (8), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitute parts maintain these core electrical and mechanical specifications.

Secondary parameters including insulation material composition, operating temperature range, and color may vary within acceptable limits. Parts with identical core parameters but different insulation materials (thermoplastic, polyamide, polyester, or polybutylene terephthalate) are functionally equivalent for standard applications. Operating temperature ranges of -65°C ~ 105°C or higher are acceptable. Color variations (black or green) do not affect electrical or mechanical compatibility.

Substitute parts from alternative manufacturers (Molex) are included where all critical parameters align with the main part specification. All substitute parts carry RoHS or ROHS3 compliance status and MSL 1 rating, ensuring compatibility with modern manufacturing and environmental standards.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Mounting Type	Termination	Operating Temp	Insulation Material	Color	RoHS Status
926476-4	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Thermoplastic	Black	RoHS Compliant
104482-3	TE Connectivity AMP	AMPMODU	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 125°C	Thermoplastic	Black	ROHS3 Compliant
280365	TE Connectivity AMP	AMPMODU Mod II	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Not Specified	Not Specified	Black	RoHS Compliant
87133-9	TE Connectivity AMP	AMPMODU	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polyester, Glass Filled	Black	RoHS Compliant
87456-3	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polyamide (PA), Nylon, Glass Filled	Black	RoHS Compliant
87456-4	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polyamide (PA), Nylon, Glass Filled	Black	ROHS3 Compliant
87977-2	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Thermoplastic	Black	RoHS Compliant
925367-4	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polyamide (PA66), Nylon 6/6	Green	RoHS Compliant
925370-4	TE Connectivity AMP	AMPMODU Mod IV	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polyamide (PA66), Nylon 6/6, Glass Filled	Green	RoHS Compliant

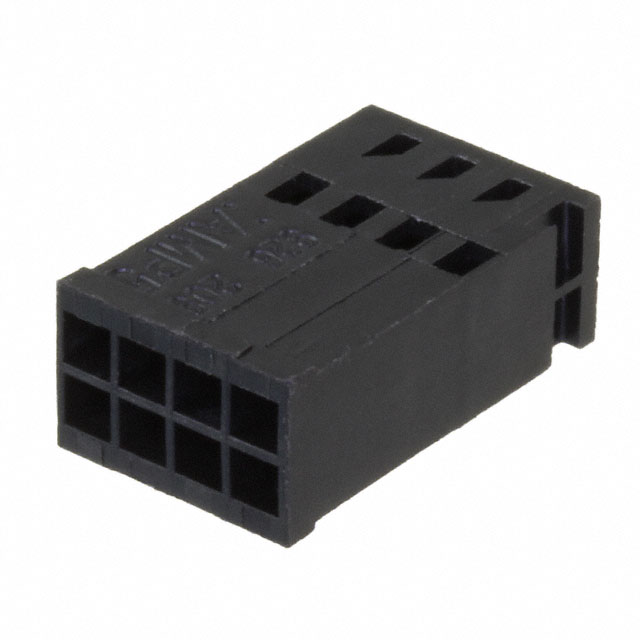

926209-4	TE Connectivity AMP	Not Specified	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-65°C ~ 105°C	Polybutylene Terephthalate (PBT), Glass Filled	Black	RoHS Compliant
0022552083	Molex	SL 70450	8	0.100" (2.54mm)	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	-40°C ~ 105°C	Polyester, Glass Filled	Black	ROHS3 Compliant

Engineering Selection Recommendations

All identified substitute parts maintain full electrical and mechanical compatibility with the 926476-4 across core connector specifications. Selection among equivalent parts should be based on the following engineering criteria:

TE Connectivity AMP Connectors Parts (Same Manufacturer): Parts 104482-3, 87456-4, and 87977-2 offer direct substitution with enhanced or equivalent compliance status. Part 104482-3 extends the operating temperature range to -65°C ~ 125°C while maintaining ROHS3 compliance. Part 87456-4 provides ROHS3 compliance with polyamide insulation material. Part 87977-2 maintains identical specifications to the main part with RoHS compliance.

TE Connectivity AMP Connectors Parts (Alternative Series/Materials): Parts 87133-9, 87456-3, 925367-4, 925370-4, and 926209-4 are functionally equivalent with variations in insulation material composition. These parts support applications requiring specific material properties such as glass-filled polyamide, polyester, or polybutylene terephthalate formulations. Color variations (green vs. black) in parts 925367-4 and 925370-4 do not affect electrical performance.

Alternative Manufacturer (Molex): Part 0022552083 provides cross-manufacturer substitution with ROHS3 compliance and REACH Unaffected status. Operating temperature range is -40°C ~ 105°C, which is suitable for standard industrial applications but does not extend to the lower temperature limit of the main part.

Legacy Series Consideration: Part 280365 from the AMPMODU Mod II series is electrically and mechanically compatible but lacks specified operating temperature and insulation material data. This part is suitable for applications where legacy component compatibility is required.

All substitute parts carry MSL 1 (Unlimited) rating, ensuring compatibility with standard moisture-controlled manufacturing environments.

Frequently Asked Questions (FAQ)

Q: Can part 104482-3 be used as a direct replacement for 926476-4?

A: Yes. Part 104482-3 is a direct electrical and mechanical equivalent with identical connector type, contact type, position count, pitch, row configuration, and mounting method. The extended operating temperature range (-65°C ~ 125°C) and ROHS3 compliance provide enhanced specifications suitable for the same applications.

Q: What is the difference between the black and green housing variants?

A: Parts 925367-4 and 925370-4 are green-colored equivalents of the 926476-4. Color is a visual identifier only and does not affect electrical or mechanical performance. Selection between black and green housings is determined by application requirements, assembly documentation, or visual identification standards.

Q: Are glass-filled insulation materials compatible with the thermoplastic version?

A: Yes. Parts with glass-filled insulation materials (87133-9, 87456-3, 87456-4, 925370-4, 926209-4, and 0022552083) are mechanically and electrically equivalent to the thermoplastic version (926476-4). Glass-filled variants provide enhanced mechanical strength and thermal stability. Selection depends on application-specific requirements for material properties.

Q: Can the Molex part 0022552083 replace the TE Connectivity part?

A: Yes, with temperature range consideration. Part 0022552083 is electrically and mechanically equivalent across all critical connector parameters. However, the operating temperature range is -40°C ~ 105°C, which does not extend to the lower limit of -65°C specified for the main part. Use this substitute only in applications where the -40°C minimum temperature is acceptable.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: MSL 1 (Unlimited) indicates that the component has unlimited shelf life under standard storage conditions and does not require special moisture-controlled handling or baking procedures prior to assembly. All listed substitute parts carry this rating.

Q: Are all substitute parts RoHS compliant?

A: All substitute parts carry either RoHS Compliant or ROHS3 Compliant status. ROHS3 represents the current regulatory standard. Both certifications indicate compliance with Restriction of Hazardous Substances directives and are suitable for modern electronic assembly.

Q: Can I mix different insulation materials in the same assembly?

A: Yes. All substitute parts with different insulation materials (thermoplastic, polyamide, polyester, polybutylene terephthalate) are mechanically and electrically interchangeable. Material selection should be based on application-specific requirements for mechanical strength, thermal performance, or chemical resistance.

Q: What is the significance of the AMPMODU series designation?

A: AMPMODU is the TE Connectivity product line designation for modular connector systems. Variants include Mod II, Mod IV, and undesignated versions. All variants listed maintain identical electrical and mechanical specifications for the 8-position, 2.54mm pitch receptacle housing. Series designation reflects design generation or manufacturing process but does not affect interchangeability.

Q: Are contacts included with these connector housings?

A: No. All listed parts are connector housings only. Contacts are not included and must be sourced separately. Ensure that selected crimp-type female socket contacts are compatible with the 0.100" (2.54mm) pitch specification.
