Part Overview

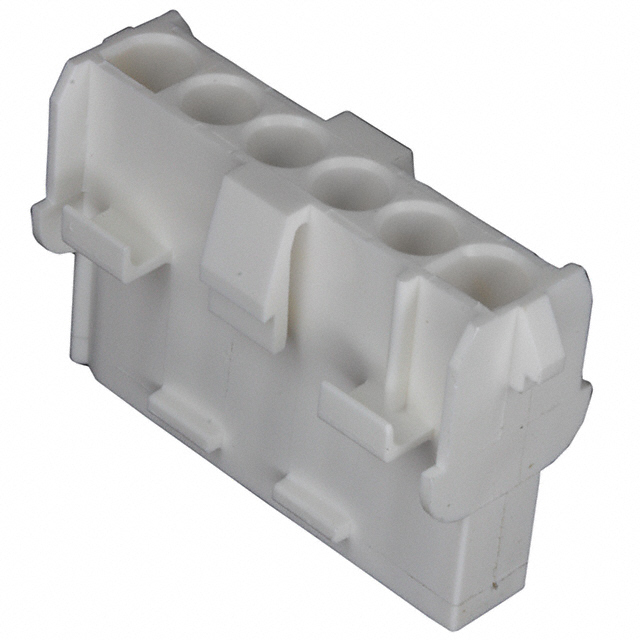

The TE Connectivity AMP Connectors 926307-3 is a 6-position rectangular connector receptacle housing from the Universal MATE-N-LOK series. This component is designed for panel mount, snap-in applications with crimp contact termination and locking ramp fastening. The part is currently active in production status with 1,319 pieces available in inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required but the original part number is unavailable or when alternative configurations better suit specific application requirements.

Substiute Parts

926307-3

TE Connectivity AMP ConnectorsIn Stock: 1370926307-3 Datasheet

Current PartRFQ

1-480705-0

TE Connectivity AMP ConnectorsIn Stock: 23201-480705-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 926307-3 are identified based on the following critical parameters that determine functional equivalence:

Electrical Compatibility Parameters:

• Connector type (Receptacle)
• Number of positions (6)
• Contact termination method (Crimp)
• Operating temperature range (-55°C to 105°C)

Mechanical Compatibility Parameters:

• Series family (Universal MATE-N-LOK)
• Mounting type (Panel Mount, Snap-In)
• Fastening type (Locking Ramp)
• Insulation material composition (Polyamide/Nylon)

Regulatory Compliance Parameters:

• RoHS compliance status
• MSL rating (1 - Unlimited)

The substitute part 1-480705-0 maintains equivalence in all critical electrical and mechanical parameters. The primary difference is the row configuration (2 rows versus 1 row) and row spacing specification, which represents a structural variation within the same connector family rather than a functional incompatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the 926307-3 and 1-480705-0 are active production components manufactured by TE Connectivity AMP Connectors within the Universal MATE-N-LOK series. Both parts maintain full RoHS compliance and MSL Level 1 (Unlimited) moisture sensitivity ratings, ensuring compatibility with standard manufacturing and storage environments.

The selection between these parts depends on the specific application layout requirements. The 926307-3 provides a single-row, 6-position configuration suitable for linear connector arrangements. The 1-480705-0 offers a dual-row configuration with 0.250" (6.35mm) row spacing, accommodating applications requiring a more compact footprint or specific pin arrangement patterns.

Both parts share identical electrical operating parameters (-55°C to 105°C), crimp termination methodology, and locking ramp fastening mechanisms. The insulation material specifications differ slightly in nomenclature (PA66 versus PA designation), but both are polyamide-based nylon compounds suitable for the specified temperature and environmental conditions.

Frequently Asked Questions (FAQ)

Q: Can the 1-480705-0 be used as a direct replacement for the 926307-3?

A: Both parts are functionally equivalent in electrical and thermal performance. The primary difference is the physical row configuration: 926307-3 uses a single row, while 1-480705-0 uses two rows with 0.250" spacing. Direct substitution is possible only if the application PCB layout and connector mating interface accommodate the dual-row configuration.

Q: What is the significance of the row spacing specification?

A: Row spacing (0.250" or 6.35mm) defines the distance between contact rows in multi-row connectors. This parameter is critical for PCB design and connector alignment. Single-row connectors like the 926307-3 do not have row spacing specifications.

Q: Are the insulation materials interchangeable between these parts?

A: Both parts use polyamide-based nylon insulation materials. The 926307-3 specifies PA66 (Nylon 6/6), while the 1-480705-0 specifies PA (Nylon). Both materials operate within the identical temperature range (-55°C to 105°C) and maintain equivalent performance characteristics for this connector category.

Q: Do both parts require separate contact components?

A: Yes. Both the 926307-3 and 1-480705-0 are connector housings only. Contacts are not included and must be sourced separately. Ensure selected contacts are compatible with the crimp termination specification and the Universal MATE-N-LOK series.

Q: What is the difference between the color specifications?

A: The 926307-3 is specified in red, while the 1-480705-0 is specified in natural (undyed) color. Color is a visual identification feature and does not affect electrical or mechanical performance.

Q: Are both parts suitable for the same environmental conditions?

A: Yes. Both parts maintain identical operating temperature ranges (-55°C to 105°C), RoHS compliance status, and MSL Level 1 (Unlimited) ratings. Both are suitable for standard industrial and commercial applications without additional environmental protection measures.

Q: What is the inventory status for these parts?

A: The 926307-3 has 1,319 pieces in stock, while the 1-480705-0 has 2,300 pieces available. Higher inventory availability for the substitute part may provide supply chain advantages for high-volume applications.
