TE Connectivity AMP Connectors 925575-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 925575-1 is a rectangular connector socket contact designed for power applications. This component is classified as a socket contact with crimp termination, rated for 17-20 AWG wire gauges, and finished in tin. The part is currently listed as obsolete, which necessitates identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements.

Substiute Parts

925575-1

TE Connectivity AMP ConnectorsIn Stock: 935925575-1 Datasheet

Current PartRFQ

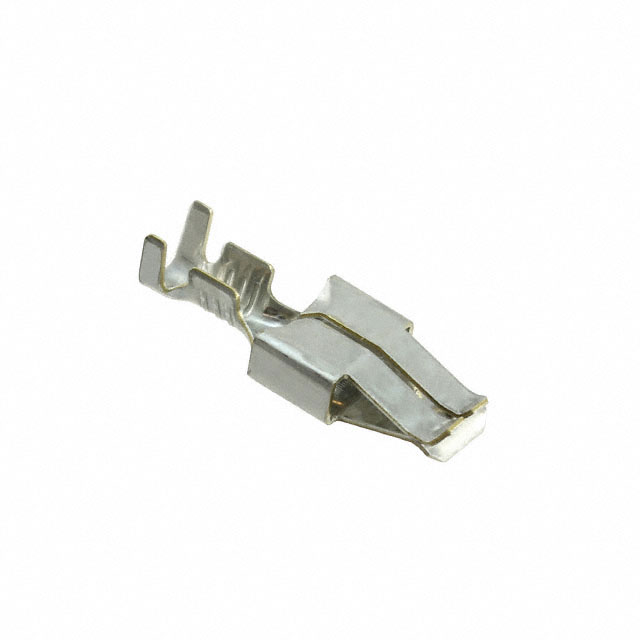

926965-1

TE Connectivity AMP ConnectorsIn Stock: 16937926965-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 925575-1 is based on the following critical parameters that must align between the main part and substitute alternatives:

Primary Substitution Criteria:

• Connector Category: Rectangular Connectors
• Component Type: Socket Contact
• Termination Method: Crimp
• Contact Finish: Tin
• Series Family: Standard Power Timer
• Application Type: Power
• Wire Gauge Compatibility: The substitute must accommodate the wire gauge range of the original part or provide an overlapping range

The substitute part 926965-1 meets these criteria with a wire gauge range of 15-20 AWG, which encompasses the original 17-20 AWG specification. Both parts share identical series classification, termination method, contact finish, and application type, establishing functional equivalence within the Standard Power Timer connector family.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity AMP Connectors 926965-1

The 926965-1 is the direct functional equivalent for the obsolete 925575-1. Selection of this substitute is supported by the following engineering factors:

Product Status Alignment: The 926965-1 is classified as Active, ensuring continued availability and supply chain support, whereas the 925575-1 is obsolete and subject to discontinuation.

Compliance and Certification: Both parts maintain RoHS compliance. The 926965-1 carries ROHS3 Compliant status, representing the current regulatory standard. Both parts are classified under identical ECCN (EAR99) and HTSUS codes, confirming equivalent export and tariff treatment.

Electrical and Mechanical Compatibility: The 926965-1 maintains identical specifications across all critical parameters: connector category, series family, socket type, crimp termination, and tin contact finish. The wire gauge range of 15-20 AWG on the substitute encompasses the original 17-20 AWG specification, providing full compatibility for applications utilizing the original part.

Moisture Sensitivity: Both parts share MSL 1 (Unlimited) classification, indicating identical environmental handling requirements.

Inventory Availability: The 926965-1 maintains significantly higher inventory levels (16,923 pieces) compared to the original part (847 pieces), supporting production continuity and reducing procurement lead times.

Frequently Asked Questions (FAQ)

Q: Can the 926965-1 directly replace the 925575-1 in existing designs?

A: Yes. The 926965-1 is functionally equivalent to the 925575-1 across all critical parameters: connector category, series family, socket type, crimp termination, contact finish, and application classification. The wire gauge range of 15-20 AWG on the substitute encompasses the original 17-20 AWG specification.

Q: What is the significance of the wire gauge difference between the two parts?

A: The 925575-1 is rated for 17-20 AWG, while the 926965-1 is rated for 15-20 AWG. The substitute's broader range includes the original specification range, ensuring compatibility with all wire gauges supported by the original part.

Q: Are there any compliance or regulatory differences between these parts?

A: Both parts are RoHS compliant and carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications. The 926965-1 carries ROHS3 Compliant status, representing the current regulatory standard. Both parts maintain MSL 1 (Unlimited) moisture sensitivity classification.

Q: What packaging format is available for the substitute part?

A: The 926965-1 is supplied in Cut Tape (CT) packaging format.

Q: Why is the 925575-1 listed as obsolete?

A: The 925575-1 is classified as obsolete by the manufacturer. The 926965-1 serves as the active equivalent within the Standard Power Timer connector series and is recommended for all new designs and ongoing production requirements.

Q: Are both parts from the same manufacturer?

A: Yes. Both the 925575-1 and 926965-1 are manufactured by TE Connectivity AMP Connectors and belong to the Standard Power Timer connector series.

Q: What is the inventory status of the substitute part?

A: The 926965-1 maintains active inventory of 16,923 pieces in new original condition, supporting immediate availability for production requirements.
