TE Connectivity 925370-3 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 925370-3 is a 6-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts with polyamide insulation material. The part is actively produced and RoHS compliant, making it suitable for applications requiring standard rectangular connector housings in industrial and commercial electronics.

Substitute parts are necessary when the original part number becomes unavailable, when alternative material compositions better suit specific environmental conditions, or when design flexibility allows for equivalent connector housings from different series or manufacturers that maintain identical electrical and mechanical specifications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 925370-3 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 6
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

All substitute parts listed maintain these exact specifications. Variations in insulation material, color, operating temperature range, and series designation do not prevent functional substitution when these core parameters remain constant. The substitute parts are sourced from TE Connectivity (multiple series) and cross-manufacturer equivalents from Molex and Amphenol ICC (FCI).

Parameter Comparison

Part Number	Manufacturer	Series	Insulation Material	Color	Operating Temperature	RoHS Status	Inventory (Pcs)
925370-3	TE Connectivity AMP Connectors	AMPMODU Mod IV	Polyamide (PA66), Nylon 6/6, Glass Filled	Green	-65°C ~ 105°C	RoHS Compliant	1091
1-968291-2	TE Connectivity AMP Connectors	Micro Quadlok	Polybutylene Terephthalate (PBT), Glass Filled	Black	-40°C ~ 120°C	ROHS3 Compliant	1469
104482-2	TE Connectivity AMP Connectors	AMPMODU	Thermoplastic	Black	-65°C ~ 125°C	ROHS3 Compliant	4789
2-87977-8	TE Connectivity AMP Connectors	AMPMODU Mod IV	Polyamide (PA), Nylon, Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	1101

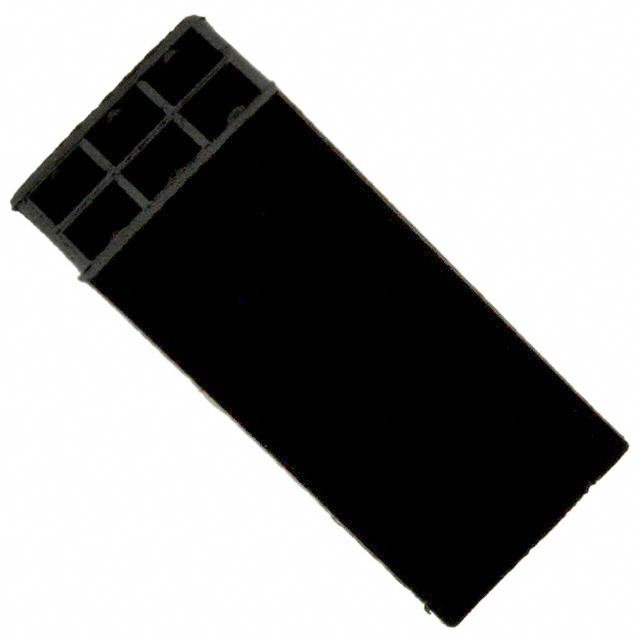

87133-7	TE Connectivity AMP Connectors	AMPMODU	Polyester, Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	6320
87456-1	TE Connectivity AMP Connectors	AMPMODU Mod IV	Polyamide (PA), Nylon, Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	7720
87977-1	TE Connectivity AMP Connectors	AMPMODU Mod IV	Thermoplastic	Black	-65°C ~ 105°C	RoHS Compliant	2200
926209-3	TE Connectivity AMP Connectors	-	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65°C ~ 105°C	RoHS Compliant	15131
926476-3	TE Connectivity AMP Connectors	AMPMODU Mod IV	Thermoplastic	Black	-65°C ~ 105°C	ROHS3 Compliant	6352
0022566067	Molex	SL 70450	Polyester, Glass Filled	Black	-40°C ~ 105°C	ROHS3 Compliant	10867
65043-034LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Polyphenylene, Modified	Black	-40°C ~ 105°C	RoHS Compliant	827

Engineering Selection Recommendations

Primary Substitutes (TE Connectivity AMPMODU Mod IV Series): Parts 2-87977-8, 87456-1, and 87977-1 are direct series equivalents to the 925370-3, sharing the same AMPMODU Mod IV platform. These parts maintain identical operating temperature range (-65°C ~ 105°C) and RoHS compliance status. Selection among these three depends on insulation material requirements: polyamide nylon for 2-87977-8 and 87456-1, or thermoplastic for 87977-1.

Secondary Substitutes (TE Connectivity Alternative Series): Parts 87133-7, 104482-2, 926209-3, and 926476-3 provide functional equivalence with variations in material composition and thermal performance. Part 104482-2 and 926476-3 offer extended upper operating temperature limits (125°C and 105°C respectively) compared to the original specification. Part 926209-3 provides the highest inventory availability (15131 units) among all substitutes.

Cross-Manufacturer Substitutes: Part 0022566067 (Molex SL 70450 series) and 65043-034LF (Amphenol ICC Mini-PV™ series) are functionally equivalent from alternative manufacturers. Both maintain the required 6-position, 2.54mm pitch configuration with crimp termination. Operating temperature ranges are reduced to -40°C ~ 105°C for both cross-manufacturer options. Part 0022566067 carries ROHS3 compliance and REACH Unaffected status, while 65043-034LF carries REACH Affected status.

Compliance Considerations: All substitute parts maintain MSL 1 (Unlimited) moisture sensitivity rating. RoHS compliance is universal across all options, with variants between RoHS Compliant and ROHS3 Compliant designations. Selection should account for specific application compliance requirements and supply chain constraints.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 925370-3 with any of the listed parts without design modification?

A: Yes. All listed substitute parts maintain identical electrical and mechanical specifications for connector type, position count, pitch, row configuration, mounting type, and contact termination. No design modification is required for functional substitution.

Q: What is the difference between the green 925370-3 and the black substitute options?

A: Color is a cosmetic designation that does not affect electrical or mechanical function. The green color of the 925370-3 is specific to the AMPMODU Mod IV series in this configuration. Black substitute parts from the same or alternative series provide identical performance.

Q: Are there temperature limitations I should consider when selecting a substitute?

A: The original 925370-3 operates from -65°C to 105°C. Most substitutes maintain this range. Part 1-968291-2 and 104482-2 extend the upper limit to 120°C and 125°C respectively. Parts 0022566067 and 65043-034LF reduce the lower limit to -40°C. Select based on your application's thermal requirements.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant designations?

A: Both designations indicate compliance with RoHS directives. ROHS3 represents compliance with the more recent RoHS 3 directive (2011/65/EU as amended). For new designs, ROHS3 compliant parts are preferred. Both are acceptable for substitution purposes.

Q: Can I use the Molex 0022566067 or Amphenol ICC 65043-034LF as direct replacements?

A: Yes. Both cross-manufacturer parts maintain all critical electrical and mechanical parameters. Verify connector compatibility with your mating components, as housing geometry may have minor variations despite identical pitch and position specifications.

Q: Which substitute offers the best inventory availability?

A: Part 926209-3 (TE Connectivity) provides the highest inventory with 15131 units in stock, followed by 0022566067 (Molex) with 10867 units. For immediate availability, these options are recommended.

Q: Do all substitutes use crimp-type termination like the original?

A: Yes. All listed substitute parts use crimp contact termination, maintaining compatibility with standard crimp tooling and contact insertion procedures.

Q: What insulation materials are available among the substitutes?

A: Substitute parts utilize polyamide (PA/PA66), polybutylene terephthalate (PBT), polyester, polyphenylene, and thermoplastic insulation materials. All materials are glass-filled variants except for the modified polyphenylene option. Material selection depends on specific environmental and mechanical requirements.
