TE Connectivity 925369-9 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

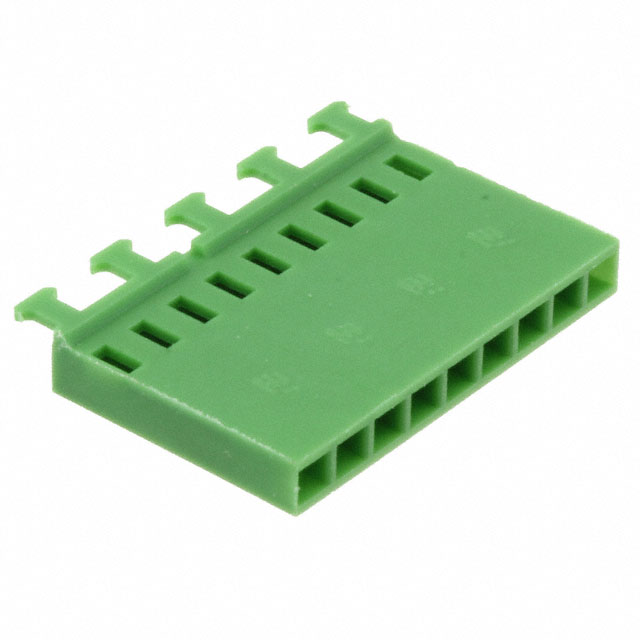

The TE Connectivity 925369-9 is a 9-position receptacle housing connector with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This connector belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts. The part is currently active in production with 1039 units in stock.

Equivalent and substitute parts are necessary when the primary part number becomes unavailable, when alternative manufacturers are required for supply chain diversification, or when specific color or material specifications differ from the original design requirements while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	9
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 925369-9 is determined by the following critical parameters that must remain constant across all equivalent parts:

Mandatory Matching Parameters:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 9
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Variable Parameters (Acceptable Differences):

Color (Green, Black, or Blue)
Insulation Material (Polyamide PA66, Polyester Glass Filled, Thermoplastic, or Polyphenylene Modified)
Series designation (AMPMODU Mod IV, AMPMODU, AMPMODU MTE, Mini-PV™ Basics+, DUBOX™ MezzSelect™ Basics+, M20)
Manufacturer (TE Connectivity AMP Connectors or Amphenol ICC/FCI or Harwin Inc.)
Operating Temperature Range (provided minimum is -25°C or lower and maximum is 85°C or higher)

All substitute parts listed maintain electrical and mechanical compatibility with the original part through adherence to these parameters.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
925369-9	TE Connectivity AMP Connectors	AMPMODU Mod IV	Green	Polyamide (PA66), Nylon 6/6	-65°C ~ 105°C	RoHS Compliant	1039
1-87175-9	TE Connectivity AMP Connectors	AMPMODU	Black	Polyester, Glass Filled	-65°C ~ 105°C	RoHS Compliant	964

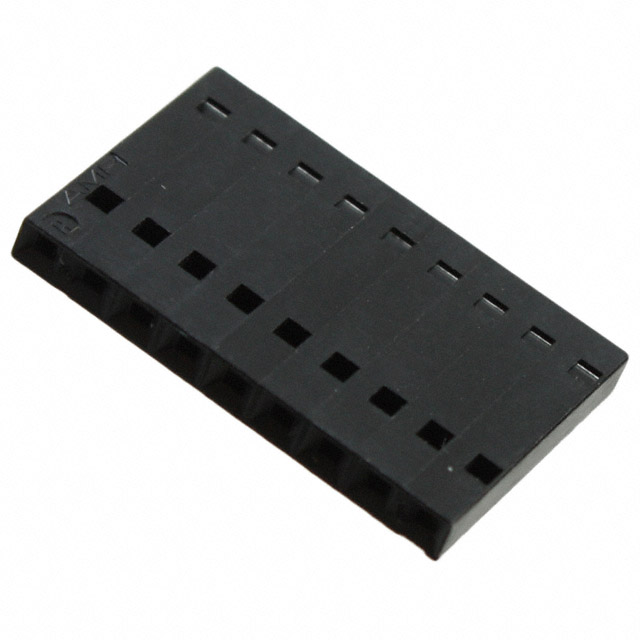

103648-8	TE Connectivity AMP Connectors	AMPMODU MTE	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	2666
2-87175-0	TE Connectivity AMP Connectors	AMPMODU	Black	Polyester, Glass Filled	-65°C ~ 105°C	ROHS3 Compliant	1078
65039-028LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	822
65240-009LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	2259
M20-1060900	Harwin Inc.	M20	Black	Thermoplastic	-25°C ~ 85°C	ROHS3 Compliant	2149

Engineering Selection Recommendations

Primary Substitutes (TE Connectivity AMP Connectors):

The parts 1-87175-9, 103648-8, and 2-87175-0 are direct substitutes from the same manufacturer. All three maintain the full operating temperature range of -65°C ~ 105°C and carry RoHS compliance certification. Part 103648-8 offers the highest inventory availability at 2666 units. Parts 1-87175-9 and 2-87175-0 are functionally equivalent, with 2-87175-0 carrying ROHS3 certification for enhanced regulatory compliance.

Secondary Substitutes (Cross-Manufacturer):

Part 65240-009LF from Amphenol ICC (FCI) extends the operating temperature range to -65°C ~ 125°C and provides the highest inventory level at 2259 units. This part is suitable for applications requiring extended thermal performance. Part 65039-028LF from the same manufacturer operates within -40°C ~ 105°C and is available with 822 units in stock.

Limited Substitution (Harwin Inc.):

Part M20-1060900 from Harwin Inc. carries ROHS3 certification and maintains the 9-position, 2.54mm pitch configuration. However, this part operates within a reduced temperature range of -25°C ~ 85°C. Selection of this part is appropriate only for applications where the operating environment does not exceed these thermal limits.

All listed parts maintain RoHS compliance and Moisture Sensitivity Level 1 (Unlimited) rating, ensuring compatibility with standard manufacturing and storage conditions.

Frequently Asked Questions (FAQ)

Q: Can I substitute the TE Connectivity 925369-9 with any of the listed parts without design modification?

A: Yes, all listed substitute parts maintain the same connector type (receptacle), contact type (female socket), position count (9), pitch (0.100"/2.54mm), row configuration (1 row), mounting type (free hanging in-line), and termination method (crimp). These parts are electrically and mechanically compatible with the original design.

Q: What is the primary difference between the substitute parts?

A: The main differences are color, insulation material composition, manufacturer, and operating temperature range. The 925369-9 features green insulation, while most substitutes are black or blue. Operating temperature ranges vary from -25°C ~ 85°C (M20-1060900) to -65°C ~ 125°C (65240-009LF). All parts maintain the same electrical specifications and contact configuration.

Q: Which substitute part has the best inventory availability?

A: Part 103648-8 from TE Connectivity AMP Connectors (AMPMODU MTE series) has the highest inventory at 2666 units. Part 65240-009LF from Amphenol ICC (FCI) is the second highest at 2259 units.

Q: Are there any compliance differences between the substitute parts?

A: All parts are RoHS compliant. Parts 2-87175-0 and M20-1060900 carry ROHS3 certification, which represents enhanced regulatory compliance. Part 65240-009LF is REACH Affected, while other parts are either REACH Unaffected or Vendor Undefined. All parts carry Moisture Sensitivity Level 1 (Unlimited).

Q: Can I use the M20-1060900 in an application requiring -65°C operation?

A: No. The M20-1060900 operates within -25°C ~ 85°C. For applications requiring -65°C minimum operation, use 925369-9, 1-87175-9, 103648-8, 2-87175-0, or 65240-009LF.

Q: Do these connectors include contacts?

A: No. All listed parts are housings only. Contacts must be ordered separately and are not included with any of these part numbers.

Q: What is the significance of Moisture Sensitivity Level 1?

A: MSL 1 (Unlimited) indicates that these connectors have unlimited shelf life and do not require special moisture-controlled storage conditions. They can be stored and handled under standard industrial conditions without degradation.

Q: Can I mix and match different substitute parts in the same assembly?

A: Yes, provided the application does not have specific color or material requirements. All parts maintain identical electrical and mechanical specifications for the 9-position, 2.54mm pitch receptacle housing configuration.
