TE Connectivity 925369-7 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

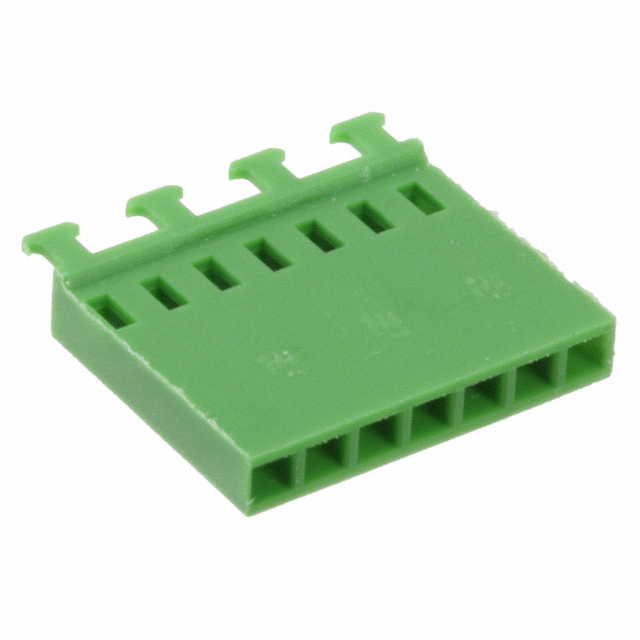

The TE Connectivity 925369-7 is a 7-position receptacle housing connector with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts. The part is actively manufactured and RoHS compliant, with unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	7
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 925369-7 is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 7
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Secondary Considerations:

Operating Temperature Range: Minimum -65°C and maximum 105°C or higher
RoHS Compliance: Required
Insulation Material: Varies by substitute (does not restrict substitution)
Housing Color: Varies by substitute (does not restrict substitution)
Manufacturer Series: Different series permitted if primary criteria met

All identified substitute parts maintain full electrical and mechanical compatibility with the main part number across these defined parameters.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Positions	Pitch	Connector Type	Contact Type	Mounting Type	Termination	Operating Temp (°C)	Insulation Material	Color	RoHS Status	MSL
925369-7	TE Connectivity AMP Connectors	AMPMODU Mod IV	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-65 ~ 105	Polyamide (PA66), Nylon 6/6	Green	RoHS Compliant	1
1-87175-6	TE Connectivity AMP Connectors	AMPMODU	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-65 ~ 105	Polyester, Glass Filled	Black	RoHS Compliant	1
926475-7	TE Connectivity AMP Connectors	AMPMODU Mod IV	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-65 ~ 105	Polybutylene Terephthalate (PBT), Glass Filled	Black	RoHS Compliant	1
0050579207	Molex	SL 70066	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-40 ~ 105	Polyester, Glass Filled	Black	ROHS3 Compliant	1
65039-030LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-40 ~ 105	Polyphenylene, Modified	Black	RoHS Compliant	1
65240-007LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	7	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	-65 ~ 125	Thermoplastic, Glass Filled	Blue	RoHS Compliant	1

Engineering Selection Recommendations

TE Connectivity 1-87175-6: This substitute maintains full compatibility with the 925369-7 across all critical electrical and mechanical parameters. Both parts are TE Connectivity products with identical pitch, position count, and termination method. The 1-87175-6 operates within the same temperature range and carries RoHS compliance. The primary difference is housing color (black versus green) and insulation material composition. This part is suitable for applications where color differentiation is not a design requirement.

TE Connectivity 926475-7: This substitute is from the same AMPMODU Mod IV series as the main part and shares identical electrical and mechanical specifications. Operating temperature range, pitch, position count, and contact configuration are fully equivalent. RoHS compliance is maintained. The 926475-7 uses polybutylene terephthalate (PBT) glass-filled insulation material and black housing color. This part provides direct functional equivalence with material variation.

Molex 0050579207: This substitute meets all critical substitution parameters with 7 positions, 0.100" pitch, crimp termination, and free-hanging mounting. The operating temperature range is -40°C to 105°C, which covers the upper specification of the main part but has a higher minimum temperature limit. ROHS3 compliance is confirmed. The part belongs to the SL 70066 series and features polyester glass-filled insulation. This part is suitable for applications where the -40°C minimum temperature is acceptable.

Amphenol ICC 65039-030LF: This substitute provides equivalent electrical and mechanical functionality with 7 positions, 0.100" pitch, and crimp termination. Operating temperature range is -40°C to 105°C. RoHS compliance is confirmed with REACH affected status. The Mini-PV™ and Basics+ series designation indicates this part is from a different product family but maintains full parameter equivalence. This part is suitable for applications where the -40°C minimum temperature is acceptable.

Amphenol ICC 65240-007LF: This substitute exceeds the operating temperature specification of the main part, supporting -65°C to 125°C operation. All critical parameters match: 7 positions, 0.100" pitch, crimp termination, and free-hanging mounting. RoHS compliance is confirmed with REACH affected status. The thermoplastic glass-filled insulation and blue housing color differentiate this part. This part is suitable for applications requiring extended temperature performance.

Frequently Asked Questions (FAQ)

Q: Can the 925369-7 be directly replaced with any of these substitute parts?

A: Yes. All identified substitute parts maintain electrical and mechanical equivalence across the critical parameters that define connector compatibility: 7-position receptacle configuration, 0.100" (2.54mm) pitch, female socket contacts, crimp termination, and free-hanging in-line mounting. Physical and electrical interchangeability is confirmed.

Q: What is the significance of the different insulation materials listed for each substitute?

A: Insulation material composition affects mechanical durability, chemical resistance, and long-term environmental performance. The main part uses polyamide (PA66) nylon 6/6, while substitutes use polyester, polybutylene terephthalate (PBT), polyphenylene, or thermoplastic materials. All materials are suitable for the specified operating temperature range and moisture sensitivity level. Material selection should be based on the specific environmental conditions of the application.

Q: Why do some substitutes have a minimum operating temperature of -40°C instead of -65°C?

A: The Molex 0050579207 and Amphenol ICC 65039-030LF parts specify -40°C as the minimum operating temperature, compared to -65°C for the main part and other substitutes. These parts remain fully functional within their specified range and are suitable for applications that do not require operation below -40°C. Applications requiring -65°C minimum operation should use the 925369-7, 1-87175-6, 926475-7, or 65240-007LF.

Q: What does RoHS compliance mean for these connector housings?

A: RoHS (Restriction of Hazardous Substances) compliance indicates that the part does not contain restricted substances including lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, or polybrominated diphenyl ethers above specified thresholds. All listed parts carry RoHS compliance certification (RoHS Compliant or ROHS3 Compliant), confirming suitability for regulated applications.

Q: Does housing color affect electrical performance or compatibility?

A: Housing color is a visual identifier and does not affect electrical performance or mechanical compatibility. The main part is green, while most substitutes are black or blue. Color selection is typically driven by application requirements, circuit board design conventions, or internal documentation standards. Electrical and mechanical function remains identical regardless of housing color.

Q: What is Moisture Sensitivity Level (MSL) and why is it important?

A: MSL indicates the sensitivity of the component to moisture absorption during storage and handling. MSL 1 (Unlimited) means the part has unlimited shelf life and does not require special moisture-controlled storage conditions. All listed parts carry MSL 1 rating, confirming they can be stored and handled under standard industrial conditions without special precautions.

Q: Can I use the 65240-007LF in applications requiring extended temperature performance?

A: Yes. The Amphenol ICC 65240-007LF supports operating temperatures from -65°C to 125°C, which exceeds the -65°C to 105°C specification of the main part. This part is suitable for applications requiring operation at temperatures above 105°C, up to 125°C maximum.

Q: Are contacts included with these connector housings?

A: No. All listed parts are connector housings only. Contacts are not included and must be ordered separately. The crimp termination type indicates that contacts are designed for crimping onto wire conductors before insertion into the housing.
