TE Connectivity 925367-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 925367-6 is a 12-position rectangular connector receptacle housing designed for the AMPMODU Mod IV series. This component functions as a female socket housing with 0.100" (2.54mm) pitch spacing, configured in a 2-row arrangement for crimp-terminated contacts. The part is manufactured from Polyamide (PA66) Nylon 6/6 material and operates across a temperature range of -65°C to 105°C.

The 925367-6 maintains Active product status with RoHS compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified based on matching electrical and mechanical parameters: 12-position configuration, 0.100" pitch, 2-row layout, receptacle type with female socket contacts, free-hanging in-line mounting, and crimp termination. Alternative housings are available in different insulation materials and color options while maintaining core dimensional and functional compatibility.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C to 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitute parts for the 925367-6 are qualified based on strict parametric equivalence across all critical dimensions and electrical characteristics. The substitution logic is based on the following mandatory matching criteria:

Core Electrical and Mechanical Parameters:

Connector type: Receptacle
Contact type: Female socket
Position count: 12
Pitch spacing: 0.100" (2.54mm)
Row configuration: 2 rows
Row spacing: 0.100" (2.54mm)
Mounting configuration: Free hanging in-line
Termination method: Crimp

Variable Parameters (Non-Limiting for Substitution):

Insulation material composition (Polyamide, Thermoplastic, Polyester, Polybutylene Terephthalate)
Housing color (Green, Black, Gray)
Series designation (AMPMODU Mod IV, AMPMODU, Micro Quadlok)
Operating temperature range (within -40°C to 120°C or -65°C to 105°C)
RoHS certification version (RoHS Compliant or ROHS3 Compliant)

All identified substitute parts maintain identical position count, pitch, row spacing, mounting type, and contact termination specifications. Variations in insulation material and color do not affect mechanical or electrical interchangeability within the connector housing function.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Rows	Row Spacing	Insulation Material	Color	Operating Temperature	RoHS Status
925367-6	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Polyamide (PA66), Nylon 6/6	Green	-65°C to 105°C	RoHS Compliant
1-86177-3	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Thermoplastic	Black	-65°C to 105°C	ROHS3 Compliant
1-87133-1	TE Connectivity AMP	AMPMODU	12	0.100"	2	0.100"	Polyester, Glass Filled	Black	-65°C to 105°C	ROHS3 Compliant
1-968318-1	TE Connectivity AMP	Micro Quadlok	12	0.100"	2	0.100"	Polybutylene Terephthalate (PBT), Glass Filled	Black	-40°C to 120°C	ROHS3 Compliant
1394048-1	TE Connectivity AMP	Micro Quadlok	12	0.100"	2	0.100"	Polybutylene Terephthalate (PBT), Glass Filled	Black	-40°C to 120°C	ROHS3 Compliant
2-968318-1	TE Connectivity AMP	Micro Quadlok	12	0.100"	2	0.100"	Polybutylene Terephthalate (PBT), Glass Filled	Gray	-40°C to 120°C	ROHS3 Compliant

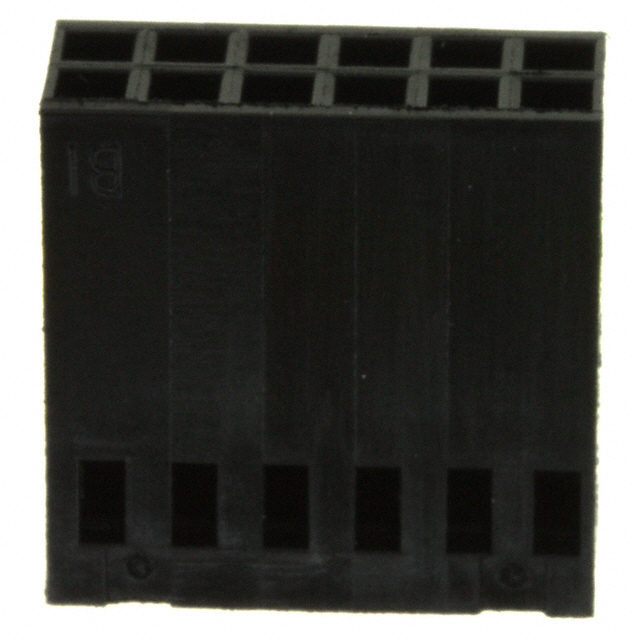

87456-7	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Polyamide (PA), Nylon, Glass Filled	Black	-65°C to 105°C	RoHS Compliant
87977-4	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Thermoplastic	Black	-65°C to 105°C	RoHS Compliant

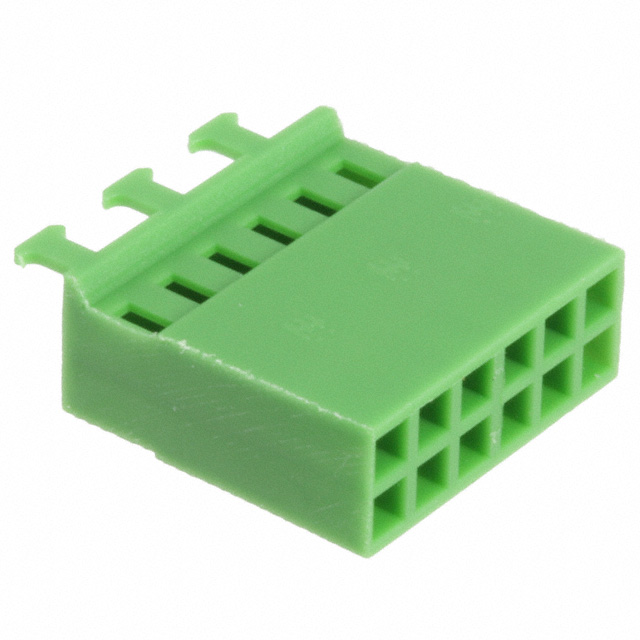

925370-6	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Polyamide (PA66), Nylon 6/6, Glass Filled	Green	-65°C to 105°C	RoHS Compliant
926209-6	TE Connectivity AMP	Not Specified	12	0.100"	2	0.100"	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65°C to 105°C	RoHS Compliant

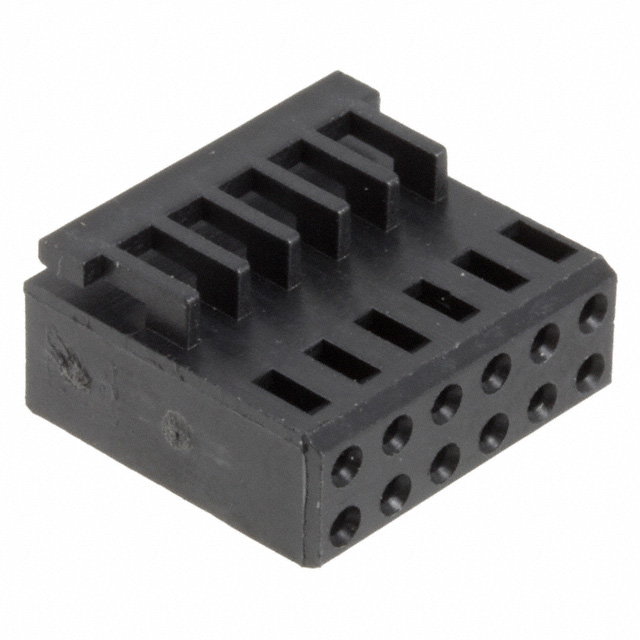

926476-6	TE Connectivity AMP	AMPMODU Mod IV	12	0.100"	2	0.100"	Thermoplastic	Black	-65°C to 105°C	ROHS3 Compliant

Engineering Selection Recommendations

All substitute parts listed maintain Active product status and are manufactured by TE Connectivity AMP Connectors. Selection among equivalent parts should be based on the following engineering considerations:

RoHS Compliance Alignment: Parts 1-86177-3, 1-87133-1, 1-968318-1, 1394048-1, 2-968318-1, and 926476-6 carry ROHS3 certification, representing the current RoHS 3 standard. The original 925367-6 and parts 87456-7, 87977-4, 925370-6, and 926209-6 carry RoHS Compliant status. Selection should align with system-level compliance requirements.

Operating Temperature Range: The original 925367-6 operates from -65°C to 105°C. Parts 1-968318-1, 1394048-1, and 2-968318-1 extend the upper temperature limit to 120°C while maintaining -40°C minimum. These parts are suitable for applications requiring enhanced thermal performance. All other substitutes maintain the -65°C to 105°C range.

Material Composition: Insulation material varies across substitutes. Polyamide (PA66) Nylon 6/6 formulations (925367-6, 925370-6) provide baseline performance. Glass-filled variants (87456-7, 925370-6, 926209-6, 1-968318-1, 1394048-1, 2-968318-1, 1-87133-1) offer enhanced mechanical properties. Thermoplastic options (1-86177-3, 87977-4, 926476-6) provide alternative material characteristics.

Series Compatibility: AMPMODU Mod IV series parts (925367-6, 1-86177-3, 87456-7, 87977-4, 925370-6, 926476-6) maintain consistent series designation. AMPMODU series (1-87133-1) and Micro Quadlok series (1-968318-1, 1394048-1, 2-968318-1) represent alternative connector families with identical electrical and mechanical specifications.

Color Specification: The original 925367-6 is green. Black alternatives include 1-86177-3, 1-87133-1, 1-968318-1, 1394048-1, 87456-7, 87977-4, 926209-6, and 926476-6. Gray option is available as 2-968318-1. Green alternatives include 925370-6. Color selection should align with system documentation and assembly requirements.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the 925367-6?

A: Substitution is determined by matching the following parameters: 12-position configuration, 0.100" (2.54mm) pitch, 2-row layout with 0.100" row spacing, receptacle connector type with female socket contacts, free-hanging in-line mounting, and crimp contact termination. All listed parts meet these criteria. Variations in insulation material, color, series designation, and operating temperature range do not affect mechanical or electrical interchangeability.

Q: Can I use a part with a different operating temperature range?

A: Yes. Parts 1-968318-1, 1394048-1, and 2-968318-1 operate from -40°C to 120°C, extending the upper temperature limit compared to the original -65°C to 105°C specification. These parts are suitable for applications requiring higher temperature performance. All other substitutes maintain the original -65°C to 105°C range. Selection should align with application thermal requirements.

Q: Does the insulation material affect compatibility?

A: No. The insulation material (Polyamide, Thermoplastic, Polyester, or Polybutylene Terephthalate) does not affect the connector's electrical or mechanical interchangeability. Material selection may be driven by specific application requirements such as chemical resistance, mechanical strength, or cost considerations, but all materials listed are functionally equivalent for housing purposes.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: RoHS Compliant indicates compliance with the original Restriction of Hazardous Substances directive. ROHS3 Compliant indicates compliance with RoHS 3 (Directive 2015/863/EU), which includes additional restricted substances. System-level compliance requirements should determine which certification level is appropriate for your application.

Q: Are parts from different series (AMPMODU Mod IV, AMPMODU, Micro Quadlok) interchangeable?

A: Yes. All listed parts maintain identical electrical and mechanical specifications regardless of series designation. Series designation reflects product family organization but does not affect connector housing interchangeability. Selection may be based on availability, cost, or supply chain considerations.

Q: Does color affect electrical performance?

A: No. Color is a visual identifier only and does not affect electrical or mechanical performance. Color selection should align with system documentation, assembly procedures, or visual identification requirements.

Q: What does "Contacts Not Included" mean?

A: The connector housing is supplied without pre-installed contacts. Contacts must be obtained separately and crimped into the housing according to TE Connectivity specifications. This is standard for modular connector systems.

Q: Can I mix parts from this list in the same assembly?

A: Yes. All parts listed are mechanically and electrically equivalent. However, assembly procedures should follow TE Connectivity documentation for the specific housing type selected. Mixing different housing materials or series within a single assembly is permissible from a functional standpoint but should be evaluated against system design and documentation requirements.
