TE Connectivity 925366-8 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 925366-8 is an 8-position receptacle housing connector with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts. The part is actively manufactured and RoHS compliant, with unlimited moisture sensitivity rating (MSL 1). Equivalent and substitute parts are identified based on matching electrical and mechanical parameters that ensure functional compatibility in rectangular connector applications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 925366-8 is determined by strict equivalence across the following critical parameters:

Primary Matching Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 8
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp

Secondary Compatibility Factors:

Operating Temperature Range: Minimum -65°C to maximum 105°C or higher
Moisture Sensitivity Level: 1 (Unlimited)
RoHS Compliance Status: Active product status

Substitute parts are grouped into two categories: direct TE Connectivity AMPMODU series equivalents and cross-manufacturer alternatives from Molex and Amphenol ICC (FCI). All listed substitutes maintain identical electrical and mechanical interface specifications. Variations in insulation material, color, and series designation do not affect functional compatibility when core parameters remain constant.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
925366-8	TE Connectivity	AMPMODU Mod IV	8	0.100" (2.54mm)	Green	Polyamide (PA), Nylon	-65°C ~ 105°C	RoHS Compliant	707
1-87175-7	TE Connectivity	AMPMODU	8	0.100" (2.54mm)	Black	Polyester, Glass Filled	-65°C ~ 105°C	ROHS3 Compliant	1440
1-87175-8	TE Connectivity	AMPMODU	8	0.100" (2.54mm)	Black	Polyester, Glass Filled	-65°C ~ 105°C	RoHS Compliant	2413

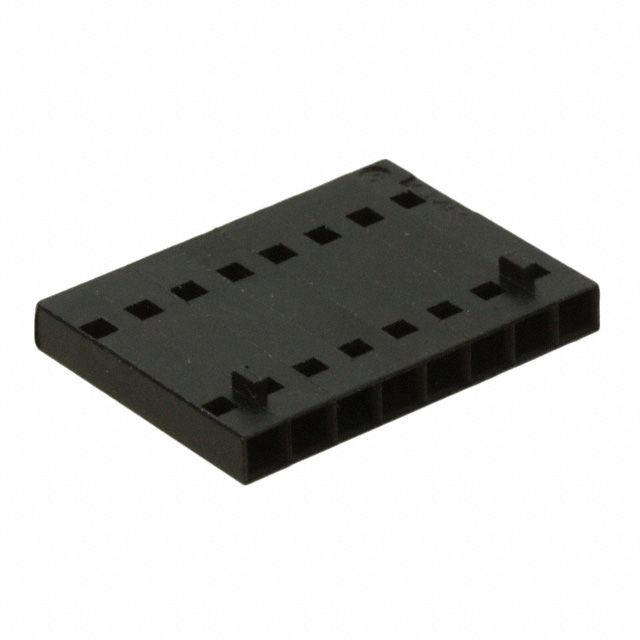

103648-7	TE Connectivity	AMPMODU MTE	8	0.100" (2.54mm)	Black	Thermoplastic	-65°C ~ 105°C	ROHS3 Compliant	2225
103688-7	TE Connectivity	AMPMODU MTE	8	0.100" (2.54mm)	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	1391

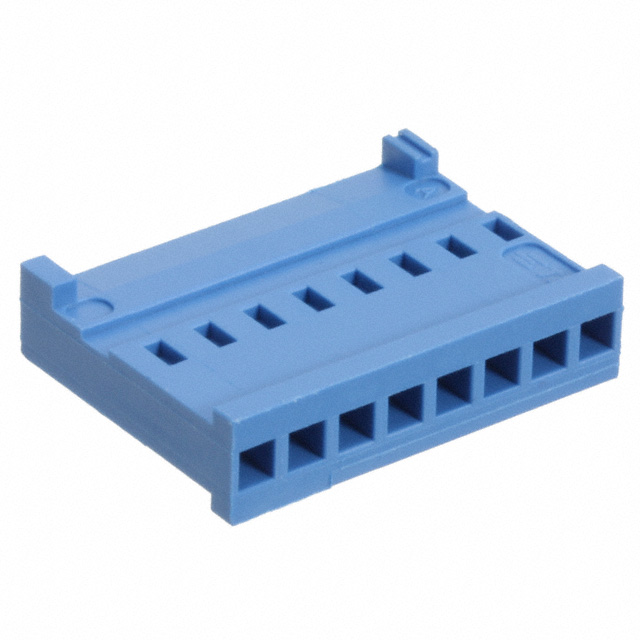

281838-8	TE Connectivity	HE13/HE14	8	0.100" (2.54mm)	Black	Polybutylene Terephthalate (PBT), Glass Filled	-55°C ~ 125°C	RoHS Compliant	6366
925369-8	TE Connectivity	AMPMODU Mod IV	8	0.100" (2.54mm)	Green	Polyamide (PA66), Nylon 6/6	-65°C ~ 105°C	RoHS Compliant	3783

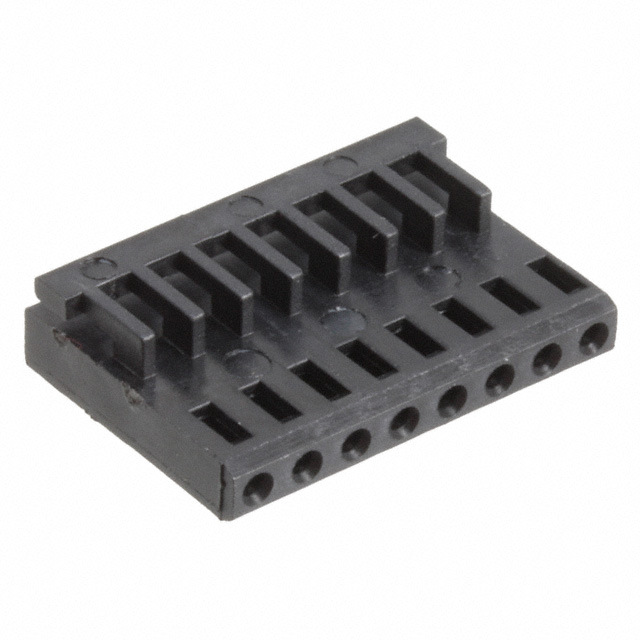

926475-8	TE Connectivity	AMPMODU Mod IV	8	0.100" (2.54mm)	Black	Polybutylene Terephthalate (PBT), Glass Filled	-65°C ~ 105°C	RoHS Compliant	683
0050579308	Molex	SL 70066	8	0.100" (2.54mm)	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	11834
65039-029LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	8	0.100" (2.54mm)	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1704
65240-008LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	8	0.100" (2.54mm)	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	1198

Engineering Selection Recommendations

TE Connectivity Direct Equivalents (Same Series):

The parts 925369-8 and 926475-8 are direct equivalents within the AMPMODU Mod IV series. Both maintain identical electrical and mechanical specifications to the 925366-8, with the primary difference being housing color (green versus black) and insulation material composition. These parts are recommended for applications where series consistency is required.

TE Connectivity Cross-Series Alternatives:

Parts 1-87175-7, 1-87175-8, 103648-7, 103688-7, and 281838-8 are functionally equivalent across all critical parameters. The 281838-8 offers an extended operating temperature range (-55°C ~ 125°C) compared to the base specification, making it suitable for applications requiring enhanced thermal performance. All TE Connectivity alternatives carry active product status and RoHS compliance certifications.

Cross-Manufacturer Alternatives:

The Molex 0050579308 and Amphenol ICC (FCI) parts 65039-029LF and 65240-008LF provide functional equivalence with identical connector geometry and electrical interface. The Amphenol 65240-008LF offers the widest operating temperature range (-65°C ~ 125°C) and is suitable for demanding thermal environments. Cross-manufacturer substitution requires verification of mechanical fit within the specific application assembly.

Compliance and Availability:

All substitute parts maintain RoHS compliance status. Selection should prioritize parts with active product status and highest inventory availability for supply chain continuity. The 281838-8 (6366 pcs) and Molex 0050579308 (11834 pcs) offer the highest stock levels.

Frequently Asked Questions (FAQ)

Q: Can I substitute the 925366-8 with any of the listed alternatives without design changes?

A: Yes, all listed parts are functionally equivalent across connector type, contact configuration, pitch, and mounting method. No design changes are required for electrical or mechanical interface compatibility. However, physical housing color and insulation material differ among alternatives.

Q: What is the significance of the operating temperature range differences?

A: The 925366-8 operates from -65°C to 105°C. Substitute parts 281838-8 and 65240-008LF extend the upper limit to 125°C, providing additional thermal margin for high-temperature applications. Parts 0050579308 and 65039-029LF have a minimum operating temperature of -40°C instead of -65°C, which may limit use in extreme cold environments.

Q: Are cross-manufacturer parts (Molex and Amphenol ICC) directly interchangeable?

A: Cross-manufacturer parts maintain identical electrical and mechanical interface specifications. Physical housing dimensions and connector geometry are equivalent. Mechanical fit within the application assembly should be verified, particularly for tight-tolerance mounting scenarios.

Q: Does housing color affect electrical performance?

A: No. Housing color is a visual identifier only and does not affect electrical performance or signal integrity. Color selection is typically driven by application documentation, assembly procedures, or inventory management practices.

Q: What does MSL 1 (Unlimited) mean for moisture sensitivity?

A: MSL 1 indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed substitute parts carry the same MSL 1 rating.

Q: Why do some parts have different insulation materials?

A: Insulation material variations (Polyamide, Polyester, Thermoplastic, PBT, Polyphenylene) reflect different manufacturing series and design generations. All materials meet the same electrical and mechanical performance requirements for this connector category. Material selection does not affect functional compatibility.

Q: Which substitute offers the best inventory availability?

A: The Molex 0050579308 has the highest inventory level at 11,834 pieces, followed by the TE Connectivity 281838-8 at 6,366 pieces. These parts are recommended for applications requiring immediate availability.

Q: Can I mix different substitute parts in the same assembly?

A: Yes. All substitute parts are functionally equivalent and can be used interchangeably within the same assembly. However, maintaining consistent part numbers within a single production batch is recommended for traceability and quality control purposes.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts carry either RoHS Compliant or ROHS3 Compliant certification status, meeting current regulatory requirements for restricted substances.
