TE Connectivity AMP Connectors 92009-5 Equivalent & Substitute Parts
Part Overview

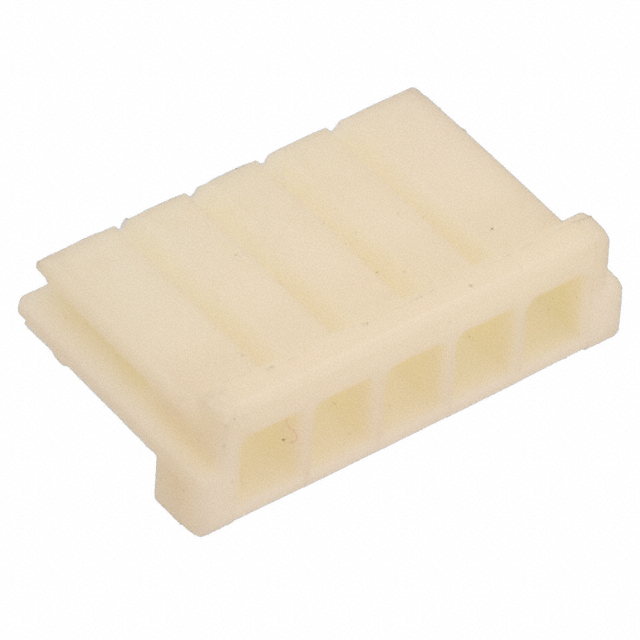

The TE Connectivity AMP Connectors 92009-5 is a 5-position rectangular connector receptacle housing with 2.50mm pitch, designed for free-hanging in-line applications. This component is classified as an active product and is RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity while maintaining connector compatibility and performance specifications.
Substiute Parts
Key Parameters
| Parameter | Specification |
|---|---|
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 5 |
| Pitch | 0.098" (2.50mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Color | Natural |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | RoHS Compliant |
Substitute Part Grouping Explanation
Substitute parts for the 92009-5 are qualified based on matching the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (5), pitch (2.50mm), number of rows (1), mounting type (free hanging in-line), contact termination (crimp), insulation material (polyamide PA66/Nylon 6/6), and color (natural). All substitute parts listed maintain these core electrical and mechanical specifications, ensuring mechanical and electrical compatibility within the connector interface. Operating temperature ranges and series designations vary among substitutes and are documented for application-specific selection. All substitute parts are active products with RoHS compliance status confirmed.
Parameter Comparison
| Part Number | Manufacturer | Series | Connector Type | Positions | Pitch | Insulation Material | Operating Temperature | RoHS Status | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|
| 92009-5 | TE Connectivity AMP Connectors | MIS | Receptacle | 5 | 0.098" (2.50mm) | Polyamide (PA66), Nylon 6/6 | -25°C ~ 105°C | RoHS Compliant | 1038 |
| 171822-5 | TE Connectivity AMP Connectors | EI | Receptacle | 5 | 0.098" (2.50mm) | Polyamide (PA66), Nylon 6/6 | -20°C ~ 95°C | RoHS Compliant | 14940 |
| 172142-5 | TE Connectivity AMP Connectors | EI | Receptacle | 5 | 0.098" (2.50mm) | Polyamide (PA66), Nylon 6/6 | -20°C ~ 95°C | ROHS3 Compliant | 818 |
| 440133-5 | TE Connectivity AMP Connectors | High Performance Interconnect (HPI) | Receptacle | 5 | 0.098" (2.50mm) | Polyamide (PA66), Nylon 6/6 | -25°C ~ 105°C | ROHS3 Compliant | 8220 |
| EHR-5 | JST Sales America Inc. | EH | Receptacle | 5 | 0.098" (2.50mm) | Polyamide (PA66), Nylon 6/6 | -25°C ~ 85°C | ROHS3 Compliant | 21400 |
Engineering Selection Recommendations
TE Connectivity 92009-5 (MIS Series): Primary part with RoHS compliance and operating temperature range of -25°C to 105°C. Suitable for applications requiring extended high-temperature performance.
TE Connectivity 171822-5 (EI Series): Parametric equivalent with reduced operating temperature range (-20°C to 95°C). RoHS compliant. Highest inventory availability among TE Connectivity EI series options (14940 pcs).
TE Connectivity 172142-5 (EI Series): Parametric equivalent with reduced operating temperature range (-20°C to 95°C). ROHS3 compliant. Lower inventory availability (818 pcs).

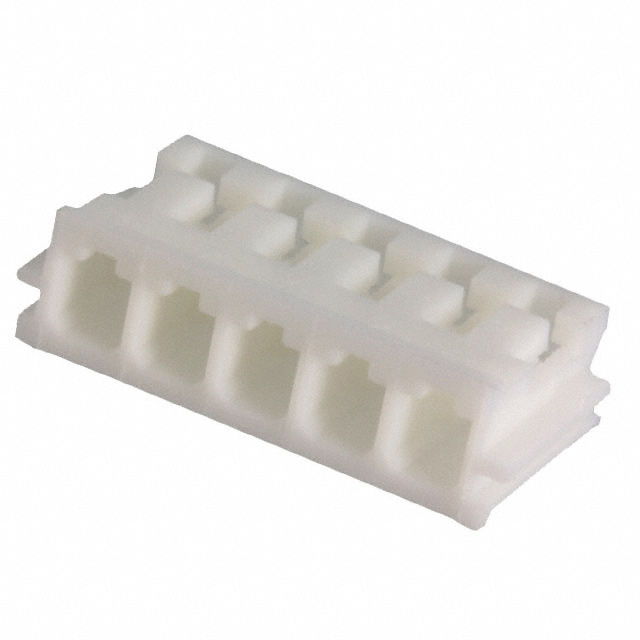

TE Connectivity 440133-5 (HPI Series): Parametric equivalent with operating temperature range matching the primary part (-25°C to 105°C). ROHS3 compliant with REACH unaffected status. Suitable for applications requiring extended temperature performance with enhanced compliance documentation.
JST EHR-5 (EH Series): Cross-manufacturer parametric equivalent from JST Sales America Inc. Operating temperature range -25°C to 85°C. ROHS3 compliant with REACH unaffected status. Highest inventory availability (21400 pcs). Suitable for applications where cross-manufacturer compatibility is acceptable and extended high-temperature performance is not required.
Frequently Asked Questions (FAQ)
Q: Can the 92009-5 be directly replaced with any of the listed substitute parts?
A: All listed substitute parts share identical electrical and mechanical specifications: 5-position receptacle housing, 2.50mm pitch, female socket contacts, crimp termination, polyamide insulation, and natural color. Direct mechanical and electrical compatibility is established for all substitutes within the connector interface. Operating temperature ranges and manufacturer series differ and must be evaluated against application requirements.
Q: What is the primary difference between the 92009-5 and the 171822-5?
A: Both parts are TE Connectivity products with identical connector specifications. The 92009-5 operates from -25°C to 105°C, while the 171822-5 operates from -20°C to 95°C. The 171822-5 belongs to the EI series and offers significantly higher inventory availability (14940 pcs versus 1038 pcs).
Q: How does the TE Connectivity 440133-5 differ from the 92009-5?
A: The 440133-5 is part of the High Performance Interconnect (HPI) series and matches the 92009-5 operating temperature range (-25°C to 105°C). Both are ROHS3 compliant. The primary distinction is series designation and REACH status documentation (REACH unaffected for 440133-5).
Q: Is the JST EHR-5 compatible with TE Connectivity connector systems?
A: The EHR-5 is a cross-manufacturer equivalent with identical connector specifications: 5-position receptacle, 2.50mm pitch, female socket contacts, and crimp termination. Mechanical and electrical compatibility is established. The operating temperature range is -25°C to 85°C, which is lower than the primary part. Cross-manufacturer compatibility depends on mating connector specifications and application requirements.
Q: What packaging options are available for substitute parts?
A: The primary part 92009-5 is supplied in standard packaging. All substitute parts (171822-5, 172142-5, 440133-5, and EHR-5) are available in bulk packaging.
Q: Which substitute part offers the highest inventory availability?
A: The JST EHR-5 offers the highest inventory availability at 21400 pcs. Among TE Connectivity options, the 171822-5 (EI series) provides the highest availability at 14940 pcs.
Q: Are all substitute parts RoHS compliant?
A: The primary part 92009-5 is RoHS compliant. All substitute parts are either RoHS compliant or ROHS3 compliant, confirming compliance with RoHS directives.
