Equivalent & Substitute Parts for Honeywell 91MCE16-P1

Part Overview

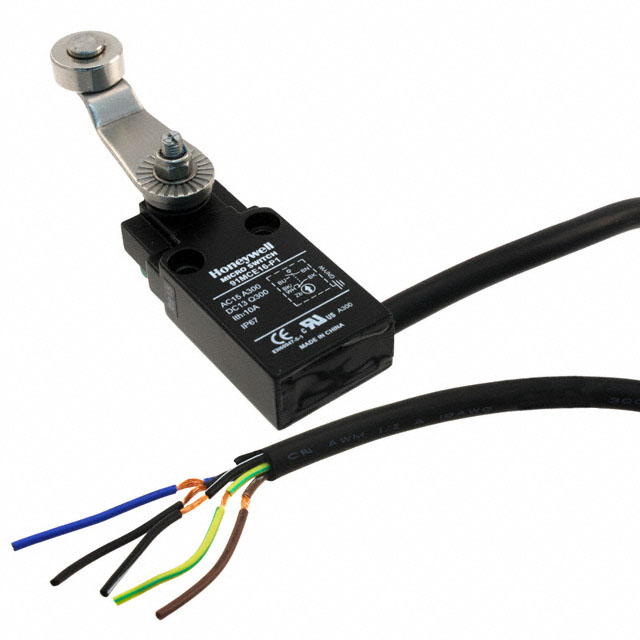

The Honeywell 91MCE16-P1 is a snap action DPST switch rated for 6A at 120V AC with chassis mount configuration and cable lead termination. This component features IP67 ingress protection, side rotary roller actuator, and dual-pole switching capability for On-Momentary and Off-Momentary operations.

The 91MCE16-P1 carries an Obsolete product status. Identifying equivalent substitute parts ensures design continuity and maintains supply chain reliability for applications requiring DPST snap action switching with identical electrical and mechanical specifications.

Key Parameters

Parameter	Specification
Circuit Configuration	DPST-NO/NC
Switch Function	On-Mom, Off-Mom
Current Rating (AC)	6A
Current Rating (DC)	550mA
Voltage Rating (AC)	120V
Voltage Rating (DC)	125V
Actuator Type	Side Rotary, Roller
Mounting Type	Chassis Mount
Termination Style	Cable Leads
Ingress Protection	IP67
Operating Temperature Range	-25°C to 85°C
Electrical Life	500,000 Cycles
Mechanical Life	5,000,000 Cycles
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 91MCE16-P1 is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Requirements:

Circuit configuration must be DPST-NO/NC
Switch function must be On-Mom, Off-Mom
Current rating must support minimum 6A AC and 550mA DC
Voltage ratings must meet or exceed 120V AC and 125V DC

Mechanical Equivalence Requirements:

Actuator type must be Side Rotary with Roller
Mounting configuration must be Chassis Mount
Termination must be Cable Leads
Ingress protection must maintain IP67 rating

Compliance Requirements:

RoHS Compliant status required
ECCN classification EAR99

The substitute part NGCMA10AX01A1B satisfies all electrical and mechanical equivalence criteria while maintaining identical circuit topology, current handling, voltage ratings, actuator configuration, and environmental protection specifications.

Parameter Comparison

Parameter	91MCE16-P1	NGCMA10AX01A1B	Compatibility
Manufacturer	Honeywell Sensing and Productivity Solutions	Honeywell Sensing and Productivity Solutions	Identical
Circuit Configuration	DPST-NO/NC	DPST-NO/NC	Equivalent
Switch Function	On-Mom, Off-Mom	On-Mom, Off-Mom	Equivalent
Current Rating (AC)	6A	6A	Equivalent
Current Rating (DC)	550mA	550mA	Equivalent
Voltage Rating (AC)	120V	120V	Equivalent
Voltage Rating (DC)	125V	125V	Equivalent
Actuator Type	Side Rotary, Roller	Side Rotary, Roller	Equivalent
Mounting Type	Chassis Mount	Chassis Mount	Equivalent
Termination Style	Cable Leads	Cable Leads	Equivalent
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	Equivalent
Electrical Life	500,000 Cycles	500,000 Cycles	Equivalent
Mechanical Life	5,000,000 Cycles	5,000,000 Cycles	Equivalent
Operating Temperature Range	-25°C to 85°C	-25°C to 75°C	NGCMA10AX01A1B has narrower range
RoHS Status	RoHS Compliant	RoHS Compliant	Equivalent
Product Status	Obsolete	Active	Substitute is active

Engineering Selection Recommendations

The NGCMA10AX01A1B serves as a direct functional equivalent to the obsolete 91MCE16-P1 based on identical electrical specifications, circuit topology, and mechanical configuration. Both components are manufactured by Honeywell Sensing and Productivity Solutions and maintain RoHS Compliance with EAR99 ECCN classification.

The primary distinction is product lifecycle status: the 91MCE16-P1 is Obsolete while NGCMA10AX01A1B maintains Active status, ensuring continued availability and supply chain support. The NGCMA10AX01A1B features stainless steel roller construction and operates within a -25°C to 75°C temperature range, compared to the 91MCE16-P1 range of -25°C to 85°C. Applications requiring operation above 75°C require evaluation of the upper temperature limit differential.

Both parts deliver identical electrical performance: 6A AC at 120V, 550mA DC at 125V, with 500,000 electrical cycles and 5,000,000 mechanical cycles. Mechanical specifications including operating force, pretravel, differential travel, and overtravel parameters support equivalent functional performance in DPST momentary switching applications.

Frequently Asked Questions (FAQ)

Q: Can NGCMA10AX01A1B directly replace 91MCE16-P1 in existing designs?

A: Yes. Both components share identical circuit configuration (DPST-NO/NC), electrical ratings (6A AC/120V, 550mA DC/125V), actuator type (Side Rotary Roller), mounting configuration (Chassis Mount), termination style (Cable Leads), and ingress protection (IP67). Functional substitution is supported for applications operating within the -25°C to 75°C temperature range.

Q: What is the temperature range difference between these parts?

A: The 91MCE16-P1 operates from -25°C to 85°C, while NGCMA10AX01A1B operates from -25°C to 75°C. Applications requiring sustained operation above 75°C must evaluate this 10°C upper limit reduction.

Q: Are both parts RoHS Compliant?

A: Yes. Both the 91MCE16-P1 and NGCMA10AX01A1B are RoHS Compliant and carry EAR99 ECCN classification.

Q: What is the significance of the product status difference?

A: The 91MCE16-P1 is classified as Obsolete, indicating discontinued manufacturing and limited future availability. The NGCMA10AX01A1B maintains Active status, ensuring ongoing production, supply chain availability, and manufacturer support.

Q: Are the mechanical life specifications identical?

A: Yes. Both components are rated for 5,000,000 mechanical cycles and 500,000 electrical cycles, supporting equivalent durability in momentary switching applications.

Q: What packaging differences exist between these parts?

A: The 91MCE16-P1 is supplied with standard packaging, while NGCMA10AX01A1B is supplied in Bulk packaging. Verify packaging requirements for your procurement and assembly processes.
