TE Connectivity AMP Connectors 917319-4 Equivalent & Substitute Parts

Part Overview

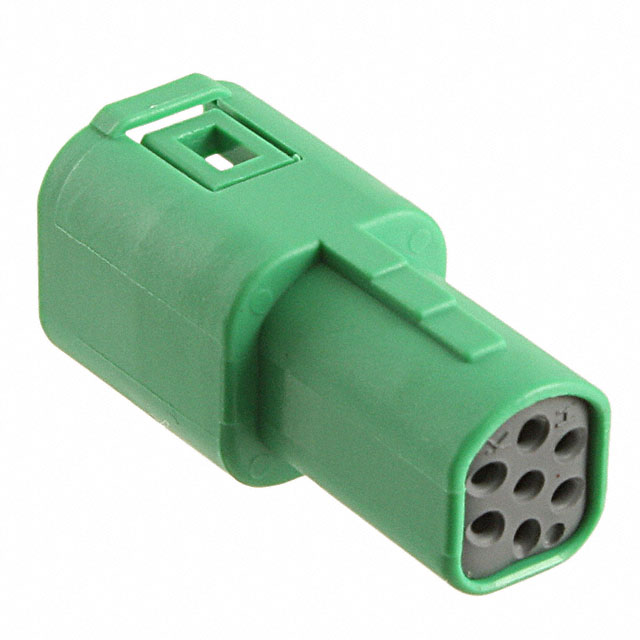

The TE Connectivity AMP Connectors 917319-4 is a 7-position rectangular connector receptacle housing from the Mini Multilock series. This component is classified as obsolete, indicating it is no longer in active production. The housing is designed for free-hanging (in-line) mounting applications with crimp contact termination and latch holder fastening. Due to its obsolete status, identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for ongoing production and maintenance requirements.

Substiute Parts

917319-4

TE Connectivity AMP ConnectorsIn Stock: 1029917319-4 Datasheet

Current PartRFQ

2822344-1

TE Connectivity AMP ConnectorsIn Stock: 21642822344-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 2822344-1 is classified as a direct equivalent based on the following critical parameters that determine substitution compatibility:

Core Matching Parameters:

• Manufacturer: TE Connectivity AMP Connectors (same manufacturer)
• Series: Mini Multilock (same series family)
• Connector Type: Receptacle (identical function)
• Contact Type: Tab (identical contact configuration)
• Number of Positions: 7 (identical position count)
• Mounting Type: Free Hanging (In-Line) (identical mounting)
• Contact Termination: Crimp (identical termination method)
• Color: Green (identical color specification)
• Moisture Sensitivity Level: 1 (Unlimited) (identical MSL rating)
• ECCN: EAR99 (identical export classification)
• HTSUS: 8536.69.8000 (identical tariff classification)

The substitute part 2822344-1 is currently in active production status, providing design continuity while addressing the obsolescence of the original 917319-4 component.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 2822344-1 is the appropriate selection for applications currently using the obsolete 917319-4 component. The following factors support this substitution:

Product Status Alignment: The substitute part maintains active production status with TE Connectivity AMP Connectors, ensuring long-term component availability and supply chain continuity.

Compliance and Certifications: The substitute part 2822344-1 carries RoHS Compliance certification, meeting current environmental and regulatory requirements. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications, maintaining consistent export and tariff treatment.

Functional Equivalence: The substitute part preserves all critical functional parameters including connector type, contact configuration, position count, mounting method, and termination approach. The Mini Multilock series designation confirms compatibility within the same connector family.

Electrical and Mechanical Compatibility: Both parts maintain identical moisture sensitivity levels (MSL 1 - Unlimited) and share the same color specification (Green). The substitute part provides specified operating temperature range (-40°C ~ 105°C) and insulation material composition (PBT, Glass Filled), offering enhanced documentation for design verification.

Frequently Asked Questions (FAQ)

Q: Can 2822344-1 be used as a direct replacement for 917319-4?

A: Yes. Both components are 7-position receptacle housings from the TE Connectivity Mini Multilock series with identical connector type, contact type, mounting configuration, and termination method. The substitute part is currently in active production, addressing the obsolescence of the original component.

Q: What are the key differences between these two parts?

A: The primary differences are product status (917319-4 is obsolete; 2822344-1 is active) and fastening type (Latch Holder versus Locking Ramp). The substitute part includes specified pitch (0.094"/2.40mm), row configuration (3 rows with 0.079"/2.00mm spacing), insulation material (PBT, Glass Filled), operating temperature range (-40°C ~ 105°C), and RoHS Compliance certification. The original part specifications for these parameters were not provided.

Q: Are there packaging differences between these parts?

A: The original part 917319-4 packaging specification was not provided. The substitute part 2822344-1 is supplied in Bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both parts require separate contact components?

A: Yes. Both 917319-4 and 2822344-1 are housings only. Contacts are not included and must be sourced separately. Ensure selected contacts are compatible with the 7-position configuration and crimp termination method.

Q: What is the significance of the fastening type difference?

A: The original part uses Latch Holder fastening, while the substitute uses Locking Ramp fastening. Both are fastening mechanisms within the Mini Multilock series. Verify that your application design accommodates the Locking Ramp configuration of the substitute part.

Q: Are the regulatory classifications identical?

A: Yes. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications. The substitute part adds RoHS Compliance certification, which meets current environmental regulations.

Q: What is the inventory status for these parts?

A: The original part 917319-4 has 980 pieces in stock (obsolete status). The substitute part 2822344-1 has 2100 pieces in stock with active production status, providing greater long-term availability assurance.
