TE Connectivity 9-160479-2 Quick Connect Female Crimp Connector Equivalent & Substitute Parts

Part Overview

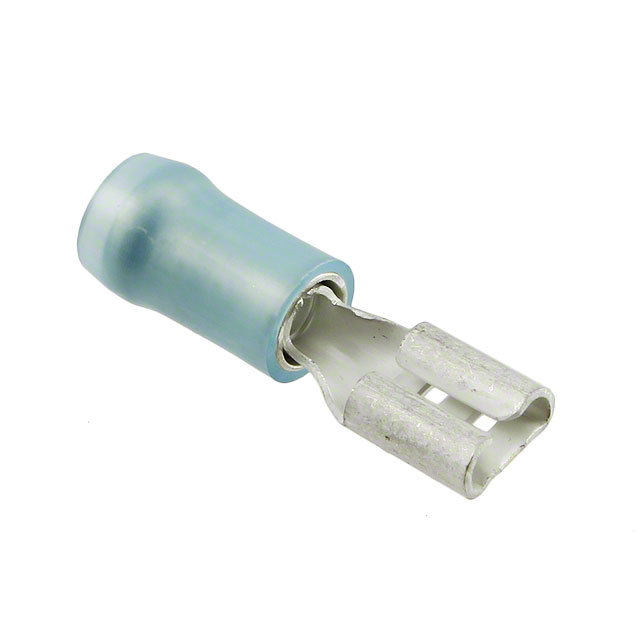

The TE Connectivity 9-160479-2 is a 0.187" (4.75mm) Quick Connect Female Crimp Connector designed for 14-16 AWG wire applications with non-mating end insulation. This connector is part of the Faston and PIDG series and features a brass contact with tin finish for reliable electrical connections in free-hanging, in-line mounting configurations.

The 9-160479-2 carries an Obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and field service requirements for applications utilizing this connector type.

Substiute Parts

9-160479-2

TE Connectivity AMP ConnectorsIn Stock: 10379-160479-2 Datasheet

Current PartRFQ

184235-1

TE Connectivity AMP ConnectorsIn Stock: 9897184235-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 9-160479-2 is determined by strict equivalence across critical electrical and mechanical parameters. The substitute part must maintain identical specifications for tab width, tab thickness, tab length, wire gauge range, gender, termination method, insulation configuration, contact material, contact finish, and mounting type. These parameters ensure mechanical fit, electrical performance, and functional compatibility within the original application circuit.

The TE Connectivity 184235-1 qualifies as a direct substitute based on matching all critical parameters listed above. Both connectors are manufactured by TE Connectivity AMP Connectors within the Faston and PIDG series and are designed for identical electrical and mechanical applications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 184235-1 is the direct substitute for the obsolete 9-160479-2. Both connectors meet identical electrical and mechanical specifications for 0.187" (4.75mm) Quick Connect Female Crimp Connectors rated for 14-16 AWG wire applications.

The 184235-1 offers the following advantages for design continuity:

The substitute part maintains Active product status, ensuring long-term availability and supply chain support compared to the Obsolete status of the original part. Both parts carry equivalent environmental compliance certifications: the main part is RoHS Compliant while the substitute is ROHS3 Compliant, both meeting current regulatory requirements. Moisture Sensitivity Level (MSL) ratings are identical at Level 1 (Unlimited), indicating equivalent handling and storage requirements.

The overall length variation between the two parts (0.862" versus 0.800") does not affect functional compatibility in free-hanging, in-line mounting applications where the connector is not constrained by tight spatial requirements. The substitute part provides an insulation diameter specification of 0.170" (4.75mm), which is documented for the 184235-1 but not specified for the original part.

Both connectors are manufactured by TE Connectivity AMP Connectors and share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, supporting equivalent regulatory and trade compliance profiles.

Frequently Asked Questions (FAQ)

Q: Can the 184235-1 be used as a direct replacement for the 9-160479-2 in existing applications?

A: Yes. The 184235-1 meets all critical electrical and mechanical specifications of the 9-160479-2, including tab width, tab thickness, tab length, wire gauge range, gender, termination method, insulation type, contact material, and contact finish. Both connectors are designed for identical functional applications within the Faston and PIDG series.

Q: What is the significance of the overall length difference between the two parts?

A: The 9-160479-2 has an overall length of 0.862" (21.90mm) while the 184235-1 measures 0.800" (20.32mm). This 0.062" (1.58mm) difference does not affect electrical performance or mechanical fit in free-hanging, in-line mounting configurations. The difference reflects design refinement between the obsolete and active versions of this connector type.

Q: Are there packaging differences between the main part and the substitute?

A: The 9-160479-2 packaging specification is not provided in the available data. The 184235-1 is available in Bulk packaging. Packaging selection should be based on production volume and inventory management requirements for your specific application.

Q: Do both connectors meet current environmental compliance standards?

A: Yes. The 9-160479-2 is RoHS Compliant, and the 184235-1 is ROHS3 Compliant. Both meet current regulatory requirements for hazardous substance restrictions. Moisture Sensitivity Level (MSL) ratings are identical at Level 1 (Unlimited) for both parts.

Q: What is the availability status difference between these two parts?

A: The 9-160479-2 carries an Obsolete product status, indicating discontinued manufacturing and limited long-term availability. The 184235-1 is Active, ensuring ongoing production, supply chain support, and availability for current and future applications.

Q: Are the contact materials and finishes identical?

A: Yes. Both connectors feature brass contact material with tin finish, ensuring equivalent electrical conductivity, corrosion resistance, and contact reliability in crimp termination applications.

Q: What wire gauge range do these connectors support?

A: Both the 9-160479-2 and 184235-1 are rated for 14-16 AWG wire applications. This range ensures proper crimp force, contact pressure, and electrical performance for medium-gauge wire connections.
