914CE3-Q1 Equivalent & Substitute Parts Reference

Part Overview

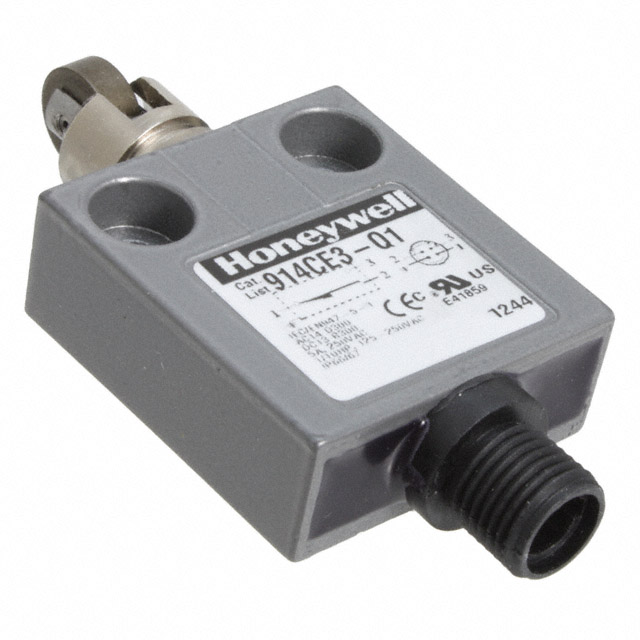

The Honeywell 914CE3-Q1 is a snap action SPDT switch with chassis mount configuration, rated for 3A at 125V AC. This component features a cross roller plunger actuator and IP66 ingress protection, designed for applications requiring reliable switching with momentary operation. The 914CE3-Q1 is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and system maintenance.

Substiute Parts

914CE3-Q1

Honeywell Sensing and Productivity SolutionsIn Stock: 1092914CE3-Q1 Datasheet

Current PartRFQ

D4CC-1003

Omron Automation and SafetyIn Stock: 886D4CC-1003 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 914CE3-Q1 is based on the following critical electrical and mechanical parameters:

Primary Compatibility Criteria:

• Circuit configuration: SPDT (Single Pole Double Throw)
• Switch function: On-Mom (Momentary operation)
• Actuator type: Cross Roller Plunger
• Mounting type: Chassis Mount
• Termination style: Connector
• Mechanical life: 10,000,000 cycles minimum

Voltage and Current Considerations: The 914CE3-Q1 operates at 125V AC with a 3A current rating. Substitute parts must maintain compatibility with these electrical specifications or operate within the same voltage class. Current rating differences are permissible when the substitute part meets or exceeds the original specification.

Environmental and Compliance Parameters: All substitute parts must maintain RoHS compliance and equivalent ingress protection ratings to ensure suitability for the same environmental conditions.

Parameter Comparison

Engineering Selection Recommendations

914CE3-Q1 Obsolescence Status: The 914CE3-Q1 is classified as obsolete. The Omron D4CC-1003 is an active product with current manufacturing support and availability.

Electrical Compatibility: Both parts operate at 125V AC with SPDT momentary function. The D4CC-1003 has a 1A current rating compared to the 914CE3-Q1's 3A rating. Applications requiring the full 3A capacity of the original part must evaluate whether the 1A substitute meets load requirements.

Mechanical and Environmental Alignment: Both parts share identical actuator type (cross roller plunger), mounting configuration (chassis mount), operating force (1200gf), and mechanical life (10,000,000 cycles). The D4CC-1003 provides enhanced ingress protection at IP67 versus the original IP66 rating.

Compliance and Certification: Both parts maintain RoHS compliance and MSL Level 1 rating, ensuring compatibility with standard manufacturing and storage protocols.

Temperature Operating Range: The 914CE3-Q1 operates from 0°C to 105°C, while the D4CC-1003 operates from -10°C to 70°C. Applications requiring operation above 70°C are not suitable for the D4CC-1003 substitute.

Frequently Asked Questions (FAQ)

Q: Can the D4CC-1003 directly replace the 914CE3-Q1 in all applications?

A: Direct replacement depends on current requirements. The D4CC-1003 is rated for 1A AC, while the 914CE3-Q1 is rated for 3A AC. If the application draws more than 1A, the D4CC-1003 is not suitable. Both parts share identical SPDT momentary function, cross roller plunger actuator, and mechanical specifications.

Q: What are the key differences between these two parts?

A: The primary differences are current rating (3A versus 1A), operating temperature range (0°C–105°C versus -10°C–70°C), ingress protection (IP66 versus IP67), and product status (obsolete versus active). Mechanical and electrical function parameters are identical.

Q: Is the D4CC-1003 suitable for high-temperature applications?

A: No. The D4CC-1003 has a maximum operating temperature of 70°C. Applications requiring operation above this temperature require alternative solutions, as the 914CE3-Q1 operates up to 105°C.

Q: Are both parts RoHS compliant?

A: Yes. Both the 914CE3-Q1 and D4CC-1003 are RoHS compliant with MSL Level 1 rating.

Q: What is the significance of the IP67 rating on the D4CC-1003 compared to IP66 on the 914CE3-Q1?

A: IP67 provides waterproof protection (temporary immersion), while IP66 provides water-resistant protection (high-pressure jets). The D4CC-1003 offers enhanced environmental protection in wet conditions.

Q: How do the mechanical specifications compare?

A: Operating force (1200gf), release force (450gf), operating position (28.5mm), pretravel (1.8mm), and overtravel (3.0mm) are identical. Both parts support 10,000,000 mechanical cycles.

Q: What packaging is available for the D4CC-1003?

A: The D4CC-1003 is available in bulk packaging with 815 pieces in current stock.
