Honeywell 914CE2-KQ Equivalent & Substitute Parts

Part Overview

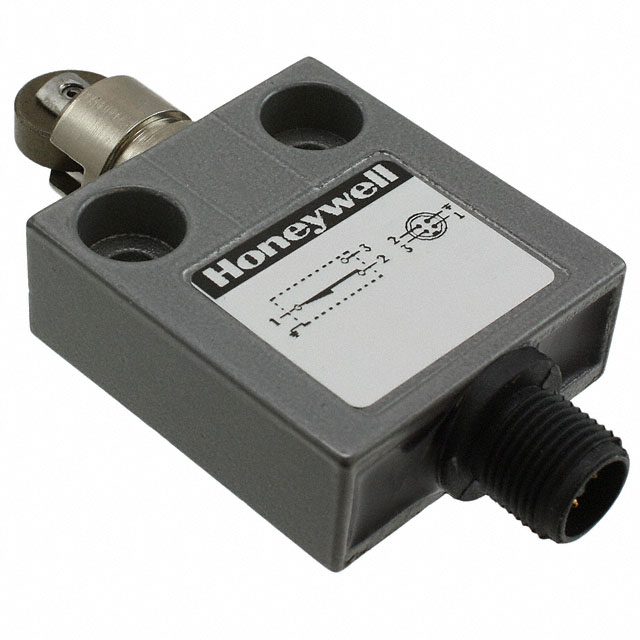

The Honeywell 914CE2-KQ is a snap action SPDT switch with chassis mount configuration, rated for 3A at 125V AC. This component features a roller plunger actuator and IP66 ingress protection, suitable for industrial control applications requiring dust-tight and water-resistant operation. The 914CE2-KQ is classified as obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure supply chain availability for applications currently utilizing this component.

Substiute Parts

914CE2-KQ

Honeywell Sensing and Productivity SolutionsIn Stock: 868914CE2-KQ Datasheet

Current PartRFQ

914CE2-Q

Honeywell Sensing and Productivity SolutionsIn Stock: 895914CE2-Q Datasheet

DirectRFQ

914CE31-AQ

Honeywell Sensing and Productivity SolutionsIn Stock: 1147914CE31-AQ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 914CE2-KQ is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Circuit configuration: SPDT
• Switch function: On-Momentary
• Current rating: 3A AC
• Voltage rating: 125V AC
• Actuator type: Roller Plunger
• Mounting type: Chassis Mount
• Termination style: Connector
• Ingress protection: IP66
• Operating temperature range: 0°C to 105°C
• Mechanical life: 10,000,000 Cycles
• RoHS compliance: Yes

Variable Parameters Allowing Substitution:

• Operating force (gf)
• Release force (gf)
• Operating position (inches/mm)
• Pretravel (inches/mm)
• Differential travel (inches/mm)
• Overtravel (inches/mm)
• Product status (Active substitutes acceptable for obsolete main part)
• Packaging configuration

The identified substitute parts 914CE2-Q and 914CE31-AQ maintain all mandatory electrical and mechanical specifications while differing in mechanical actuation characteristics and product status.

Parameter Comparison

Engineering Selection Recommendations

914CE2-Q (Direct Substitute): The 914CE2-Q is classified as an active product and represents the direct substitute for the obsolete 914CE2-KQ. Both parts share identical electrical ratings, mechanical life specifications, and operating parameters. The primary difference is the reduced operating force (1200gf versus 2300gf), which indicates a lighter actuation requirement while maintaining the same operating position of 1.122" (28.5mm). This part is available in bulk packaging with 803 units in stock. RoHS compliance and MSL 1 rating are maintained.

914CE31-AQ (Similar Substitute): The 914CE31-AQ is an active product within the same 914CE series that maintains all critical electrical and mechanical specifications. This part differs in operating force (1785gf) and operating position (1.354" or 34.4mm), indicating a different mechanical actuation profile. The increased operating position may require mechanical design consideration in applications with space constraints. This part is available in bulk packaging with 1049 units in stock and maintains RoHS compliance and MSL 1 rating.

Both substitute parts satisfy the mandatory electrical and environmental requirements of the obsolete 914CE2-KQ. Selection between 914CE2-Q and 914CE31-AQ depends on mechanical actuation force and travel distance requirements specific to the application.

Frequently Asked Questions (FAQ)

Q: Can the 914CE2-Q directly replace the 914CE2-KQ without design modification?

A: The 914CE2-Q maintains identical electrical ratings (3A, 125V AC), circuit configuration (SPDT), and operating position (1.122" / 28.5mm). The reduced operating force (1200gf versus 2300gf) represents a lighter actuation requirement. Direct mechanical and electrical compatibility is established for applications where the lower actuation force is acceptable.

Q: What is the primary difference between 914CE2-Q and 914CE31-AQ?

A: Both parts maintain identical electrical specifications and mechanical life. The 914CE2-Q operates at 1.122" (28.5mm) with 1200gf force, while the 914CE31-AQ operates at 1.354" (34.4mm) with 1785gf force. Selection depends on the specific mechanical actuation requirements of the application.

Q: Are both substitute parts RoHS compliant?

A: Yes. Both 914CE2-Q and 914CE31-AQ are RoHS compliant and carry MSL 1 (Unlimited) moisture sensitivity level rating, matching the compliance profile of the 914CE2-KQ.

Q: What is the difference in packaging between the main part and substitutes?

A: The 914CE2-KQ is supplied with connector packaging. Both substitute parts (914CE2-Q and 914CE31-AQ) are supplied in bulk packaging. Procurement and handling procedures may differ accordingly.

Q: Do the substitute parts maintain the same ingress protection rating?

A: Yes. Both 914CE2-Q and 914CE31-AQ maintain IP66 ingress protection (dust tight, water resistant), identical to the 914CE2-KQ specification.

Q: What is the mechanical life expectancy of the substitute parts?

A: Both substitute parts are rated for 10,000,000 mechanical cycles, matching the 914CE2-KQ specification.

Q: Are there inventory considerations for selecting between the two substitutes?

A: The 914CE2-Q has 803 units in stock, while the 914CE31-AQ has 1049 units in stock. Both represent active products with established supply availability.
