Ohmite 90J10K Equivalent & Substitute Parts

Part Overview

The Ohmite 90J10K is a 10 kOhms ±5% 11W through-hole wirewound resistor with axial leads, featuring flame retardant coating and safety construction. This component is designed for high-power applications requiring reliable thermal dissipation and electrical stability. The part is currently active in production with 1,057 units in stock. Substitute parts are identified to address RoHS compliance requirements and inventory availability while maintaining identical electrical and mechanical specifications.

Substiute Parts

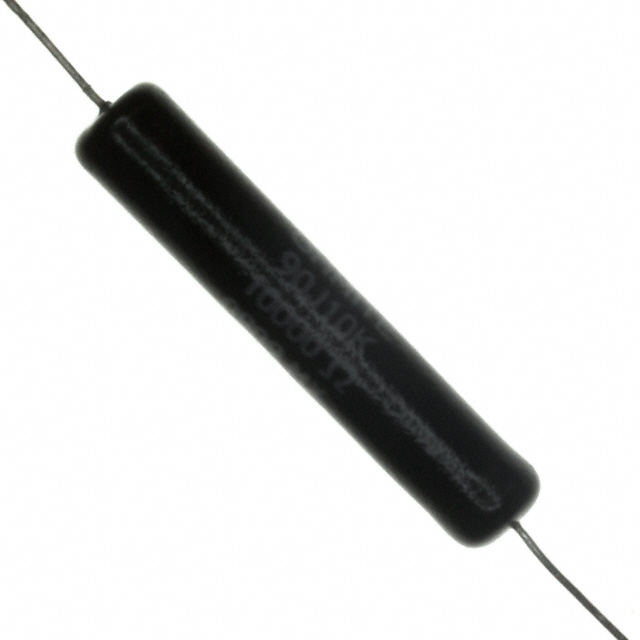

90J10K

OhmiteIn Stock: 109490J10K Datasheet

Current PartRFQ

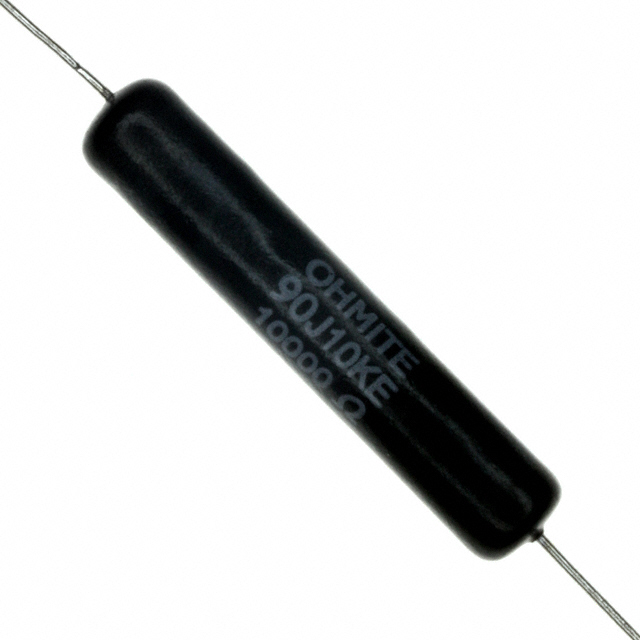

90J10KE

OhmiteIn Stock: 95390J10KE Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Ohmite 90J10KE is identified as a direct substitute for the 90J10K based on matching electrical and mechanical parameters. Substitution is valid when the following criteria are met:

• Resistance value: 10 kOhms (identical)
• Tolerance: ±5% (identical)
• Power rating: 11W (identical)
• Composition: Wirewound (identical)
• Package / Case: Axial (identical)
• Physical dimensions: 0.343" Dia x 1.811" L (identical)
• Temperature coefficient: ±30ppm/°C (identical)
• Features: Flame retardant coating and safety construction (identical)
• Number of terminations: 2 (identical)

The primary distinction between these parts is RoHS compliance status. The 90J10KE achieves ROHS3 compliance, whereas the 90J10K is RoHS non-compliant. Both parts maintain identical thermal, electrical, and mechanical performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Selection between the 90J10K and 90J10KE should be based on regulatory and compliance requirements:

• 90J10K: Select when RoHS compliance is not a design constraint and cost optimization is prioritized. Both parts are active in production with adequate inventory levels.

• 90J10KE: Select when ROHS3 compliance is mandatory for the application or end-market. This variant meets current environmental and regulatory standards while maintaining identical electrical and thermal performance.

Both parts are functionally interchangeable in circuit applications where the specified electrical parameters (10 kOhms, ±5%, 11W) and physical form factor (axial, 0.343" Dia x 1.811" L) are required. No performance degradation or functional differences exist between these variants.

Frequently Asked Questions (FAQ)

Q: Are the 90J10K and 90J10KE electrically identical?

A: Yes. Both parts have identical resistance (10 kOhms), tolerance (±5%), power rating (11W), temperature coefficient (±30ppm/°C), and composition (wirewound). Electrical performance is equivalent.

Q: Can I use the 90J10KE as a direct replacement for the 90J10K?

A: Yes. The 90J10KE is a direct substitute. Physical dimensions, package type (axial), and all electrical specifications are identical. The primary difference is RoHS compliance status.

Q: What is the difference between RoHS non-compliant and ROHS3 compliant?

A: The 90J10K is RoHS non-compliant, while the 90J10KE meets ROHS3 compliance standards. ROHS3 compliance indicates the part meets current environmental regulations restricting hazardous substances. Selection depends on regulatory requirements for your application.

Q: Do these parts have the same physical dimensions?

A: Yes. Both the 90J10K and 90J10KE have identical dimensions of 0.343" Dia x 1.811" L (8.70mm x 46.00mm) and use the same axial package type. They are mechanically interchangeable.

Q: What is the temperature coefficient specification?

A: Both parts have a temperature coefficient of ±30ppm/°C, indicating stable resistance performance across the operating temperature range.

Q: Are both parts currently in production?

A: Yes. Both the 90J10K and 90J10KE are active products with current inventory availability (1,057 and 899 units respectively).
