Part Overview

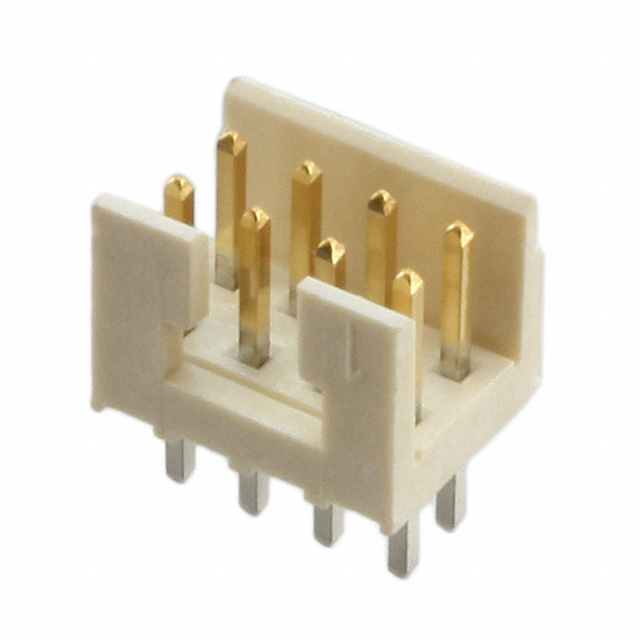

The Amphenol ICC 90309-008 is a vertical board-to-board rectangular connector header from the Minitek® series, featuring 8 positions arranged in 2 rows with 0.079" (2.00mm) pitch. This through-hole solder-terminated connector is designed for applications requiring shrouded male pin headers with push-pull fastening and gold-plated mating contacts. The 90309-008 is classified as obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for production and field replacement applications.

Substiute Parts

90309-008

Amphenol ICC (FCI)In Stock: 98390309-008 Datasheet

Current PartRFQ

90309-008LF

Amphenol ICC (FCI)In Stock: 873390309-008LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 90309-008 is determined by strict equivalence across the following critical parameters: connector type (header), contact type (male pin), position count (8), row configuration (2 rows), mating pitch (0.079"/2.00mm), row spacing (0.079"/2.00mm), mounting method (through hole), termination type (solder), shrouding configuration (shrouded - 2 wall), and fastening mechanism (push-pull). Additional qualifying parameters include current rating (2A AC/DC), voltage rating (200V AC/DC), and material flammability classification (UL94 V-0).

The 90309-008LF qualifies as a direct substitute based on complete alignment with all specified electrical and mechanical parameters. The primary distinction between these parts is product status and packaging configuration, with the 90309-008LF classified as active product status and supplied in bulk packaging, compared to the obsolete 90309-008.

Parameter Comparison

Engineering Selection Recommendations

The 90309-008LF is the direct substitute for the obsolete 90309-008. Both parts share identical electrical and mechanical specifications, including connector architecture, contact configuration, pitch dimensions, current and voltage ratings, and material certifications. The 90309-008LF carries active product status and is supplied in bulk packaging, ensuring ongoing availability and supply chain continuity.

The 90309-008LF provides additional compliance documentation through RoHS Compliant and REACH Affected designations, supporting regulatory requirements for modern manufacturing and distribution environments. Both parts maintain UL94 V-0 material flammability classification and identical moisture sensitivity levels.

Frequently Asked Questions (FAQ)

Q: Can the 90309-008LF directly replace the 90309-008 in existing designs?

A: Yes. The 90309-008LF is electrically and mechanically equivalent to the 90309-008. All critical parameters including connector type, position count, pitch, row spacing, mounting method, termination type, shrouding, fastening mechanism, current rating, voltage rating, and material certifications are identical.

Q: What is the primary difference between these two part numbers?

A: The 90309-008 is classified as obsolete product status, while the 90309-008LF is active. The 90309-008LF is supplied in bulk packaging and includes RoHS Compliant and REACH Affected compliance designations.

Q: Are there any compatibility concerns when substituting the 90309-008LF for the 90309-008?

A: No compatibility concerns exist. Both parts are from the same Minitek® series, share identical mechanical dimensions, contact configurations, and electrical ratings. PCB footprints and mating connector requirements remain unchanged.

Q: What packaging options are available for these parts?

A: The 90309-008 was supplied in standard packaging (not specified in available data). The 90309-008LF is supplied in bulk packaging, which is standard for active production components.

Q: Do these connectors require specific mating connectors?

A: Both the 90309-008 and 90309-008LF are header connectors designed for board-to-board applications. They mate with receptacle connectors compatible with the Minitek® 2.00mm pitch series, featuring 8-position, 2-row configuration with push-pull fastening.

Q: Are there environmental or compliance differences between these parts?

A: The 90309-008LF includes RoHS Compliant and REACH Affected designations, indicating compliance with current environmental and chemical restriction regulations. Both parts maintain identical UL94 V-0 material flammability ratings and moisture sensitivity levels.
