8E2021C-Z Toggle Switch DPDT Equivalent & Substitute Parts

Part Overview

The 8E2021C-Z is a panel-mount toggle switch manufactured by Nidec Components Corporation, configured as a Double Pole Double Throw (DPDT) switch with On-Off-On functionality. This component is rated for 25mA DC at 20V with a locking lever actuator and sealed design for flux protection. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity for existing applications and new designs.

Substiute Parts

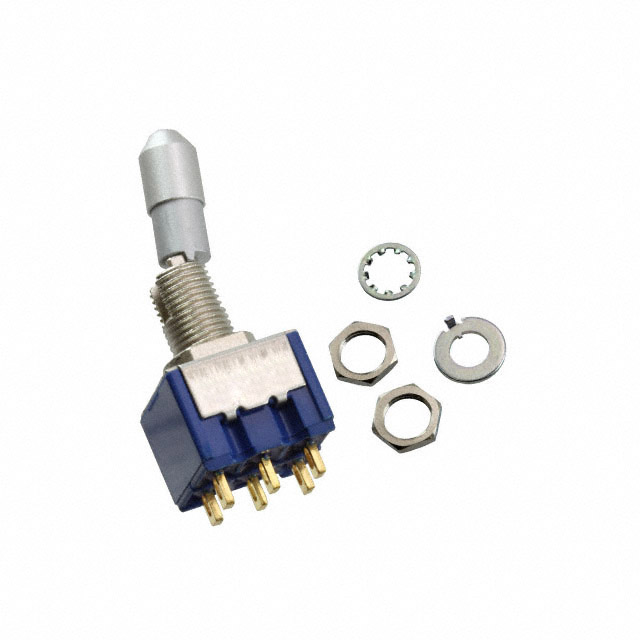

8E2021C-Z

Nidec Components CorporationIn Stock: 11788E2021C-Z Datasheet

Current PartRFQ

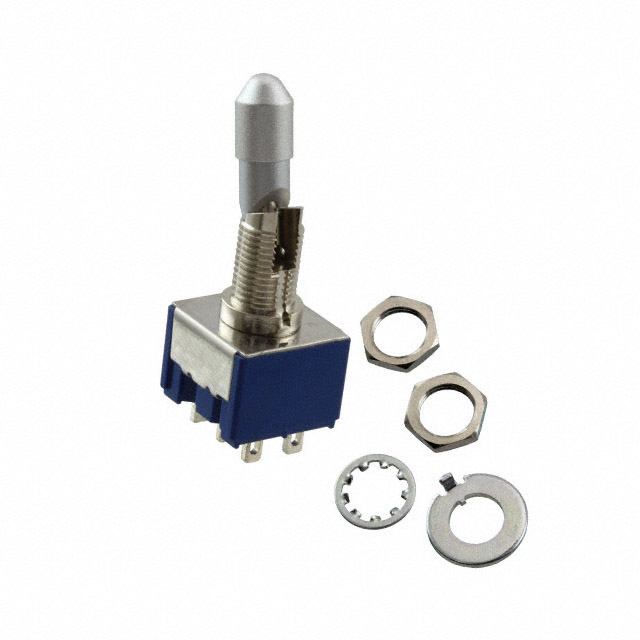

8E2021-Z

Nidec Components CorporationIn Stock: 8768E2021-Z Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 8E2021C-Z is determined by strict alignment of the following critical parameters:

Circuit configuration must remain DPDT with On-Off-On switching function to maintain electrical topology compatibility. Mechanical compatibility requires identical panel cutout dimensions (6.50mm circular), bushing thread specification (1/4-40), actuator type (locking lever), and actuator length (16.50mm) to ensure direct panel mount replacement without mechanical modification.

Electrical compatibility is established through voltage and current rating parameters. The 8E2021C-Z operates at 25mA DC and 20V DC. Substitute parts must support these electrical specifications or higher ratings to ensure safe operation in the original circuit without derating.

Termination style must remain solder lug to maintain compatibility with existing PCB or wiring harness connections. Environmental specifications including operating temperature range and sealed design with flux protection must be maintained or exceeded.

The 8E2021-Z qualifies as a direct substitute based on these criteria: identical DPDT circuit, On-Off-On function, matching mechanical dimensions and mounting specifications, compatible termination style, and superior electrical ratings (6A AC / 4A DC at 125V AC / 30V DC) that exceed the original 25mA / 20V specification. Both parts share the same base product number (8E2021), series designation (8E), and sealed flux-protected design.

Parameter Comparison

Engineering Selection Recommendations

The 8E2021-Z is the qualified substitute for the obsolete 8E2021C-Z. Both components maintain identical mechanical and electrical topology, with the 8E2021-Z offering enhanced electrical performance specifications and active product status. The substitute part provides superior voltage and current ratings (30V DC / 125V AC versus 20V DC), extended lower operating temperature limit (-30°C versus -20°C), and continued manufacturing availability through Nidec Components Corporation.

Selection of the 8E2021-Z eliminates obsolescence risk while maintaining full compatibility with existing mechanical mounting interfaces and electrical circuit requirements. Both parts carry ROHS3 compliance certification, ensuring regulatory alignment for current and future applications.

Frequently Asked Questions (FAQ)

Q: Can the 8E2021-Z directly replace the 8E2021C-Z without mechanical modification?

A: Yes. Both parts share identical panel cutout dimensions (6.50mm circular), bushing thread specification (1/4-40), actuator type (locking lever), and actuator length (16.50mm). Direct panel mount replacement is possible without modification to the mounting interface or mechanical assembly.

Q: Are the electrical ratings of the 8E2021-Z compatible with circuits designed for the 8E2021C-Z?

A: Yes. The 8E2021-Z provides higher electrical ratings (6A AC / 4A DC at 125V AC / 30V DC) compared to the original specification (25mA DC at 20V DC). Circuits operating within the original electrical parameters will function safely with the substitute part.

Q: What is the difference in packaging between these parts?

A: The 8E2021C-Z is supplied in standard packaging, while the 8E2021-Z is supplied in bulk packaging. Both parts are identical in form, fit, and function; packaging difference reflects inventory and distribution method only.

Q: Why is the 8E2021C-Z classified as obsolete?

A: Product obsolescence is determined by manufacturer discontinuation. The 8E2021-Z remains in active production status and serves as the current equivalent for new designs and replacement applications.

Q: Are both parts RoHS compliant?

A: Yes. Both the 8E2021C-Z and 8E2021-Z carry ROHS3 compliance certification, meeting current regulatory requirements for electronic component manufacturing and use.

Q: What is the operating temperature difference between these parts?

A: The 8E2021-Z extends the lower operating temperature limit to -30°C compared to -20°C for the 8E2021C-Z. Both parts maintain the same upper temperature limit of 85°C. This extended range provides additional thermal margin for applications in cold environments.
