Amphenol ICC 89947-330LF Rectangular Connector - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89947-330LF is a 30-position rectangular receptacle connector featuring IDC (Insulation Displacement Contact) termination for ribbon cable applications. This connector is part of the Minitek® 2.00mm series and utilizes gold-plated female socket contacts rated for 28 AWG wire. The part is currently classified as obsolete, making identification of active equivalent components essential for ongoing design support and procurement.

Substiute Parts

89947-330LF

Amphenol ICC (FCI)In Stock: 101089947-330LF Datasheet

Current PartRFQ

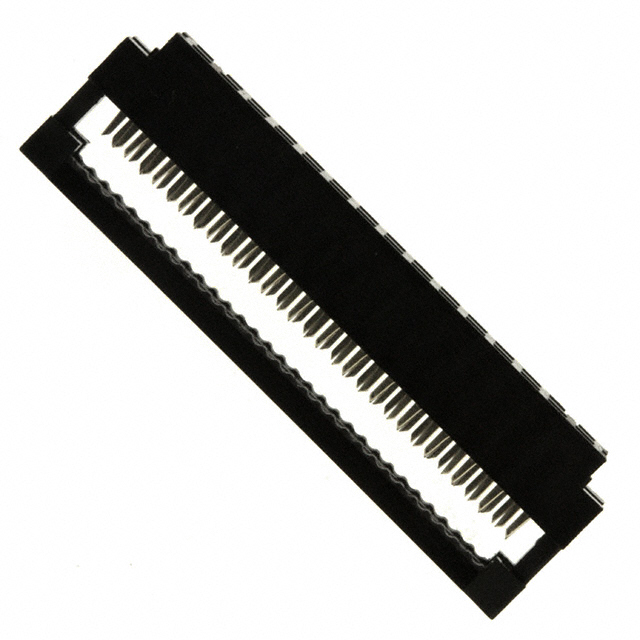

89947-730LF

Amphenol ICC (FCI)In Stock: 5376089947-730LF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 89947-330LF is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Position count (30)
• Pitch and row spacing (0.079" / 2.00mm)
• Cable termination method (IDC)
• Wire gauge compatibility (28 AWG)
• Contact finish specification (Gold, 30.0µin thickness)
• Mechanical features (Feed Through, Polarizing Key)

The substitute part 89947-730LF maintains full electrical and mechanical compatibility with the 89947-330LF across all specified parameters. The primary distinction between these parts is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The 89947-730LF is the direct active equivalent for the obsolete 89947-330LF. Both parts are manufactured by Amphenol ICC and share identical electrical and mechanical specifications across all critical connector parameters.

The 89947-730LF offers the following advantages for new designs and ongoing procurement:

• Active product status ensures continued availability and manufacturing support
• RoHS compliance certification for regulatory alignment
• Tube packaging configuration for standard component handling
• Identical connector geometry, contact configuration, and termination method

For applications currently using the 89947-330LF, the 89947-730LF provides direct functional substitution without design modification or re-qualification requirements.

Frequently Asked Questions (FAQ)

Q: Can the 89947-730LF be used as a direct replacement for the 89947-330LF?

A: Yes. Both parts are electrically and mechanically identical across all specified parameters, including position count, pitch, contact type, wire gauge, and termination method. The 89947-730LF is the active equivalent manufactured by Amphenol ICC.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. The 89947-330LF is obsolete, while the 89947-730LF is active. The 89947-730LF is supplied in tube packaging and carries RoHS compliance certification.

Q: Are there any compatibility concerns when substituting the 89947-730LF for the 89947-330LF?

A: No compatibility concerns exist. Both connectors maintain identical specifications for connector type, contact configuration, pitch, row spacing, IDC termination, wire gauge, contact finish, and mechanical features.

Q: What is the packaging difference between these parts?

A: The 89947-330LF packaging is not specified in available documentation. The 89947-730LF is supplied in tube packaging, which is the standard configuration for this connector series.

Q: Does the 89947-730LF meet RoHS requirements?

A: Yes, the 89947-730LF is RoHS compliant. The 89947-330LF RoHS status is not specified in available documentation.
