Amphenol ICC 89096-112 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89096-112 is a 10-position receptacle connector with female blade sockets, designed for board edge mounting applications requiring power distribution. This connector features press-fit termination, gold-plated contacts, and operates across a temperature range of -55°C to 105°C with a 1000V voltage rating.

The 89096-112 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance where this connector is specified.

Substiute Parts

89096-112

Amphenol ICC (FCI)In Stock: 116389096-112 Datasheet

Current PartRFQ

89096-112LF

Amphenol ICC (FCI)In Stock: 139789096-112LF Datasheet

DirectRFQ

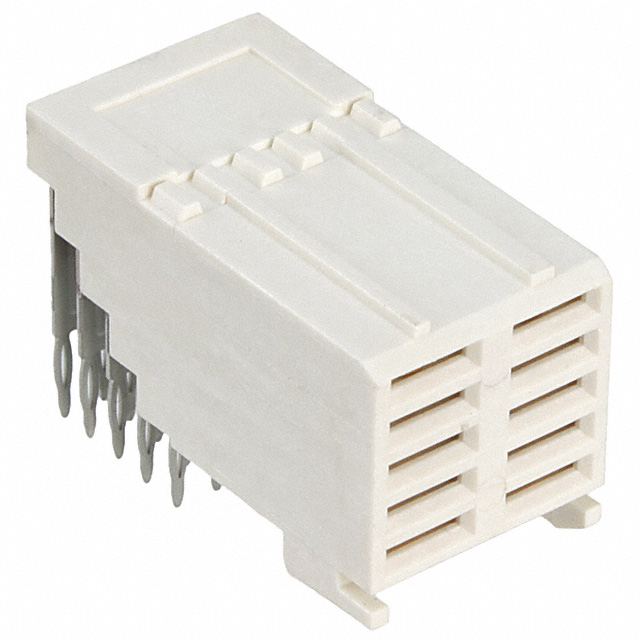

5536649-1

TE Connectivity AMP ConnectorsIn Stock: 15125536649-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 89096-112 are identified based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

• Connector type: Receptacle with female blade sockets
• Number of positions: 10
• Mounting configuration: Board edge, through hole, right angle
• Termination method: Press-fit
• Contact finish: Gold plating
• Flammability rating: UL94 V-0

Substitutes identified:

Direct Substitute (Amphenol ICC 89096-112LF): Maintains identical electrical and mechanical specifications with enhanced current rating (3A vs. 1A) and active product status with RoHS compliance.

Cross-Manufacturer Substitute (TE Connectivity 5536649-1): Shares core connector architecture (receptacle, female blade sockets, 10 positions, board edge mounting, press-fit termination) but operates under different pitch (0.236" vs. 0.157") and voltage rating (30V vs. 1000V) specifications, requiring design verification for application compatibility.

Parameter Comparison

Engineering Selection Recommendations

For direct replacement with active product status and regulatory compliance:

The 89096-112LF is the primary substitute for the obsolete 89096-112. Both parts are manufactured by Amphenol ICC within the Metral® series and maintain identical pitch (0.157"), mounting configuration, and voltage rating (1000V). The 89096-112LF provides enhanced current capacity (3A vs. 1A) and carries RoHS compliance certification, making it suitable for new designs and legacy system updates where regulatory requirements apply.

For cross-manufacturer substitution:

The TE Connectivity 5536649-1 shares the core receptacle architecture and 10-position configuration but operates under different electrical parameters. The pitch specification (0.236" vs. 0.157") and voltage rating (30V vs. 1000V) represent significant deviations from the original 89096-112. This part is classified as a manufacturer-recommended alternative only where application requirements align with its reduced voltage rating and larger pitch spacing.

Frequently Asked Questions (FAQ)

Q: Can the 89096-112LF be used as a direct replacement for the 89096-112?

A: Yes. Both parts maintain identical pitch (0.157"), mounting type (board edge, through hole, right angle), termination method (press-fit), and voltage rating (1000V). The 89096-112LF is an active product with RoHS compliance and higher current capacity (3A vs. 1A).

Q: What are the key differences between the 89096-112 and the TE Connectivity 5536649-1?

A: The 5536649-1 operates at a different pitch (0.236" vs. 0.157") and lower voltage rating (30V vs. 1000V). These parameters require verification against application requirements before substitution.

Q: Why is the 89096-112 classified as obsolete?

A: Product obsolescence is determined by manufacturer discontinuation. The 89096-112LF serves as the active equivalent within the same product family.

Q: Are there packaging differences between these parts?

A: The 89096-112 is supplied in bulk packaging. Both the 89096-112LF and 5536649-1 are supplied in tube packaging, which may affect procurement and handling procedures.

Q: What compliance certifications apply to each part?

A: The 89096-112 is RoHS non-compliant. The 89096-112LF is RoHS compliant. The 5536649-1 is ROHS3 compliant. All three parts carry UL94 V-0 flammability certification.
