Amphenol ICC 89096-102 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89096-102 is a 10-position receptacle connector with female blade sockets, designed for board edge mounting applications in backplane systems. This connector features press-fit termination, gold-plated contacts, and operates across a temperature range of -55°C to 105°C with a 1000V voltage rating. The part is classified as obsolete, making identification of suitable substitutes essential for ongoing system support and new design implementations.

Substiute Parts

89096-102

Amphenol ICC (FCI)In Stock: 146389096-102 Datasheet

Current PartRFQ

89096-102LF

Amphenol ICC (FCI)In Stock: 359289096-102LF Datasheet

DirectRFQ

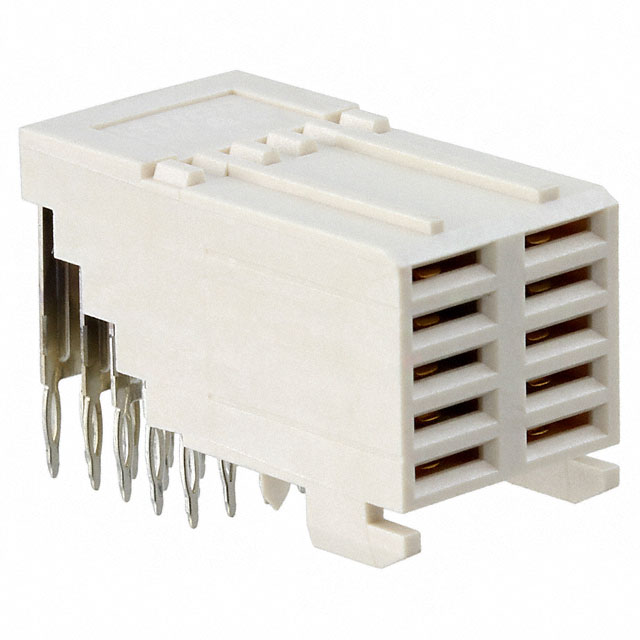

536649-1

TE Connectivity AMP ConnectorsIn Stock: 951536649-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 89096-102 is determined by strict alignment with the following critical parameters: connector type (receptacle with female blade sockets), number of positions (10), pitch (0.157"/4.00mm), mounting configuration (board edge, through hole, right angle), and termination method (press-fit). Additional compatibility factors include contact finish specification, voltage rating, and operating temperature range.

The substitute parts identified fall into two categories:

Direct Series Substitute: 89096-102LF maintains identical mechanical and electrical specifications within the Metral® series, with the primary distinction being active product status and RoHS compliance.

Cross-Series Substitute: 536649-1 from TE Connectivity represents a functionally equivalent alternative from a different connector family (Z-PACK series, Futurebus style), meeting the core mechanical mounting and contact requirements while operating under different electrical parameters.

Parameter Comparison

Engineering Selection Recommendations

89096-102LF (Direct Substitute): This part is the primary equivalent for the obsolete 89096-102. Both connectors share identical mechanical specifications, pitch, mounting configuration, and contact geometry within the Metral® series. The 89096-102LF offers improved current rating (3A versus 1A), active product status, and RoHS compliance. Selection of this substitute eliminates obsolescence risk while maintaining full mechanical and electrical compatibility for applications operating within the specified parameters.

536649-1 (Cross-Series Alternative): This TE Connectivity connector provides mechanical compatibility through identical mounting type, board edge configuration, and press-fit termination. However, the 30V voltage rating represents a significant electrical limitation compared to the 1000V rating of the primary part. This substitute is suitable only for applications where voltage requirements do not exceed 30V. The extended operating temperature range (-55°C to 125°C) offers thermal performance advantage. Cross-series substitution requires physical validation of connector mating compatibility and circuit board layout accommodation.

Frequently Asked Questions (FAQ)

Q: Can 89096-102LF be used as a direct replacement for 89096-102?

A: Yes. The 89096-102LF maintains identical connector type, position count, pitch (0.157"/4.00mm), mounting configuration (board edge, through hole, right angle), and press-fit termination. Both feature gold-plated contacts and UL94 V-0 flammability rating. The primary advantages of 89096-102LF are active product status, RoHS compliance, and higher current rating (3A).

Q: What are the limitations of using 536649-1 as a substitute?

A: The 536649-1 operates at a maximum voltage of 30V, compared to the 1000V rating of the 89096-102. This connector is suitable only for low-voltage applications. Additionally, the contact finish specification differs (flash gold versus 30.0µin thickness). Physical connector mating compatibility must be confirmed before implementation.

Q: Are there packaging differences between the main part and substitutes?

A: The 89096-102LF is supplied in tube packaging, while the 89096-102 packaging specification is not provided. The 536649-1 packaging is also not specified. Packaging differences do not affect electrical or mechanical compatibility but may impact procurement and handling procedures.

Q: What compliance certifications apply to each part?

A: The 89096-102 is RoHS non-compliant and REACH unaffected. The 89096-102LF is RoHS compliant and REACH affected. The 536649-1 is RoHS non-compliant. All three parts carry UL94 V-0 flammability certification and share the same ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Q: Which substitute should be selected for new designs?

A: For new designs requiring the electrical specifications of the original 89096-102 (1000V rating, -55°C to 105°C operation), the 89096-102LF is the appropriate selection. For applications with voltage requirements not exceeding 30V, the 536649-1 offers an alternative with extended temperature capability.
