Amphenol ICC 89007-116 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89007-116 is a 60-position backplane connector header with male pins designed for through-hole PCB mounting. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations. The connector features press-fit termination, gold-plated contacts, and operates across a temperature range of -55°C to 125°C. Identifying compatible alternatives ensures design continuity and supply chain reliability.

Key Parameters

Parameter	Value
Manufacturer Part Number	89007-116
Manufacturer	Amphenol ICC (FCI)
Category	Backplane Connectors
Series	Metral®
Number of Positions	60
Pitch	0.079" (2.00mm)
Number of Rows	5
Connector Type	Header, Male Pins
Mounting Type	Through Hole
Termination	Press-Fit
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Current Rating	1A
Operating Temperature	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Product Status	Obsolete
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 89007-116 is determined by the following critical parameters: 60-position count, 0.079" (2.00mm) pitch, 5-row configuration, through-hole mounting, press-fit termination, gold contact finish, 1A current rating, and -55°C to 125°C operating temperature range.

Two substitute categories exist:

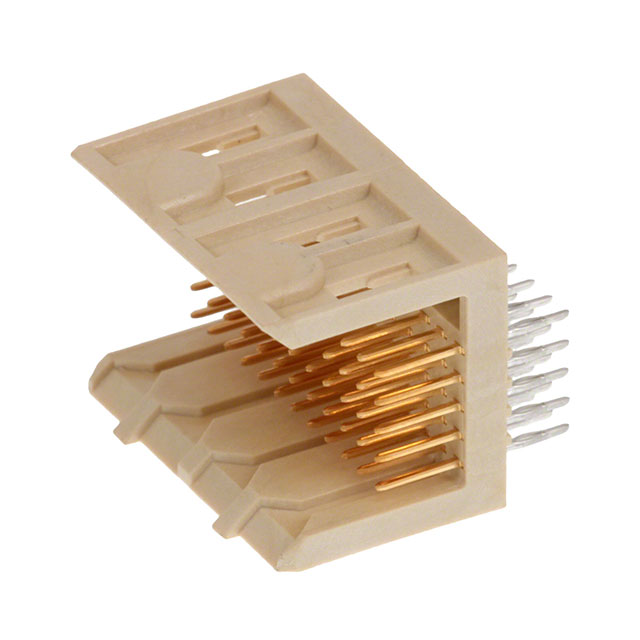

Direct Functional Equivalent: The 89007-116LF maintains identical electrical and mechanical specifications while offering improved compliance status (RoHS Compliant vs. non-compliant) and active product status.

Cross-Manufacturer Alternatives: The TE Connectivity parts 5223002-2 and 5223016-2 share all critical substitution parameters (60 positions, 2.00mm pitch, 5 rows, through-hole, press-fit, gold finish, UL94 V-0 rating, -55°C to 125°C operation). These components operate within the Futurebus connector style classification and carry 30V voltage rating specifications.

Parameter Comparison

Parameter	89007-116 (Main)	89007-116LF	5223002-2	5223016-2
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP	TE Connectivity AMP
Number of Positions	60	60	60	60
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5	5	5	5
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Contact Finish	Gold	Gold	Gold	Gold
Operating Temperature	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant
Voltage Rating	Not specified	Not specified	30V	30V

Engineering Selection Recommendations

For RoHS-compliant applications: The 89007-116LF is the primary substitute, offering identical form factor and electrical characteristics while meeting RoHS compliance requirements. This part maintains Amphenol ICC manufacturing continuity and active product status.

For cross-manufacturer flexibility: The TE Connectivity 5223002-2 and 5223016-2 provide functionally equivalent alternatives with active product status and enhanced compliance certifications (ROHS3 for 5223002-2, RoHS for 5223016-2). Both components specify 30V voltage rating, providing additional margin for applications requiring voltage specification documentation.

For legacy system maintenance: The 89007-116 remains available in inventory (1095 pcs) for direct replacement in non-compliant applications where RoHS exemptions apply or existing designs preclude substitution.

Frequently Asked Questions (FAQ)

Q: Can the 89007-116LF directly replace the 89007-116 in existing designs?

A: Yes. The 89007-116LF maintains identical electrical and mechanical specifications including 60 positions, 2.00mm pitch, 5-row configuration, through-hole mounting, press-fit termination, gold contact finish, 1A current rating, and -55°C to 125°C operating temperature. The primary difference is RoHS compliance status and active product availability.

Q: Are the TE Connectivity parts (5223002-2 and 5223016-2) pin-compatible with the Amphenol 89007-116?

A: Yes. Both TE Connectivity parts share the critical substitution parameters: 60-position count, 0.079" (2.00mm) pitch, 5-row layout, through-hole mounting, press-fit termination, gold plating, UL94 V-0 flammability rating, and -55°C to 125°C operating temperature. The Futurebus connector style designation indicates these are designed for the same application class.

Q: What is the difference between 5223002-2 and 5223016-2?

A: Both parts are functionally equivalent 60-position Futurebus headers from TE Connectivity with identical electrical and mechanical specifications. They differ in base product number (5223002 vs. 5223016) and RoHS certification level (ROHS3 Compliant vs. RoHS Compliant). Selection between them depends on specific compliance documentation requirements.

Q: Does the 89007-116 meet current RoHS requirements?

A: No. The 89007-116 is classified as RoHS non-compliant. For new designs or applications requiring RoHS compliance, use the 89007-116LF or TE Connectivity alternatives (5223002-2 or 5223016-2).

Q: What packaging is available for substitute parts?

A: The 89007-116LF, 5223002-2, and 5223016-2 are supplied in tube packaging, suitable for automated assembly and manual installation processes.

Q: Are there any electrical performance differences between the main part and substitutes?

A: All parts maintain 1A current rating and -55°C to 125°C operating temperature specifications. The TE Connectivity parts specify 30V voltage rating, while the Amphenol parts do not specify voltage rating in the provided data. This does not indicate reduced voltage capability but rather reflects different documentation standards between manufacturers.
