Amphenol ICC 89006-116 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89006-116 is a 30-position PCB header connector with male pins, designed for through-hole mounting in backplane applications. This connector is part of the Metral® series and features press-fit termination with gold-plated contacts rated for 1A continuous current across an operating temperature range of -55°C to 125°C.

The 89006-116 is classified as obsolete. Equivalent and substitute parts are available to maintain design continuity and ensure component availability for new production and field replacements.

Substiute Parts

89006-116

Amphenol ICC (FCI)In Stock: 176789006-116 Datasheet

Current PartRFQ

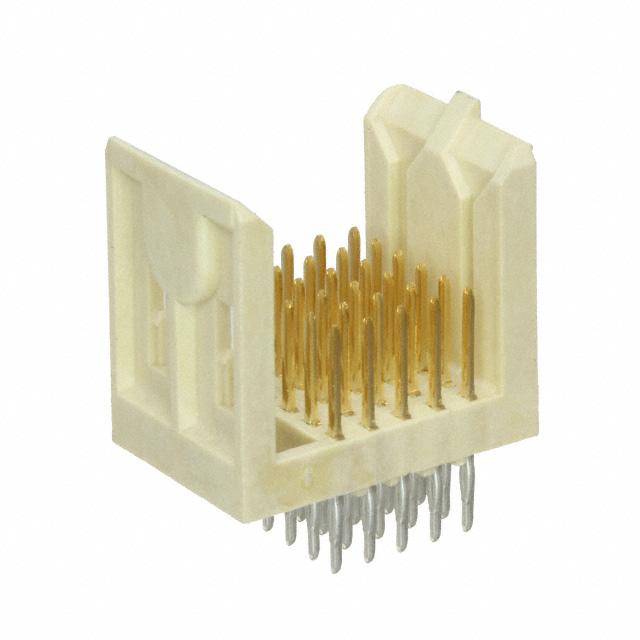

89006-116LF

Amphenol ICC (FCI)In Stock: 232989006-116LF Datasheet

DirectRFQ

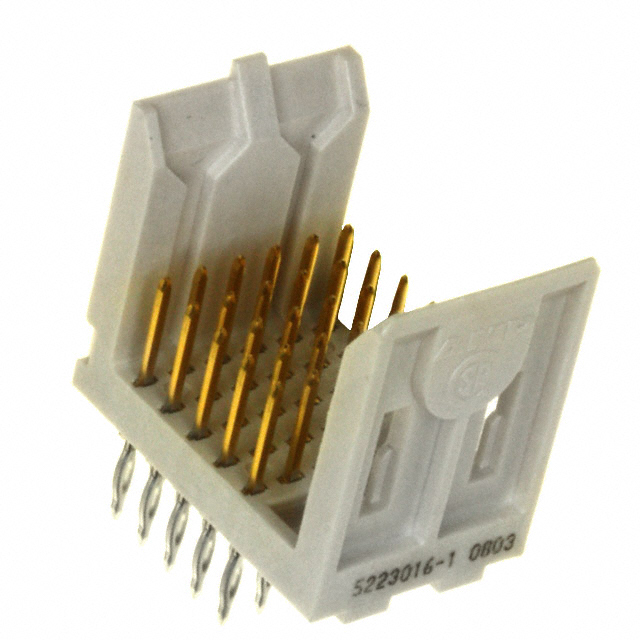

5223016-1

TE Connectivity AMP ConnectorsIn Stock: 24595223016-1 Datasheet

MFR RecommendedRFQ

MP2-H030-51P1-S-KR

3MIn Stock: 821MP2-H030-51P1-S-KR Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 89006-116 is determined by the following critical parameters:

• 30-position connector configuration
• 0.079" (2.00mm) pitch spacing
• 5-row layout
• Male pin header type
• Through-hole press-fit termination
• Gold contact finish
• UL94 V-0 flammability rating
• Operating temperature range of -55°C to 125°C
• Moisture sensitivity level 1

Substitute parts must maintain these core electrical and mechanical specifications to ensure PCB compatibility and functional equivalence. Variations in color, connector style designation (Futurebus vs. Futurebus+®), current rating, and compliance status are permitted when the above parameters are met.

Parameter Comparison

Engineering Selection Recommendations

89006-116LF is the direct equivalent from Amphenol ICC (FCI). This part maintains identical electrical and mechanical specifications to the 89006-116 while offering active product status and RoHS compliance. The 89006-116LF is the preferred substitute for new designs and production requiring regulatory compliance.

5223016-1 from TE Connectivity AMP Connectors is a functionally equivalent alternative. This part meets all core substitution criteria and carries ROHS3 compliance. The Futurebus connector style designation indicates compatibility with the same PCB footprint and mating interface. Current rating is not specified for this part.

MP2-H030-51P1-S-KR from 3M is a cross-manufacturer substitute from the MetPak™ MP2 series. This part exceeds the current rating specification (1.5A versus 1A) and includes integrated board guide and mating guide features. RoHS compliance is confirmed. The Futurebus+® connector style maintains mechanical and electrical compatibility with the specified pitch and position configuration.

All three substitute parts are active products with confirmed inventory availability and meet the mandatory substitution parameters.

Frequently Asked Questions (FAQ)

Q: Can the 89006-116LF be used as a direct replacement for the obsolete 89006-116?

A: Yes. The 89006-116LF maintains identical electrical and mechanical specifications including 30 positions, 2.00mm pitch, 5-row configuration, gold contact finish, 1A current rating, and -55°C to 125°C operating temperature range. The primary differences are product status (active versus obsolete) and RoHS compliance (compliant versus non-compliant).

Q: What are the key differences between the Amphenol ICC 89006-116LF and the 3M MP2-H030-51P1-S-KR?

A: Both parts share identical core specifications: 30 positions, 2.00mm pitch, 5-row layout, through-hole press-fit termination, gold contacts, and UL94 V-0 flammability rating. The MP2-H030-51P1-S-KR offers a higher current rating (1.5A versus 1A) and includes integrated board guide and mating guide features. Color differs (beige versus natural/white). Both are RoHS compliant and carry MSL 1 rating.

Q: Are cross-manufacturer substitutes (TE Connectivity, 3M) compatible with existing PCB designs for the 89006-116?

A: Yes, provided the PCB footprint accommodates the 30-position, 2.00mm pitch, 5-row header configuration. All substitute parts maintain this specification. Verify mechanical clearance for integrated guide features on the 3M MP2-H030-51P1-S-KR if space constraints exist.

Q: What is the significance of RoHS compliance for substitute part selection?

A: The original 89006-116 is RoHS non-compliant. The 89006-116LF (RoHS Compliant) and MP2-H030-51P1-S-KR (RoHS Compliant) meet current regulatory requirements for new product designs and markets with RoHS mandates. The 5223016-1 carries ROHS3 compliance. Selection depends on regulatory requirements for the end application.

Q: Can the 89006-116 be used in new designs, or must a substitute be selected?

A: The 89006-116 is classified as obsolete. For new designs, select an active substitute part. The 89006-116LF is the recommended choice for design continuity. For applications requiring enhanced current capacity or integrated mechanical features, the MP2-H030-51P1-S-KR is suitable.

Q: What packaging formats are available for these substitute parts?

A: The 89006-116LF and both cross-manufacturer substitutes (5223016-1 and MP2-H030-51P1-S-KR) are supplied in tube packaging. Verify packaging requirements for your procurement and assembly processes.
